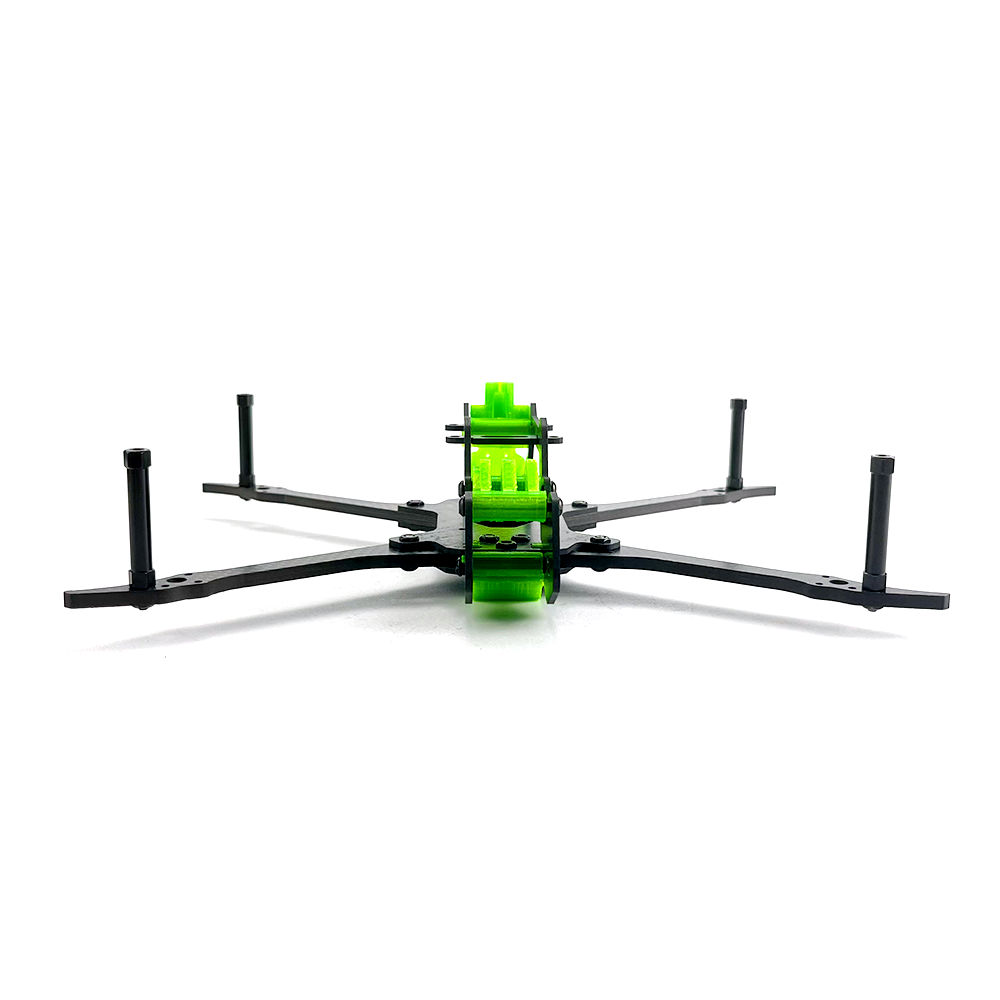

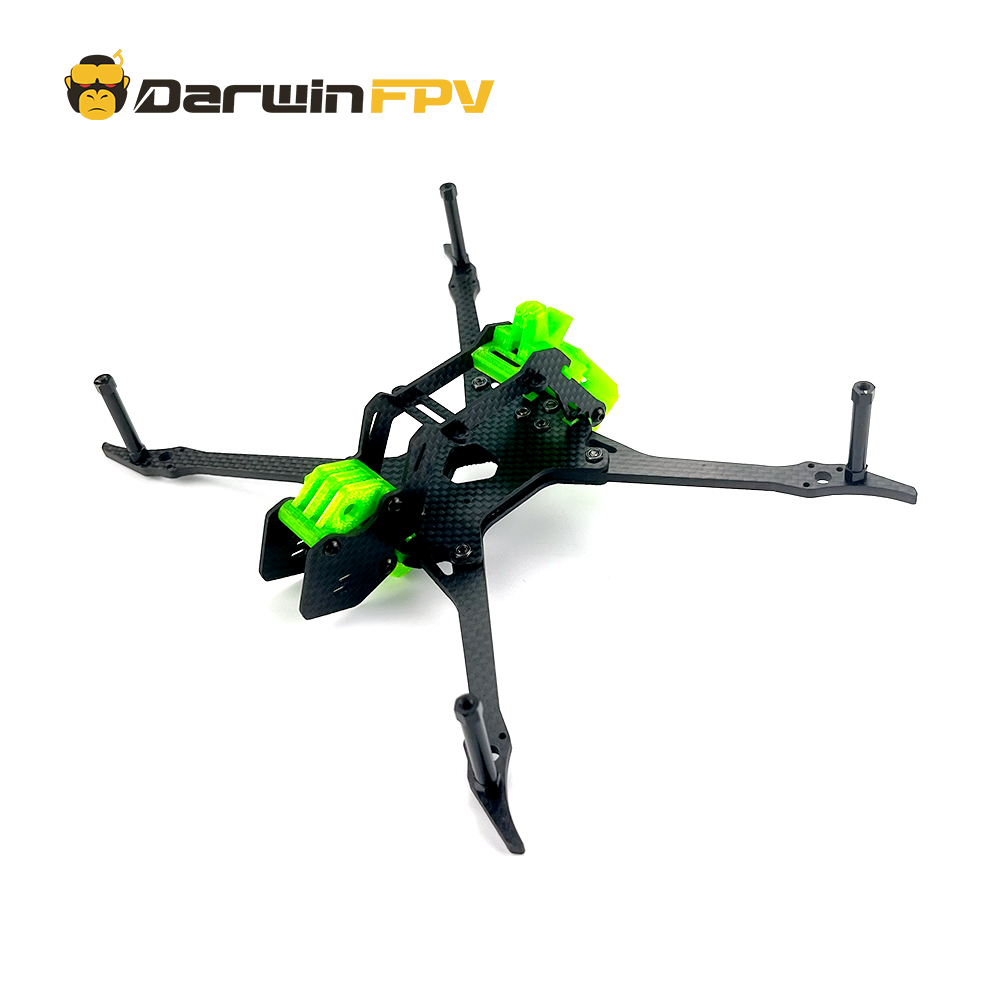

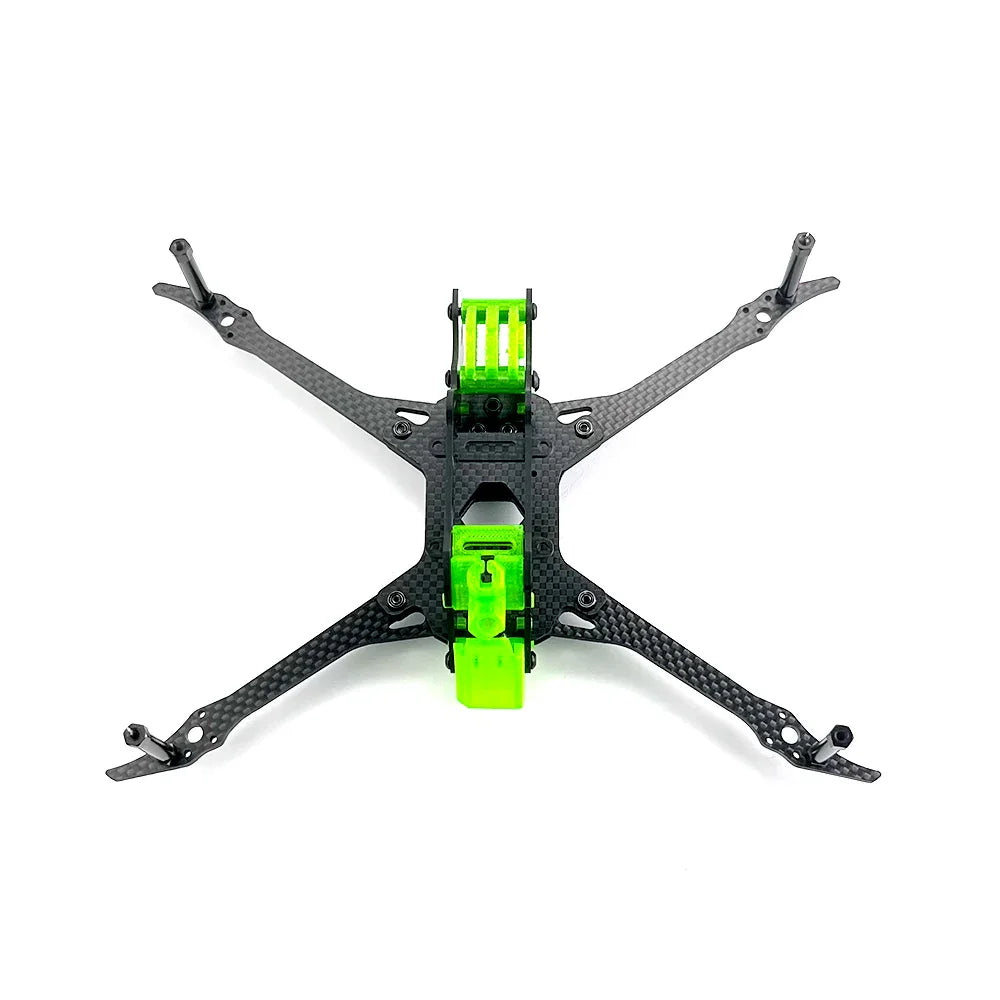

DarwinFPV HULK Waterproof Frame

HULK frame has many advantages such as quick release design, unique shock absorption and stronger design, easy to install, super hard, each carbon fiber part is sprayed, the body is beautiful and has a better surface for the frame Insulation, the HULK rack is suitable not only for the HULK AIO but also for the FPVCycle Whoop Stack Flight Controller 6S 45A ESC.

Features:

• The recommended motors: 2004/2006/2104/2105.5/2203/2204/2203.5/2204.5

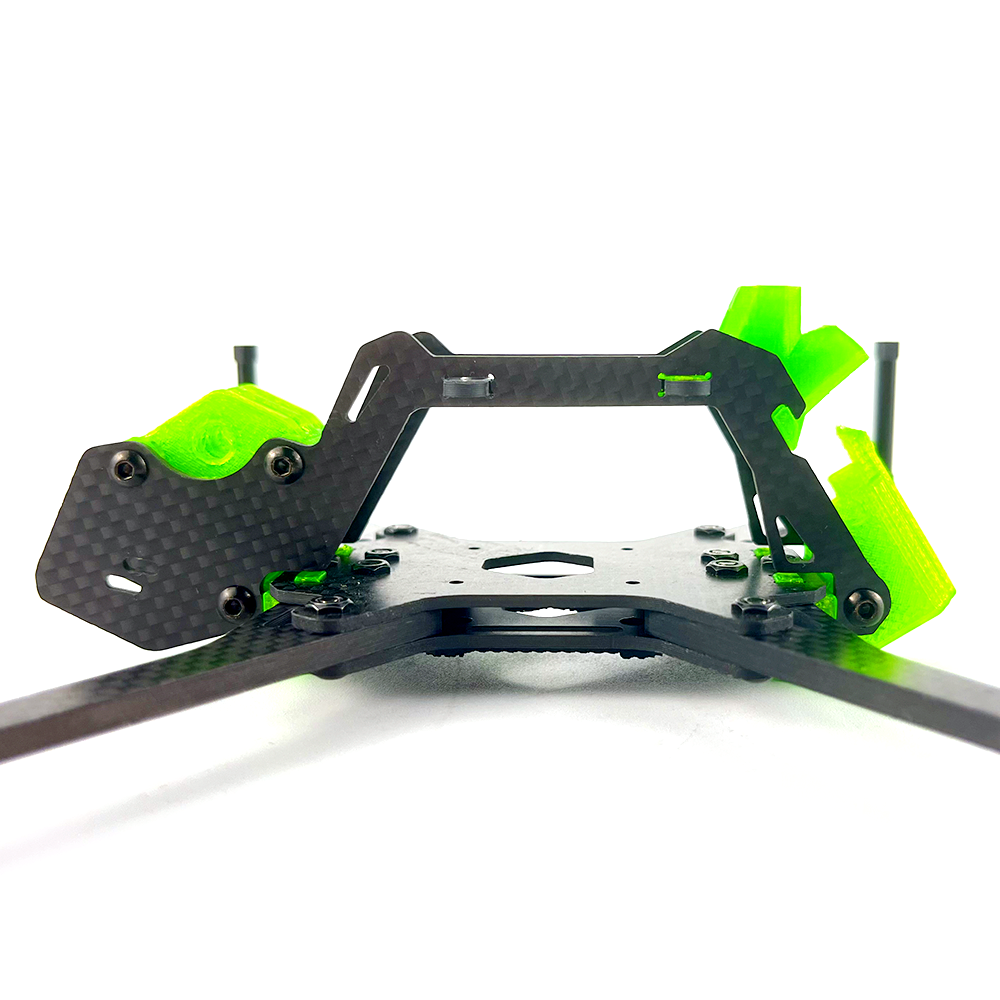

• Quick release design, loosen two screws, remove two screws to disassemble the side panel and the arm
•

• Unique shock-absorbing structure design reduces vibration and resonance
•

• More firm, widened at the joint of the arm
•

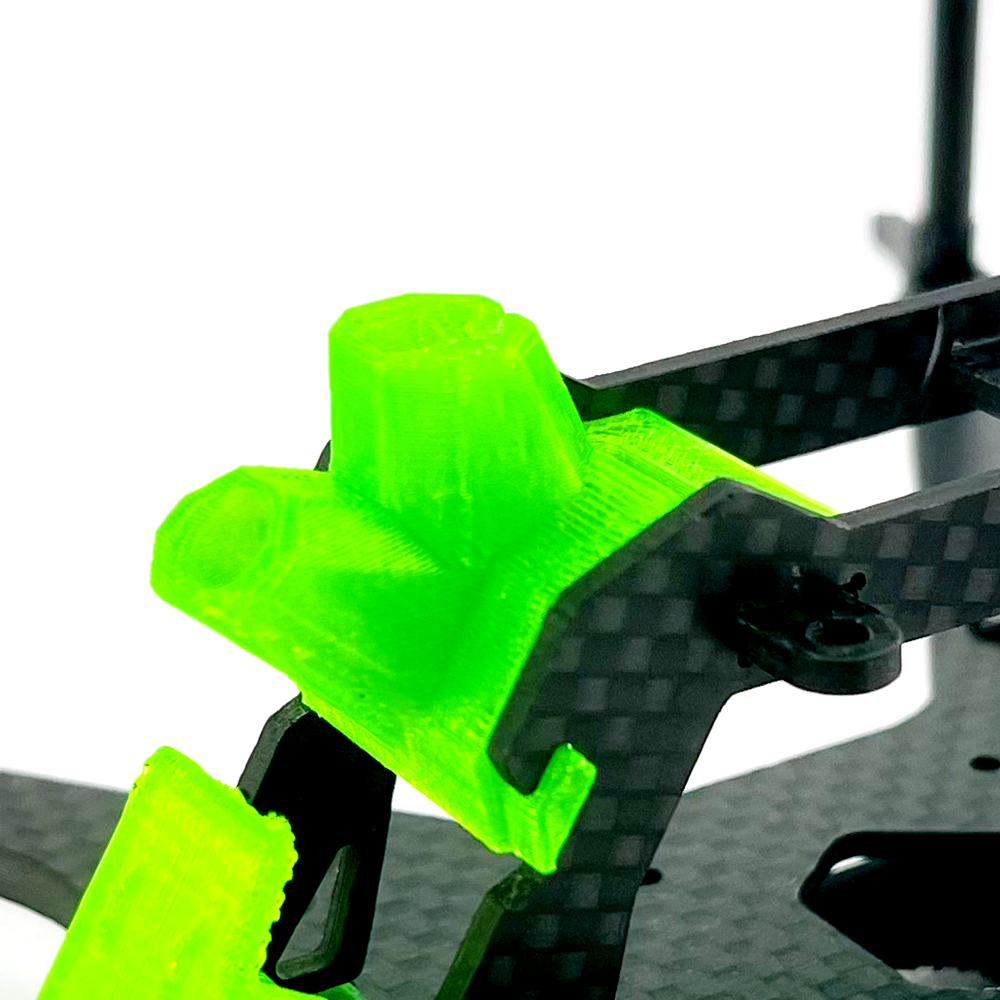

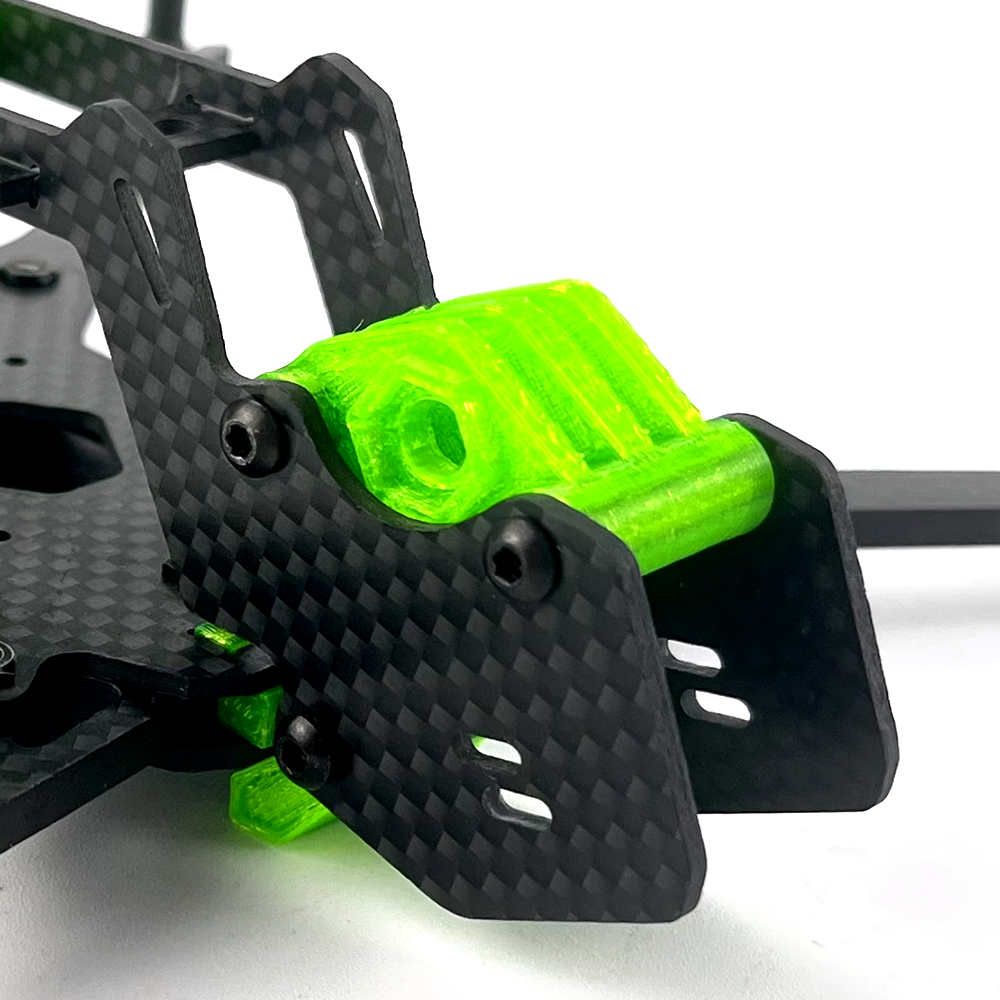

• Take pictures clearly, unique gopro installation position design
•

• M3 hole design, you can DIY, add lifting parts, etc.
•

• Stainless steel screw technology, anti-corrosion and anti-rust.

The recommended drones:4.9inch-5.2inch

The recommended batteries:4S 1500mAh 、6S 1300mAh

Specifications:

Wheelbase: 220m

VTX mounting holes:30.0mm x 30.0mm

Stack/AIO mounting holes:25.5mm x 25.5mm

Weight (inculde print):92.5g

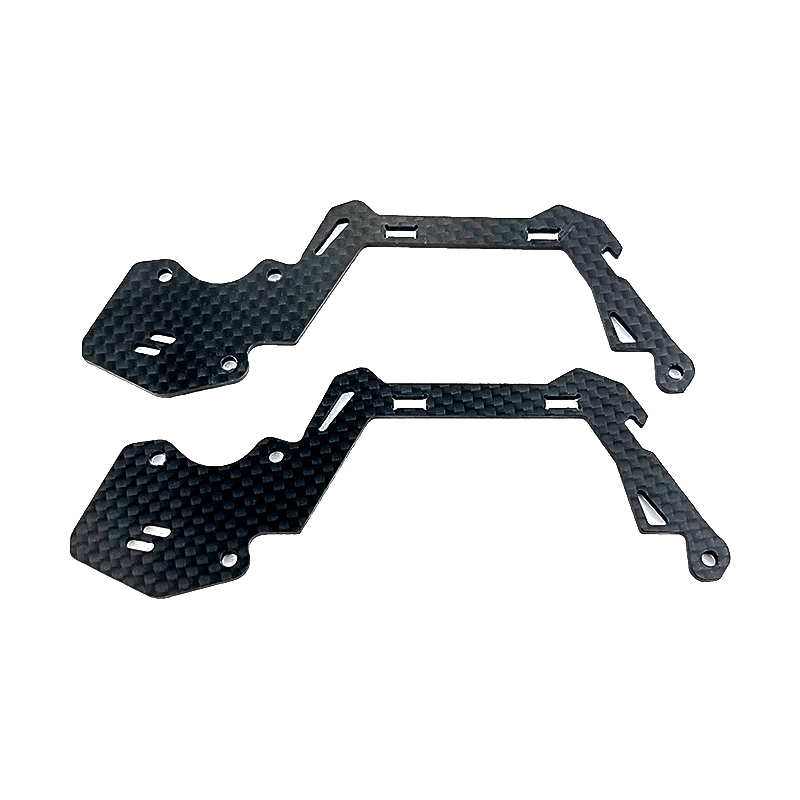

Side plate:2mm

Bottom plate:2mm

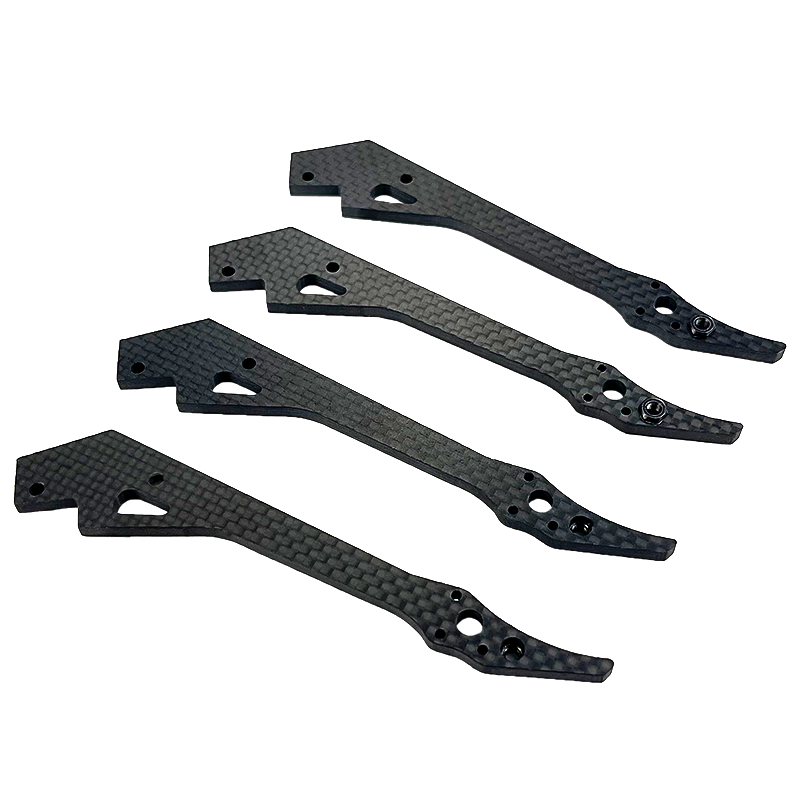

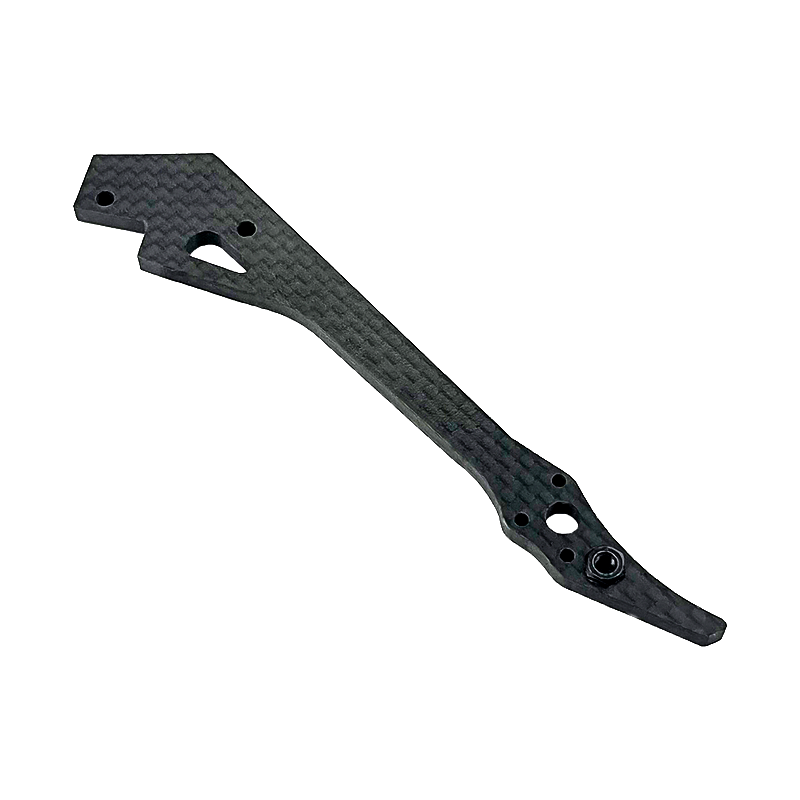

Arms: 4mm

VTX fixing plate:2mm
