DarwinFPV

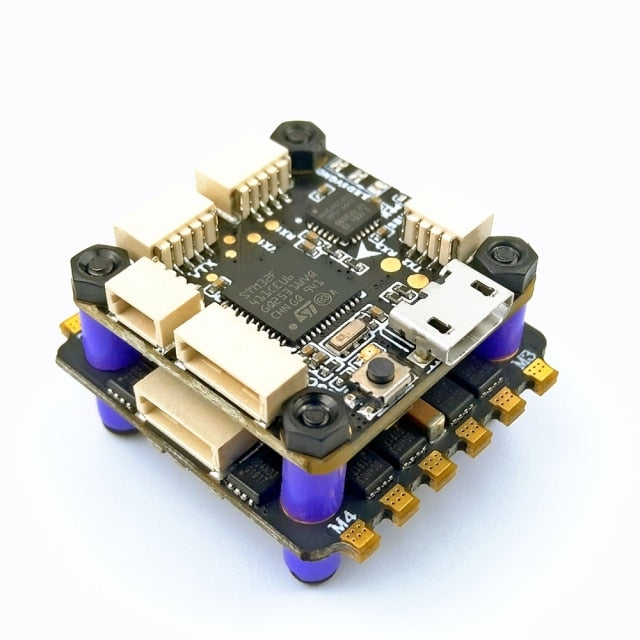

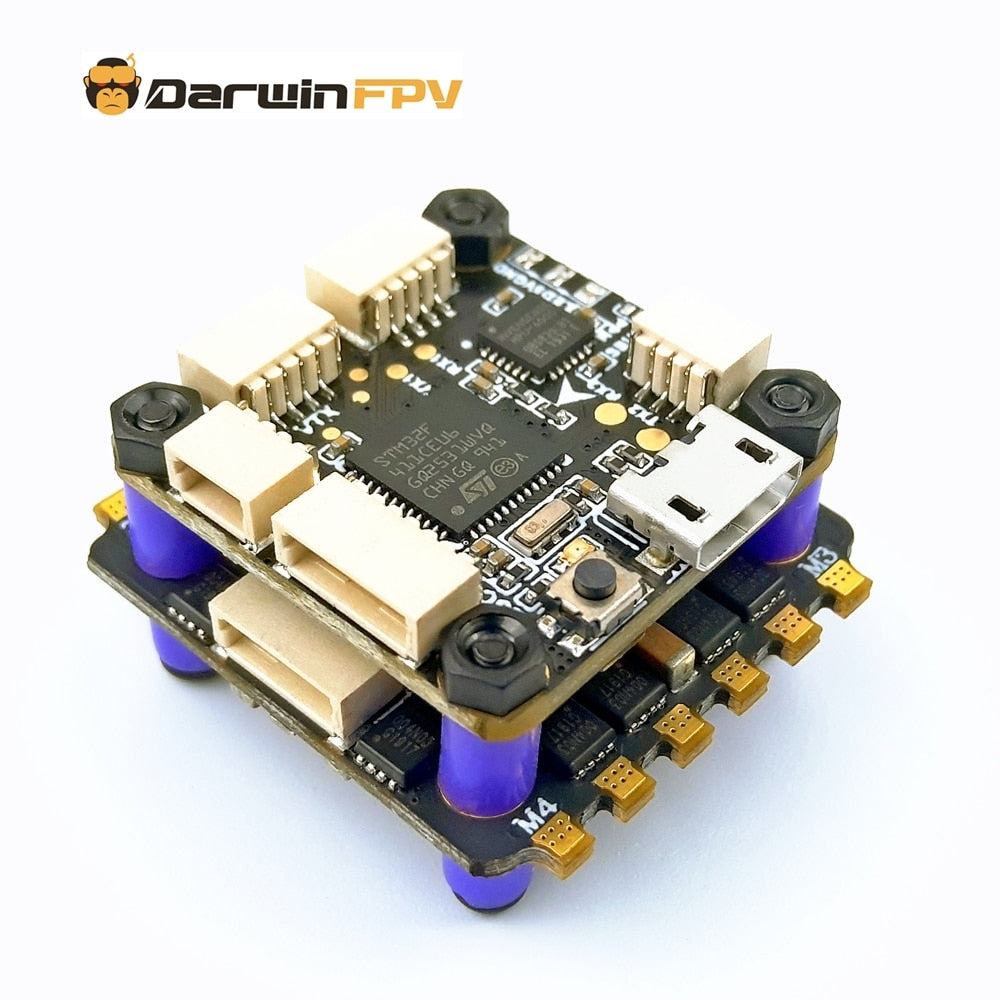

DarwinFPV fpv ESC flight controller Betaflight F4 FC 30A 2-6S BLHeli_32 4in1 Dshot1200
Color:ESC
DarwinFPV Betaflight F4 Flight Controller and 2-6S BLHeli_S 4in1 ESC Stack with 30A continuous current . 30A ESC& FLIGHT CONTROL-This ESC is very easy to solder, and the flight control has multiple ports, no soldering, just plug in the port line.

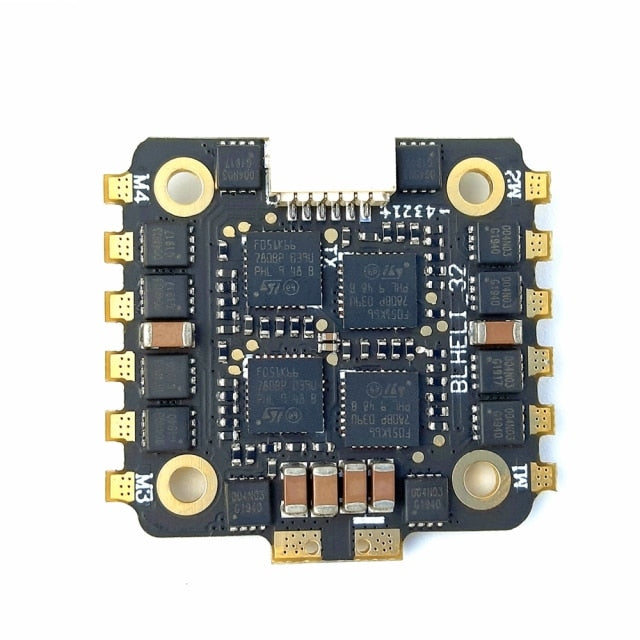

F4-30A stack
- Continuous current: 30A
- Peak current: 35A (10S)
- Lithium battery section number: 2-6S
- BEC: NO
- ESC weight: 5.1g
- Firmware: BL_32
- Maximum support throttle signal: DSHOT 1200
- Mounting hole: M2 20.0 * 20.0mm

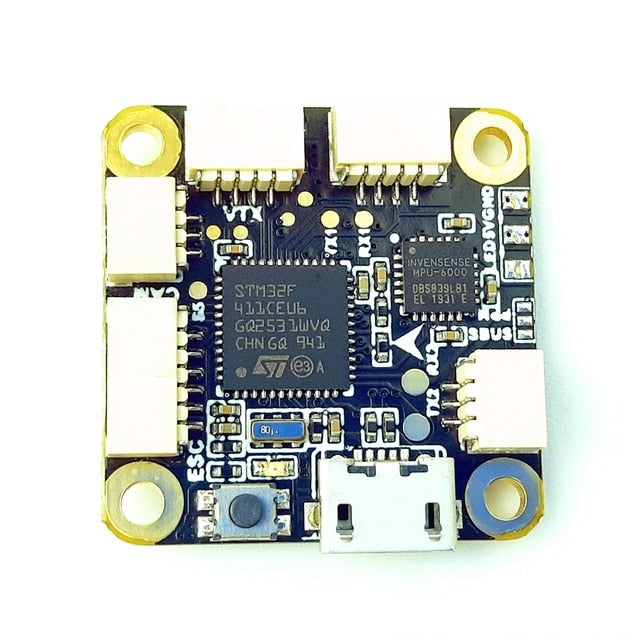

F4 Flight control
- Lithium battery section number: 2-6S
- BEC: 5V, 3.3V
- MCU: STM32F411
- Gyro: MPU6000
- OSD: AT7456E
- Firmware: MATEKF11
- Weight: 3.6g
- Mounting hole: M2 20.0 * 20.0mm
Manual for ESC flight controller Betaflight F4 FC 30A 2-6S BLHeli_32 4in1 Dshot1200
