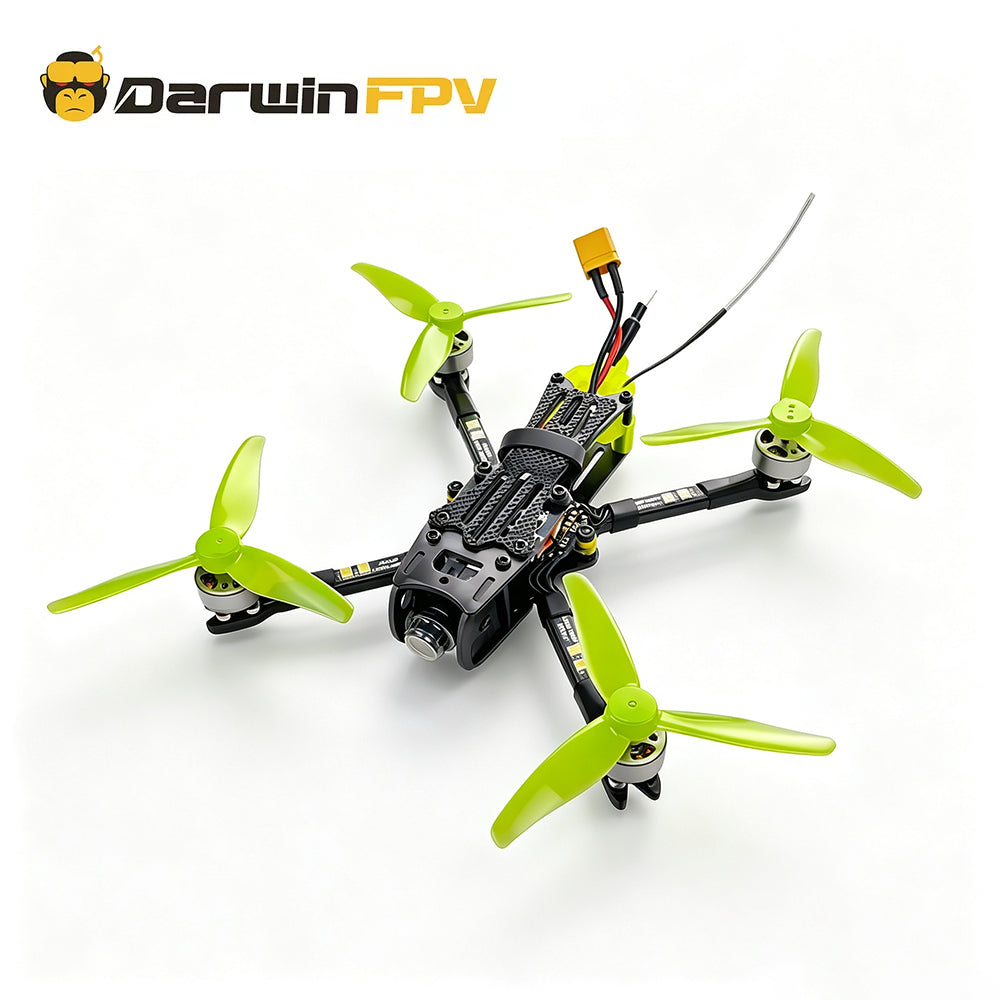

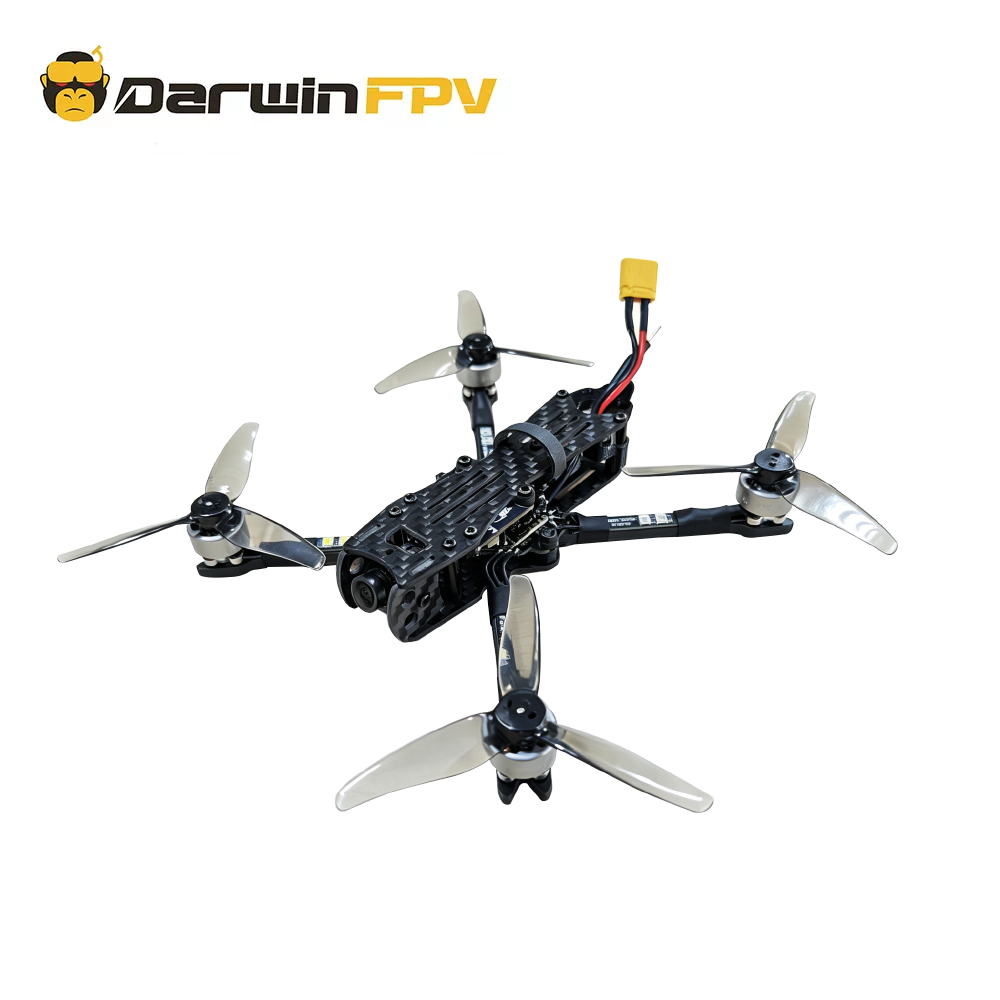

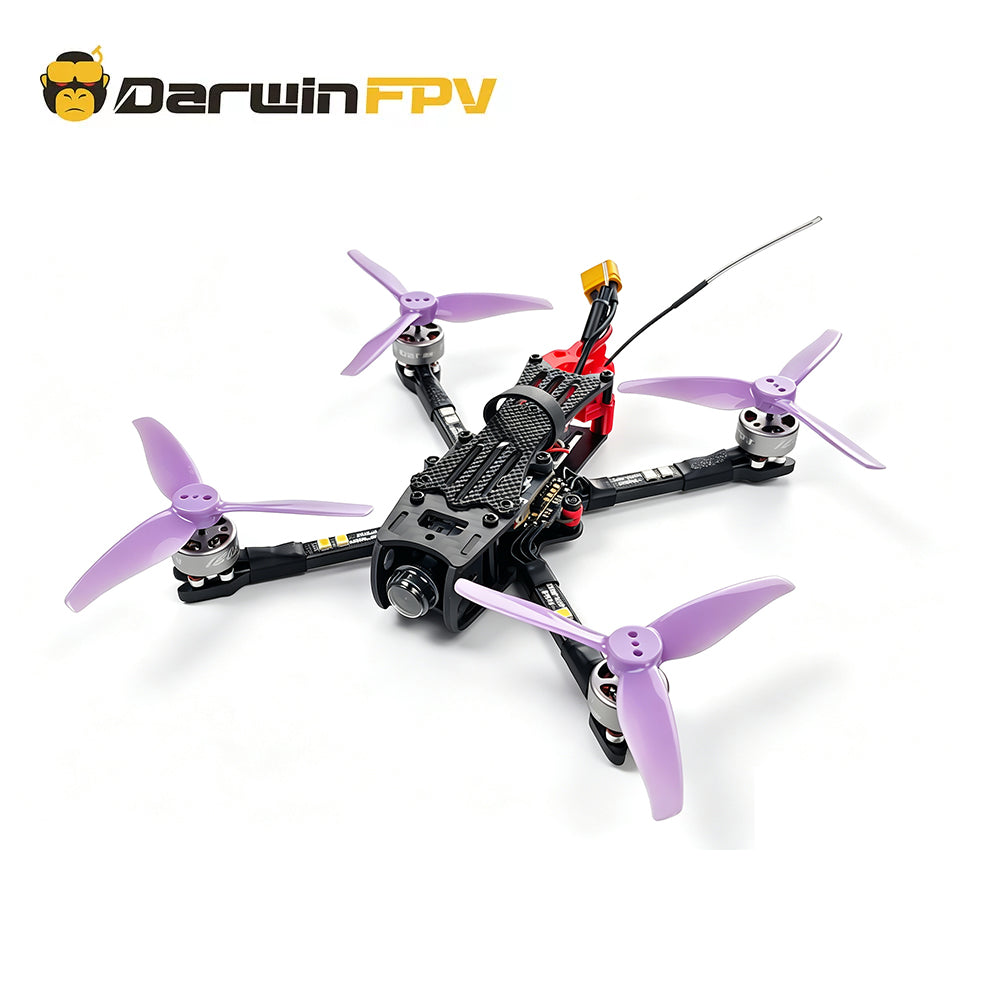

DarwinFPV BabyApe 3''

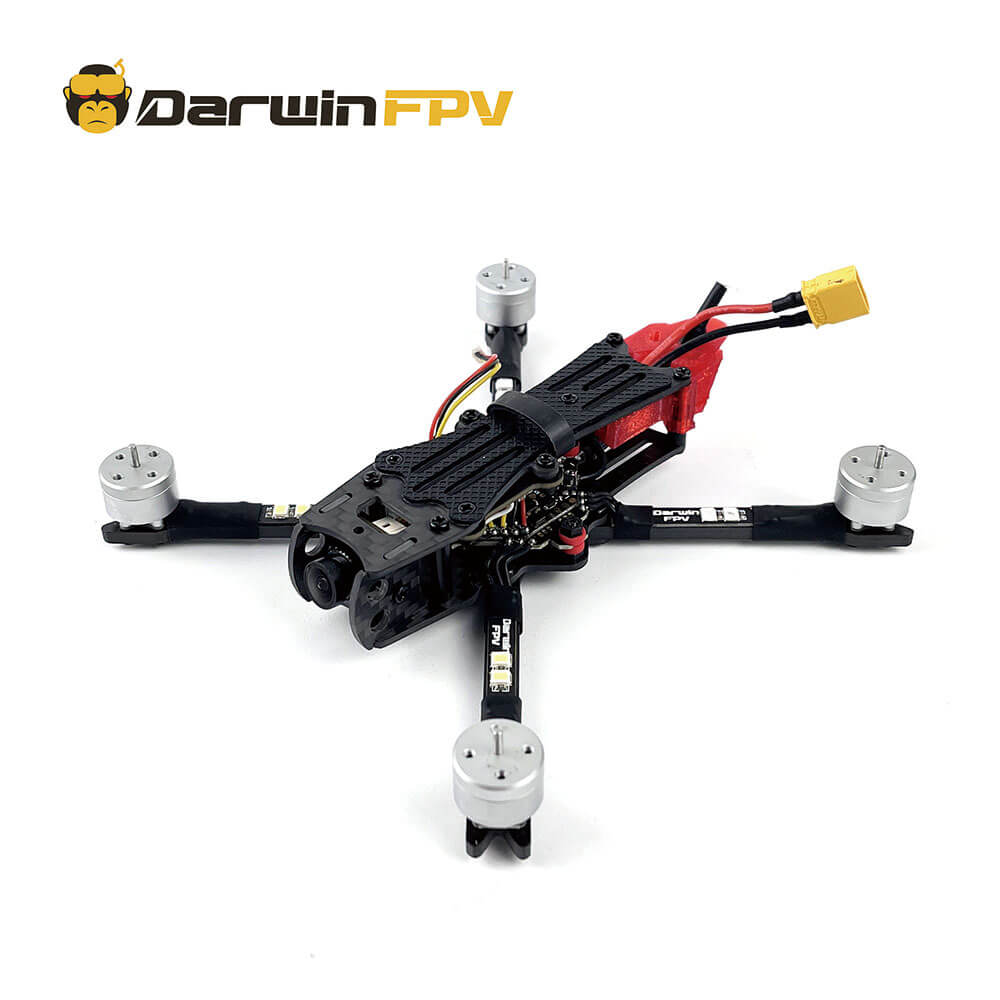

Darwin Baby Ape has been loved by many pilots as soon as it was published. In order to design a better FPV drone, we have upgraded the Baby Ape based on the pilots' feedback and launched the BabyApe Pro V2.

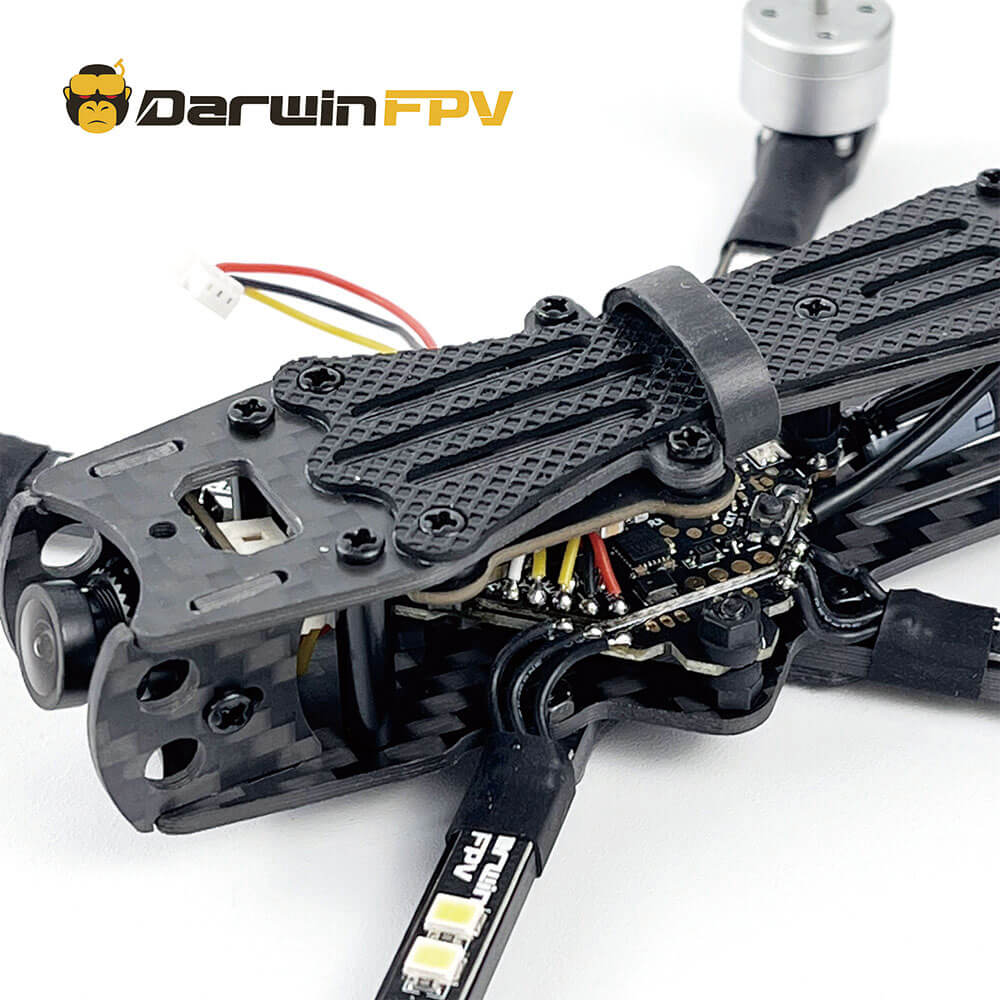

We made seveal upgrades from the frame. First of all, nylon standoffs is upgraded to aluminum alloy standoffs, which strengthens the frame and stables structure.
Second, We added the receiver fixing bracket.

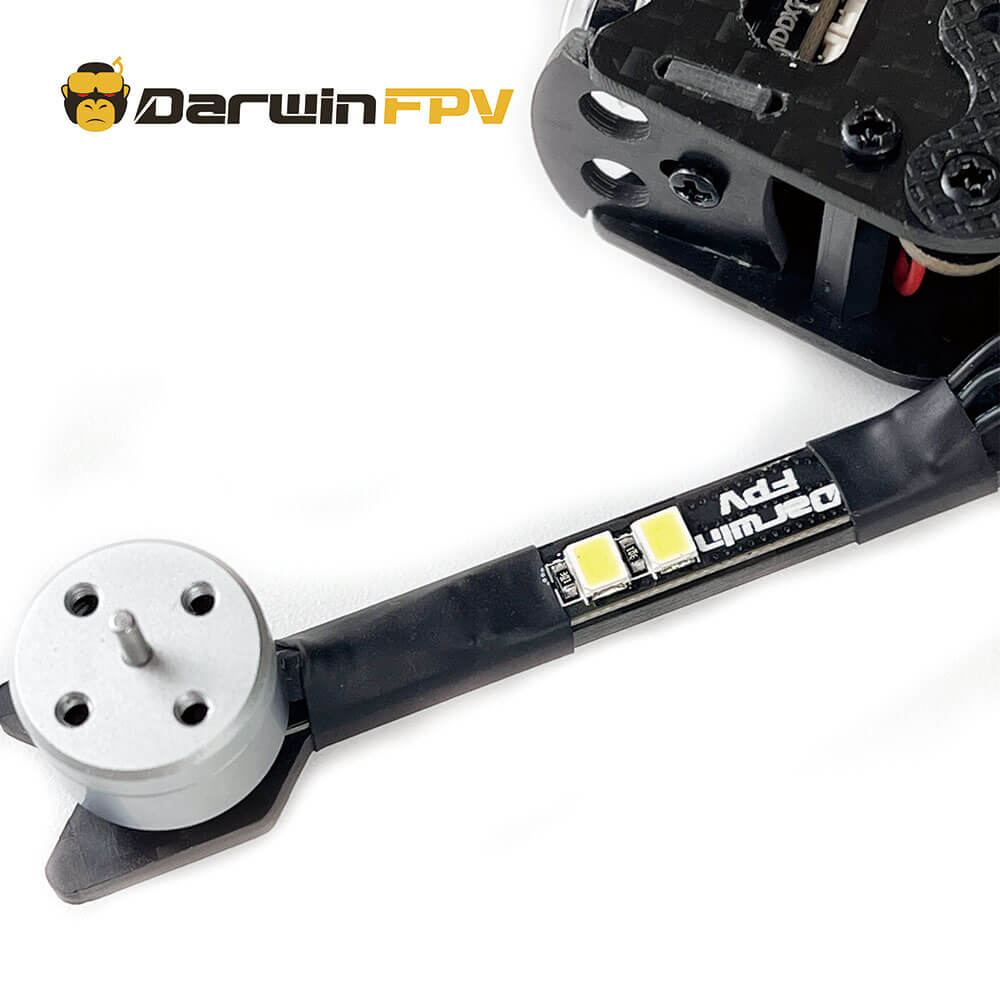

Third, we upgraded the arms. The arms are upgraded from 4 individual arms(2.5mm thicness) to 2 integrated arms(3.0mm thickness). It is more easy to disassemble, sturdy and durable.
Last, the V2 version only needs 4 screws to fix, and the arm can be replaced by removing 2 screws without removing the whole drone.
Notice: !!! The PNP drone comes without battery, charger, receiver or remote control.
Specifications:

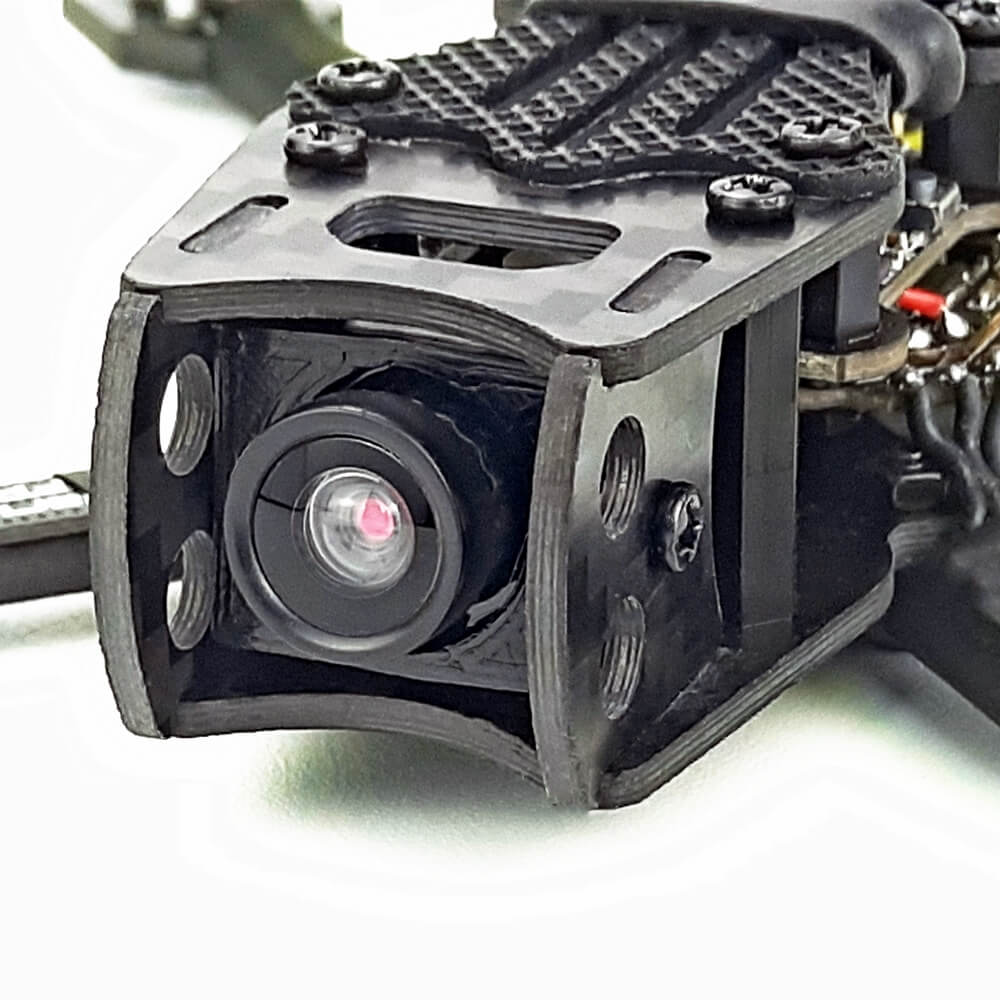

| Camera |
CADDX ANT Camera (Baby Ape Pro) Resolution:1200TVL mage Sensor: 1/3" CMos Sensor Input: DC 3.7-18V TV System: PAL/NTSC
|
| 1104 4300KV 2-3S Brushless Motor |
KV: 4300KV Lipo cell: 2-3S |
| AIO 4 IN 1 15A BLHeli_S ESC |
Input voltage: 1-3SLiPo Continuous current: 15A Pe ak current:17A (10S) BEC output: no Main control chip:EFM8BB21 Firmware upgrade: Supports Dshot600/Oneshot125 MOS: 3*3 |

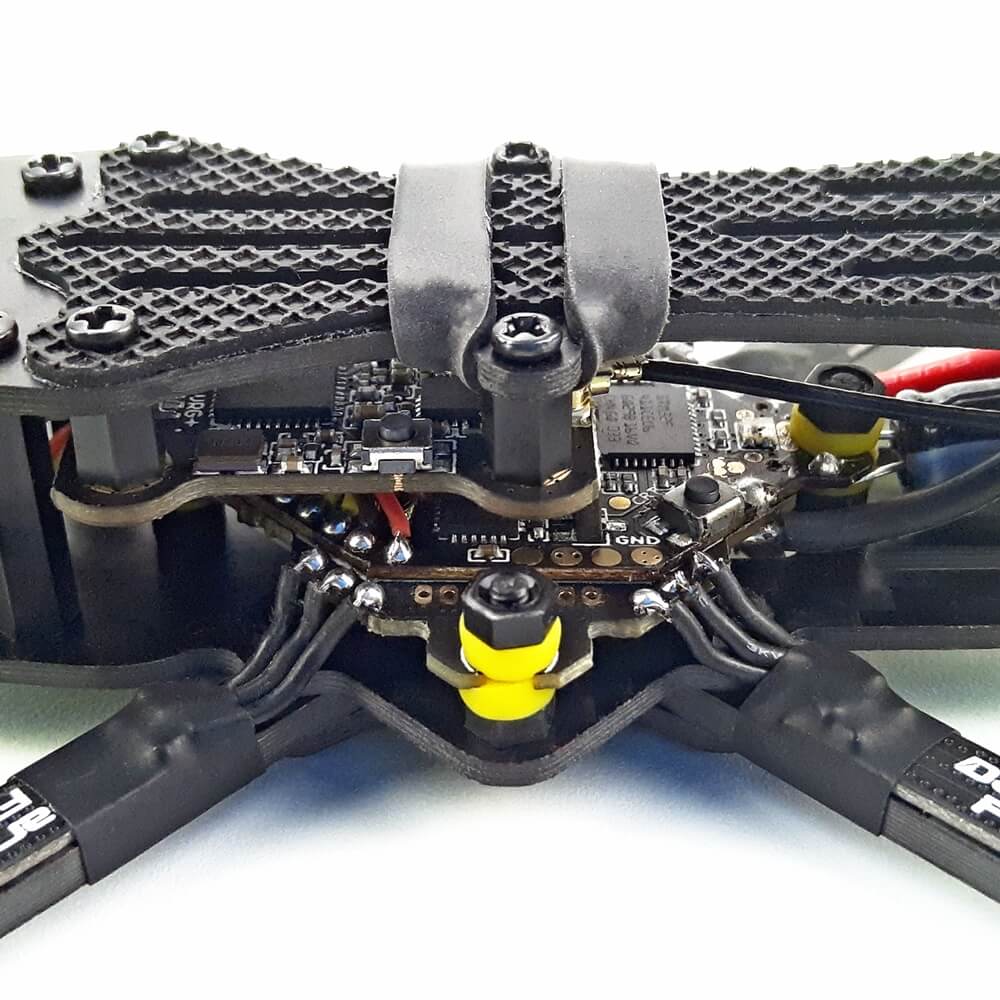

| F411 AIO Flight Controller |
Main control chip: STM32F411 Integrated OSD PPM/DSM/IBUS/UAR share: UART1-RX IMU: MPU6500 (SPI) Mounting holes distance: 25.5*25.5mm Supports Betaflight firmware |
| 5.8G 40CH 0mW/25mw/200mw switchable VTX |
Supports TBS SmartAudio Transmitting power: 0mW/25mW/100mW/200mW switchable Channel: 40CH Full video format: NTSC/PAL Input voltage: 7V~24V Power dissipation: +12V/600MW Size: 25×20×6mm Weight: ≤3.2g (except antenna) With copper pipe mini antenna (ipex antenna) |
| 3016 3-blade propelle | Mounting hole: 1.5mm Center thickness: 5.5mm Quantity: 2 pairs Weight: 1.18g a pair |
Notice ! ! !
Please note the color when ordering Baby Ape 3"/Pro RPT, if there is no note, we will randomly select the color. Hope you can understand that.

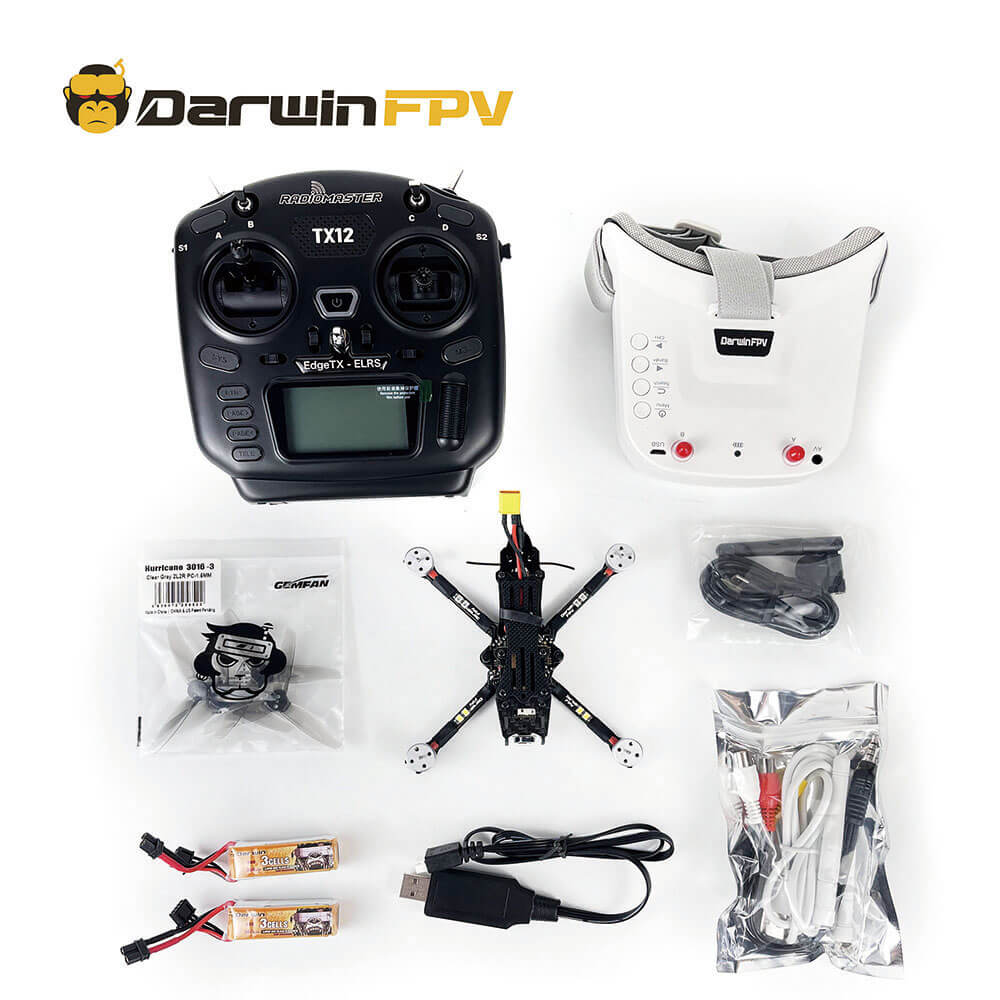

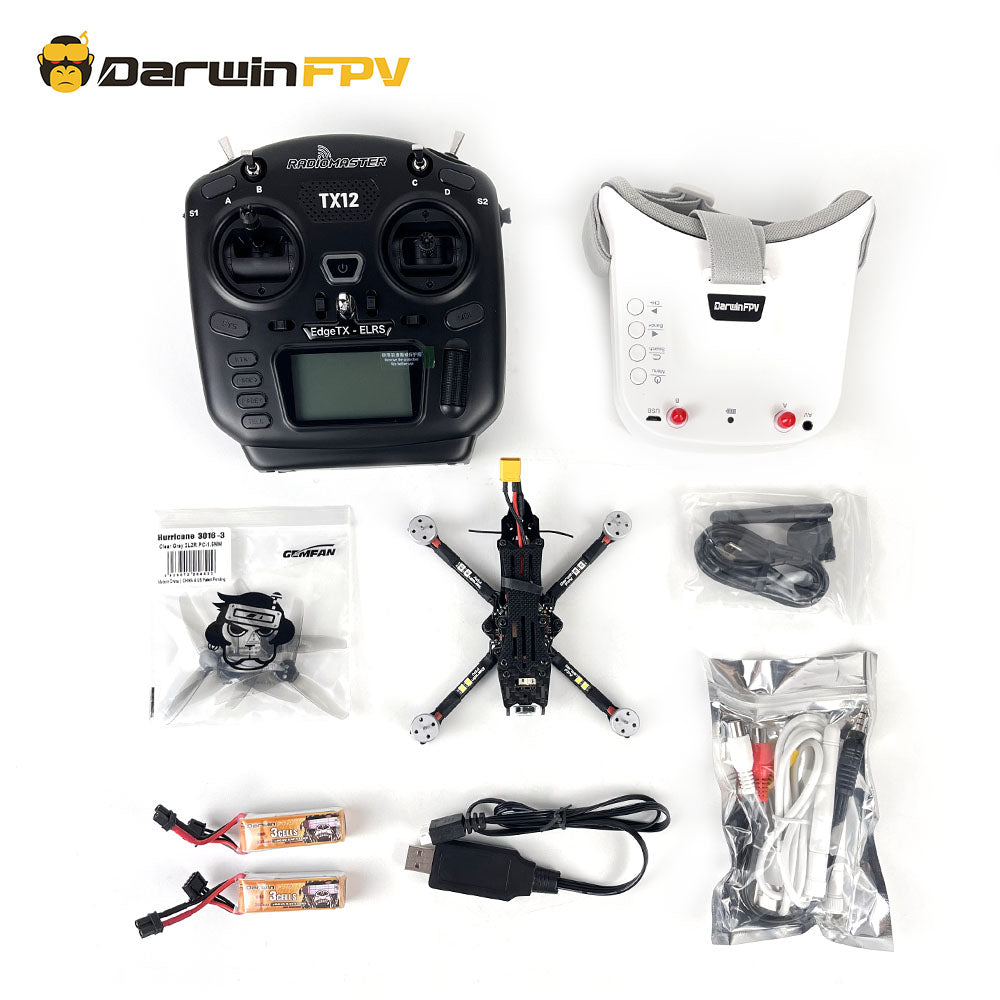

About the RTF shipping: Because the battery needs to be shipped through a specific shipping channel, if you purchased the battery and other products at the same time, we may split the order into two packages and ship through two channels (no additional shipping charges, only possible arrival time is different).
