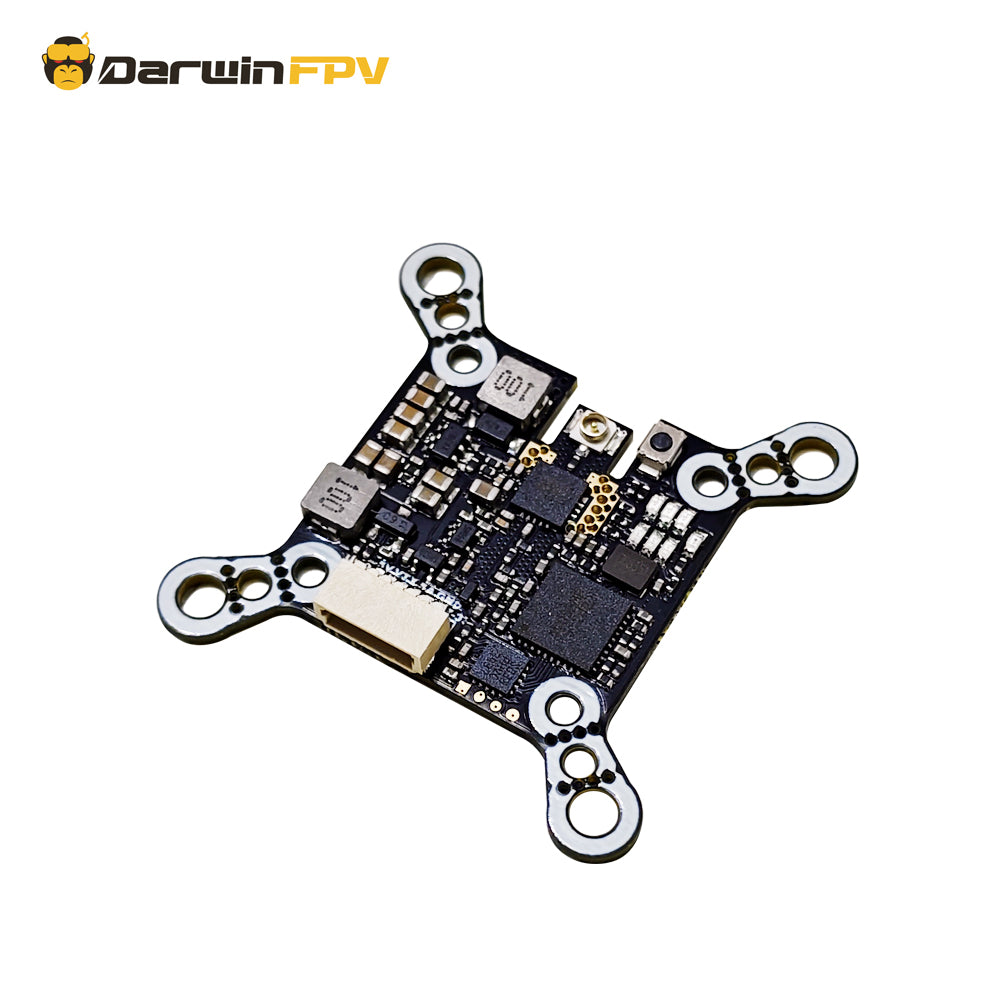

DarwinFPV 5.8G 40CH 1200mW Baby Ape VTX

The DarwinFPV 5.8G 1200mW VTX is a high-performance device specifically engineered for medium to long-range FPV flights, delivering 5KM long-distance transmission in real-world tests.
Compared to standard VTX, its innovative "No Burnout" PA protection technology ensures the chip remains undamaged even if the antenna is accidentally disconnected during operation. This breakthrough feature eliminates the risk of chip burnout.
Unlike other VTX with the same power output, it employs a 3oz copper-thick PCB cooling architecture. This design efficiently dissipates heat, preventing power drops due to overheating even during prolonged full-power operation. Say goodbye to performance degradation from thermal throttling and enjoy consistent, reliable transmission throughout your flight sessions.

Features

1.With 1200mW transmit power, enjoy stronger penetration, stabler video feed, and longer transmission range;
2.Featuring a rugged military-grade power amplifier chip, the transmitter prevents chip burnout even without an antenna ;
3.The advanced 3oz copper-thick PCB design delivers superior heat dissipation, eliminating the need for extra heatsinks while maintaining full-power output during prolonged flights. Say goodbye to thermal throttling!
4.Equipped with an internal dual-stage filter circuit, it reduces 90% screen flicker interference, ensuring crystal-clear, artifact-free video reception in high-electromagnetic environments.
5.Supports 7-33V wide voltage input, featuring surge protection and over-temperature safeguards to maintain stable power supply in extreme conditions like high-voltage setups or sudden voltage spikes.

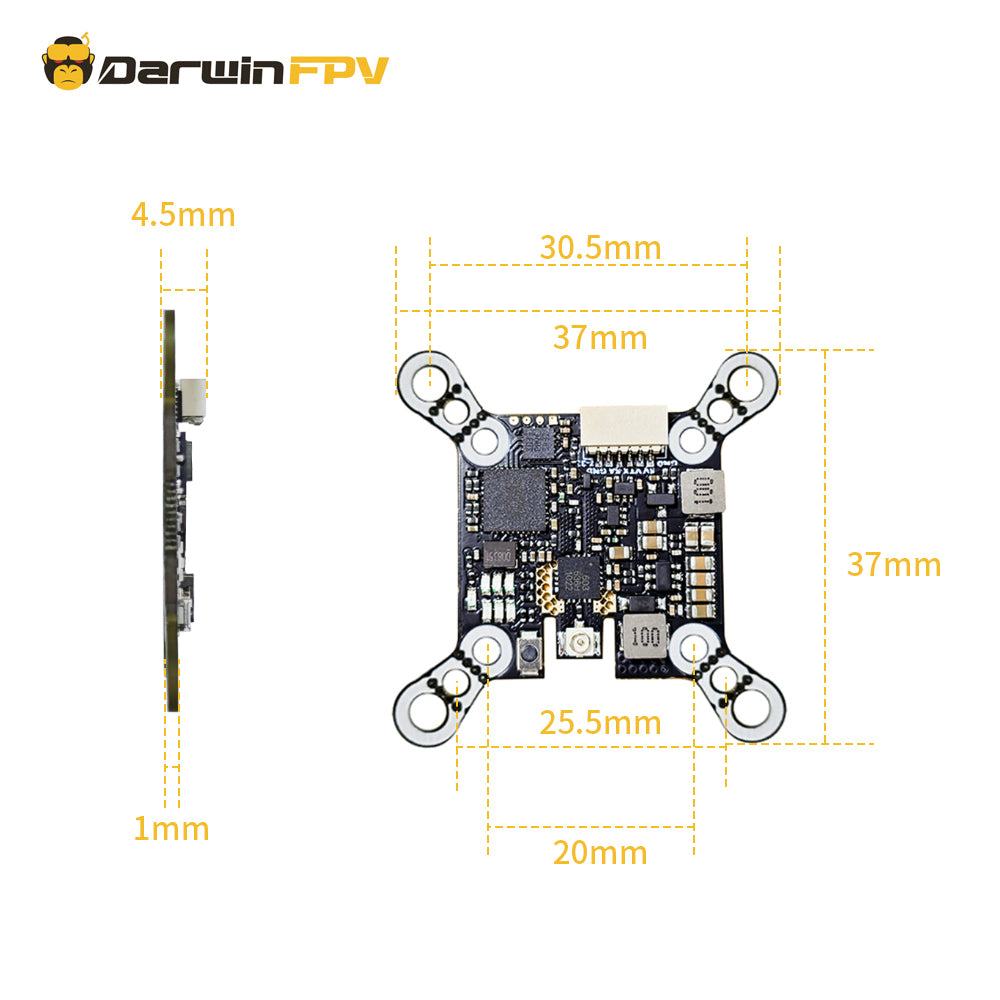

6.Ultra-compact and lightweight, this VTX offers tri-mode mounting compatibility (20x20/25.5x25.5/30.5x30.5mm) – perfect for toothpick , freestyle , and long-range across diverse FPV scenarios.

Packing List

1 x DarwinFPV 5.8G 1.2W VTX
1 x 40mm VTX Cable(Single head SH1.0 6P)
1 x Sticker
1 × 5.8G-IPEX1/U.FL-RF113-80mm Copper Tube Antenna
