DarwinFPV HULK 2204.5 1750KV 2450KV Brushless Waterproof Motor

Sale price$24.99
Style:2204.5 1750KV
Number:1PCS
Quantity:

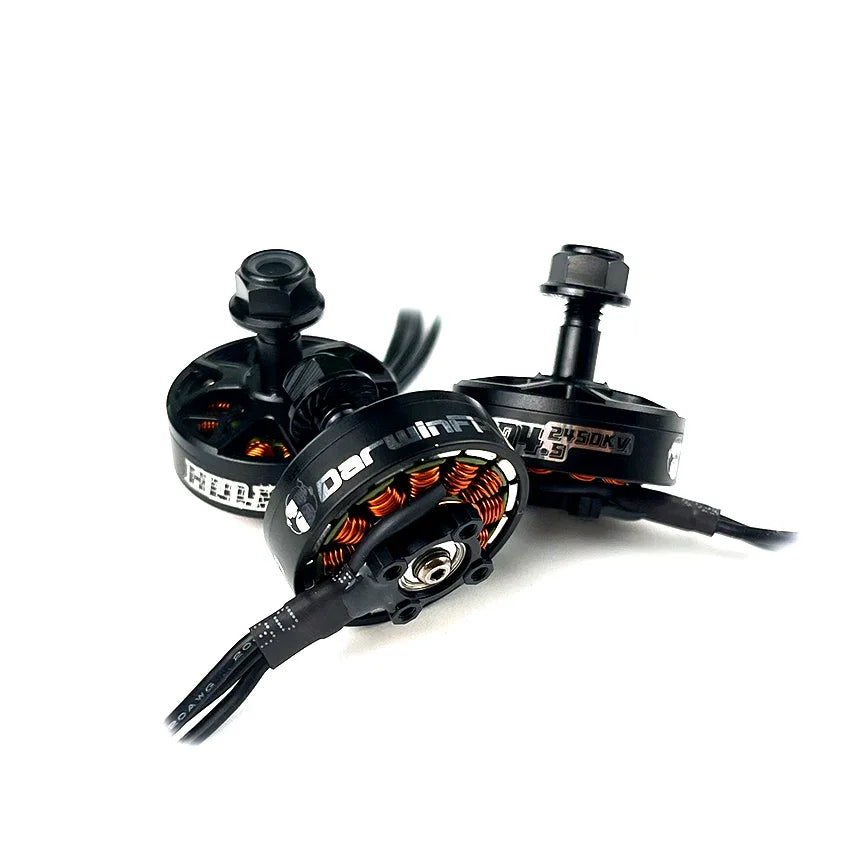

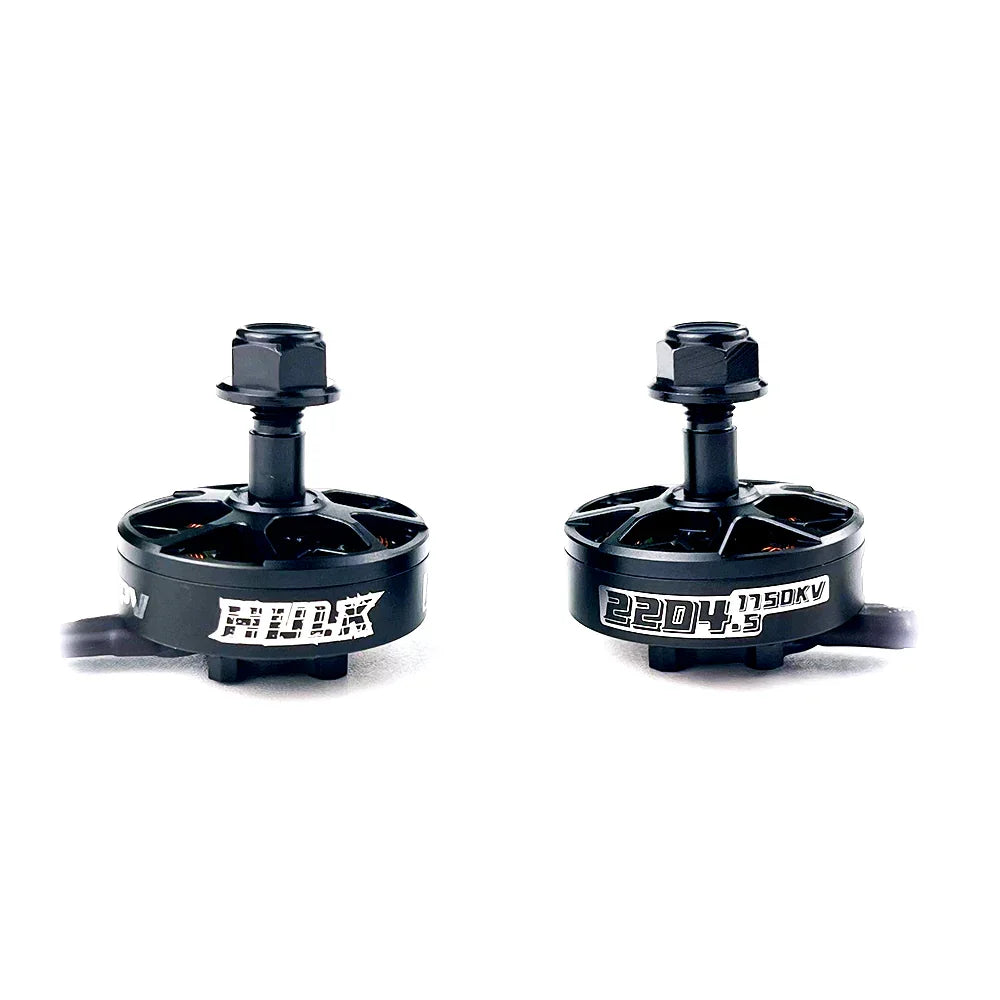

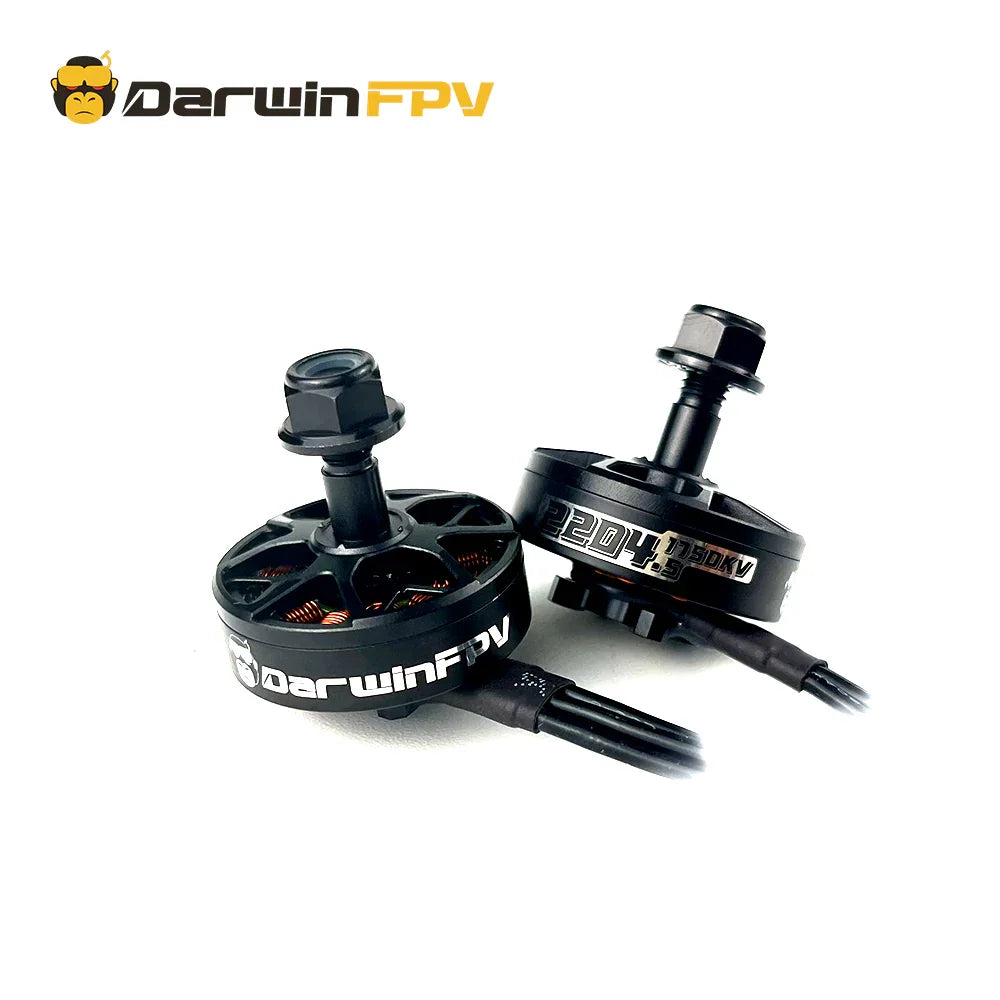

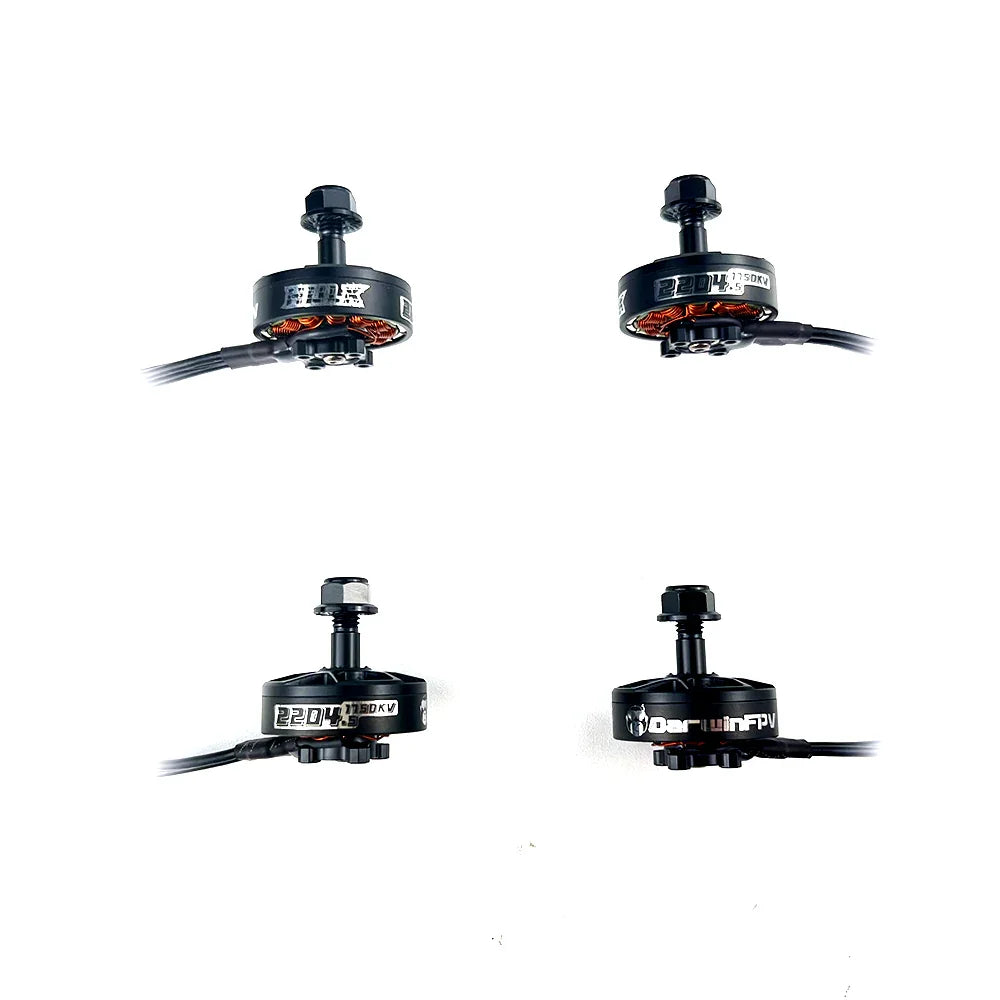

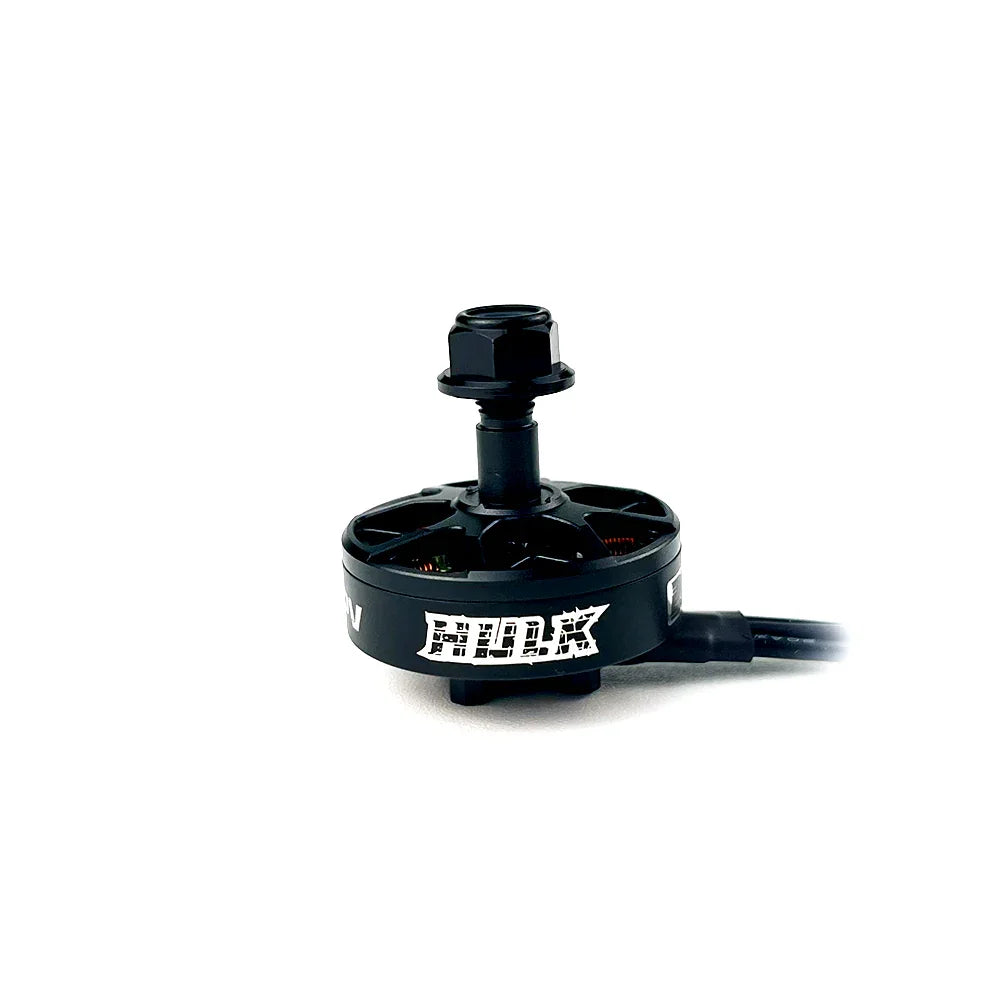

Hulk 2204.5 blushless motor is comes with more more torque and more power. The bearings are designed in stainless steel, and each part is covered with Conformal Coating, and then features the structural design of the casing, which greatly improves the dustproof and waterproof performance and life of the motor.

 Features:

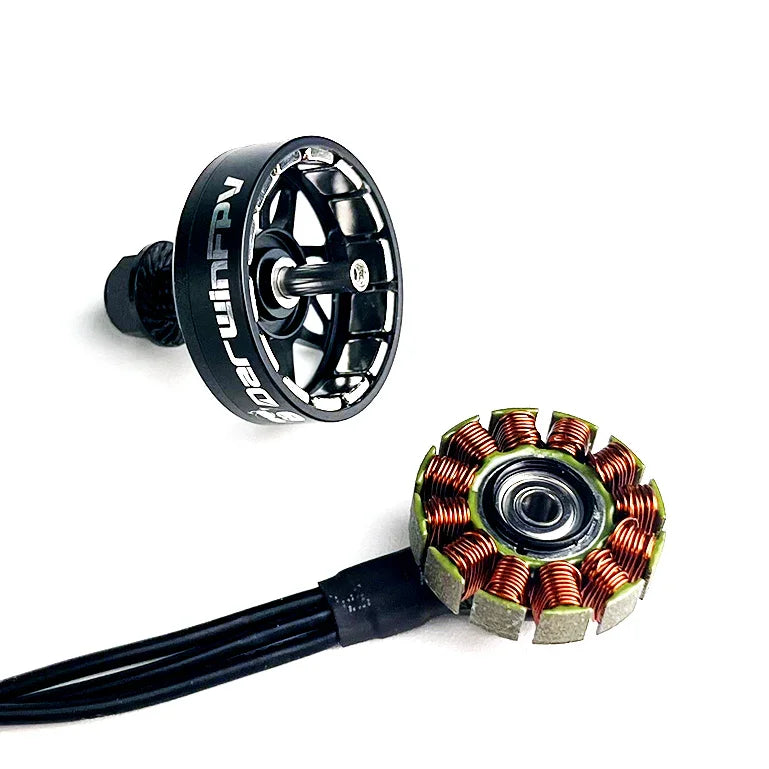

Waterproof and dustproof: stainless steel bearing, three-proof paint treatment, structural design of the shell, can better protect the bearing from sand and rain interference, and improve the service life of the bearing.

Safe and reliable: M5 shaft design, can lock the propellers more securely.

Powerful: The N52H magnet design is used to ensure continuous output while ensuring power.

Specifications:

HULK 2204.5 1750KV  Blushless Motor

KV: 1750KV

Configuration: 12N14P

Stator Size:  22*4.5mm

Magnet: N52H ARC

Shaft(out) Diameter: 5mm

 Size: 26.9mm x 28.8mm

Lead Wires: 95mm

No. of Cells (LiPo) 6s

Max Continuous Power: 571.2w

Max Current : 23.8A

Mounting Holes:12mm

Weight : 21g

Suitable Quadcopter:3-4”whoop FPV, 4-5″Toothpick & Long Range FPV

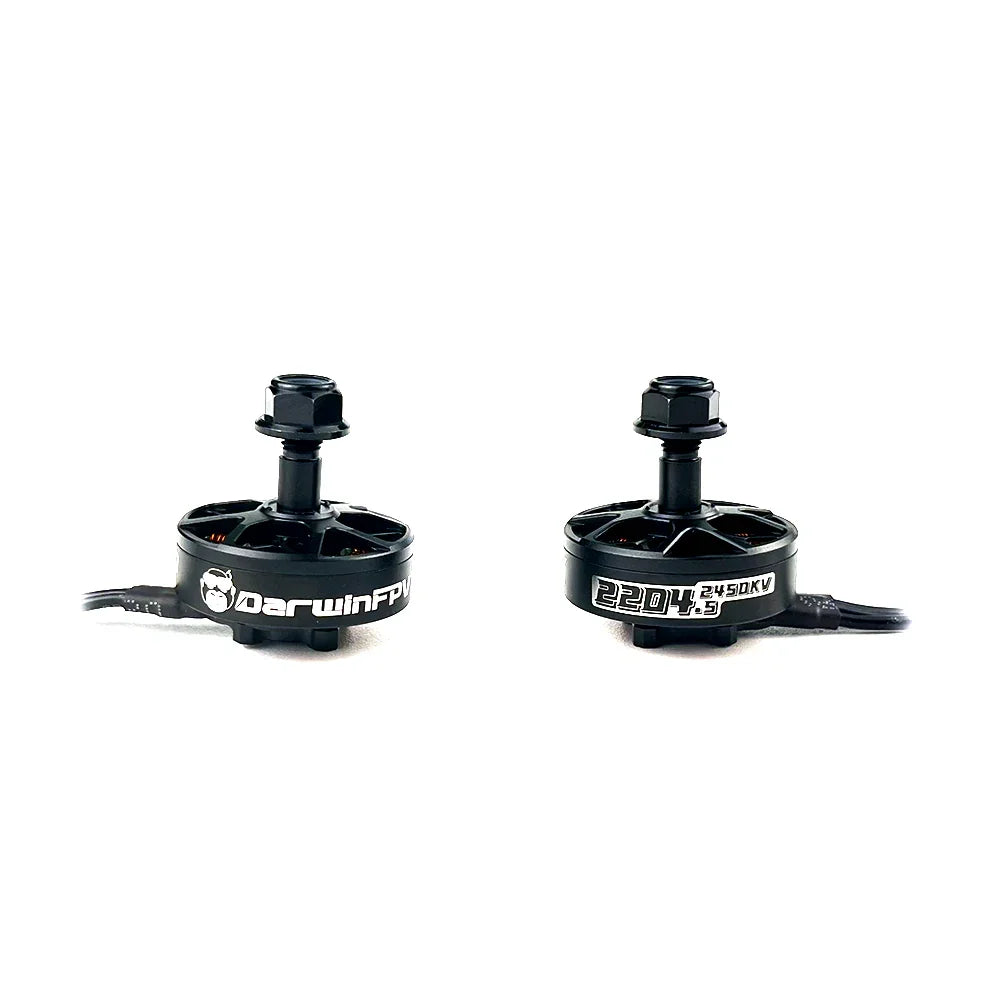

HULK-2204.5-2450KV Blushless Motor

 KV: 2450KV

Configuration: 12N14P

Stator Size:  22*4.5mm

Magnet: N52H ARC

Shaft(out) Diameter: 5mm

Size: 26.9mm x 28.8mm

Lead Wires: 95mm

Noof Cells (LiPo) : 4s

Max Continuous Power: 432w

Max Current : 27A

Mounting Holes:12mm

Weight : 21g

Suitable Quadcopter:3-4”whoop FPV4-5″Toothpick & Long Range FPV
