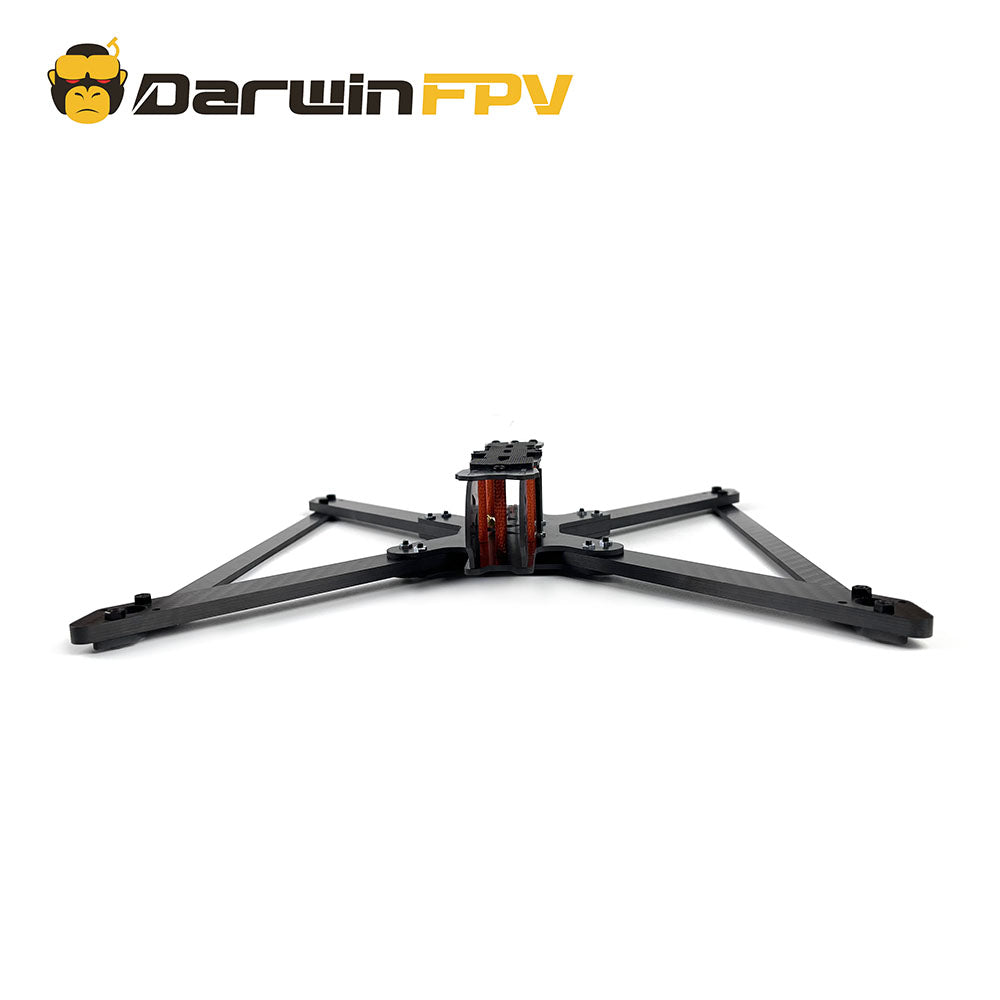

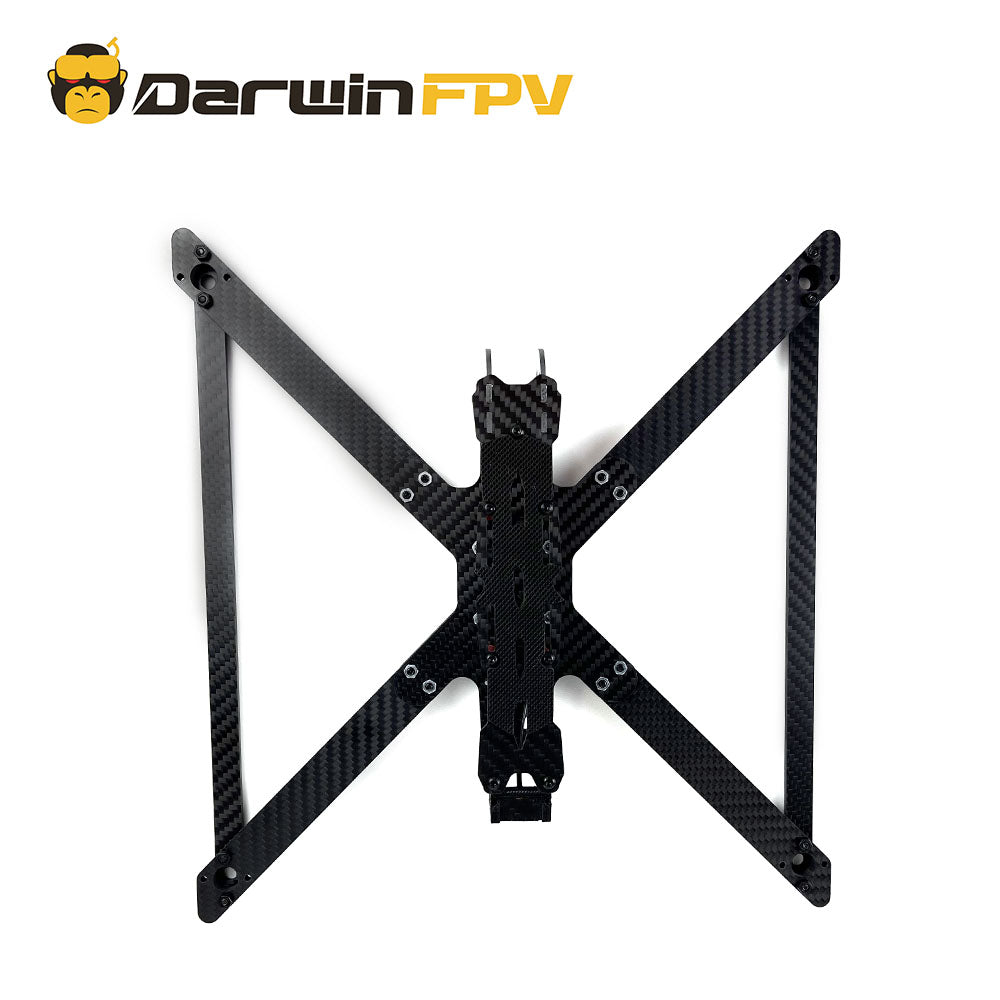

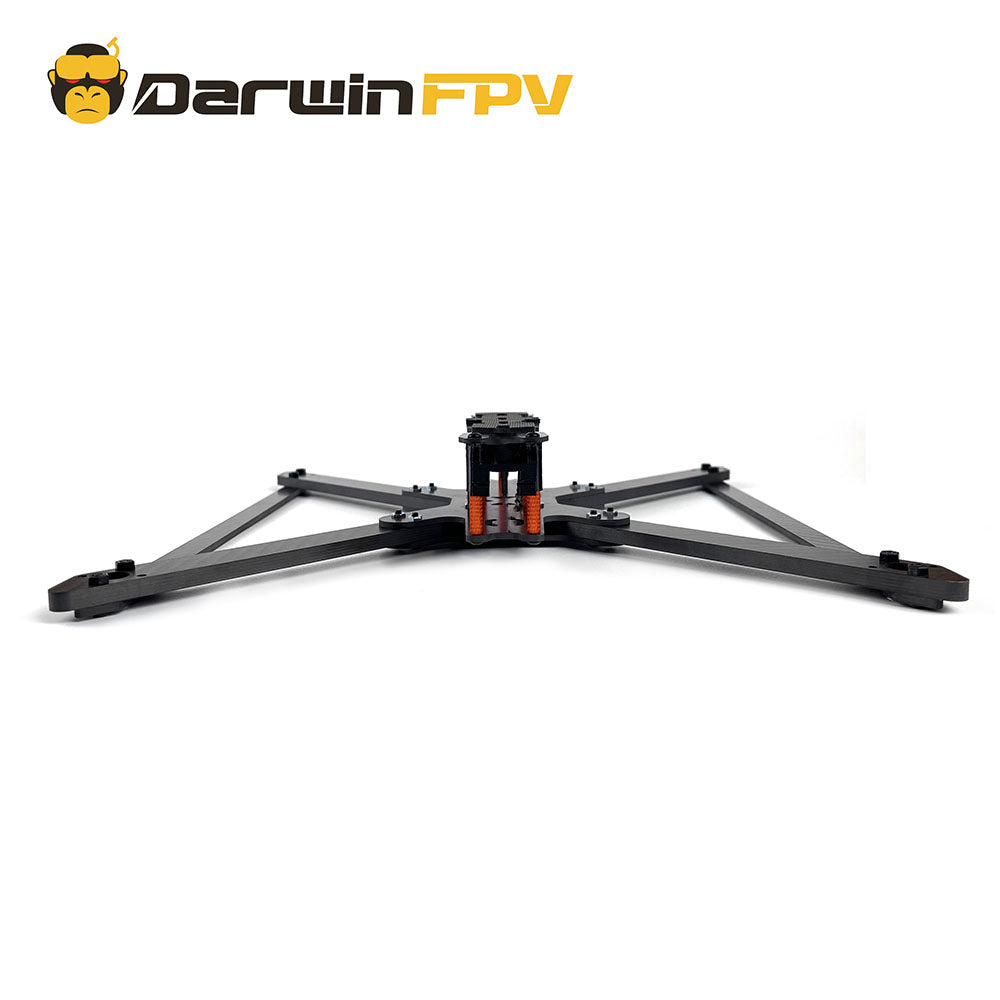

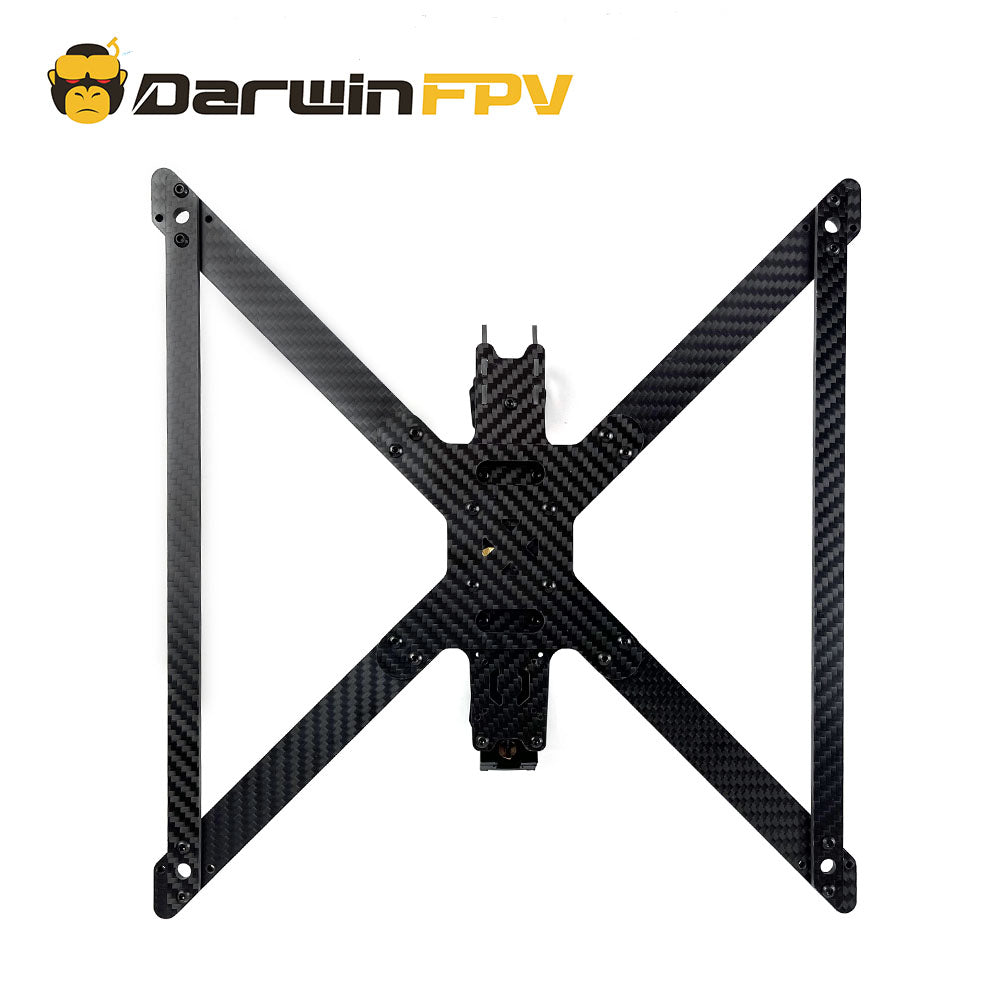

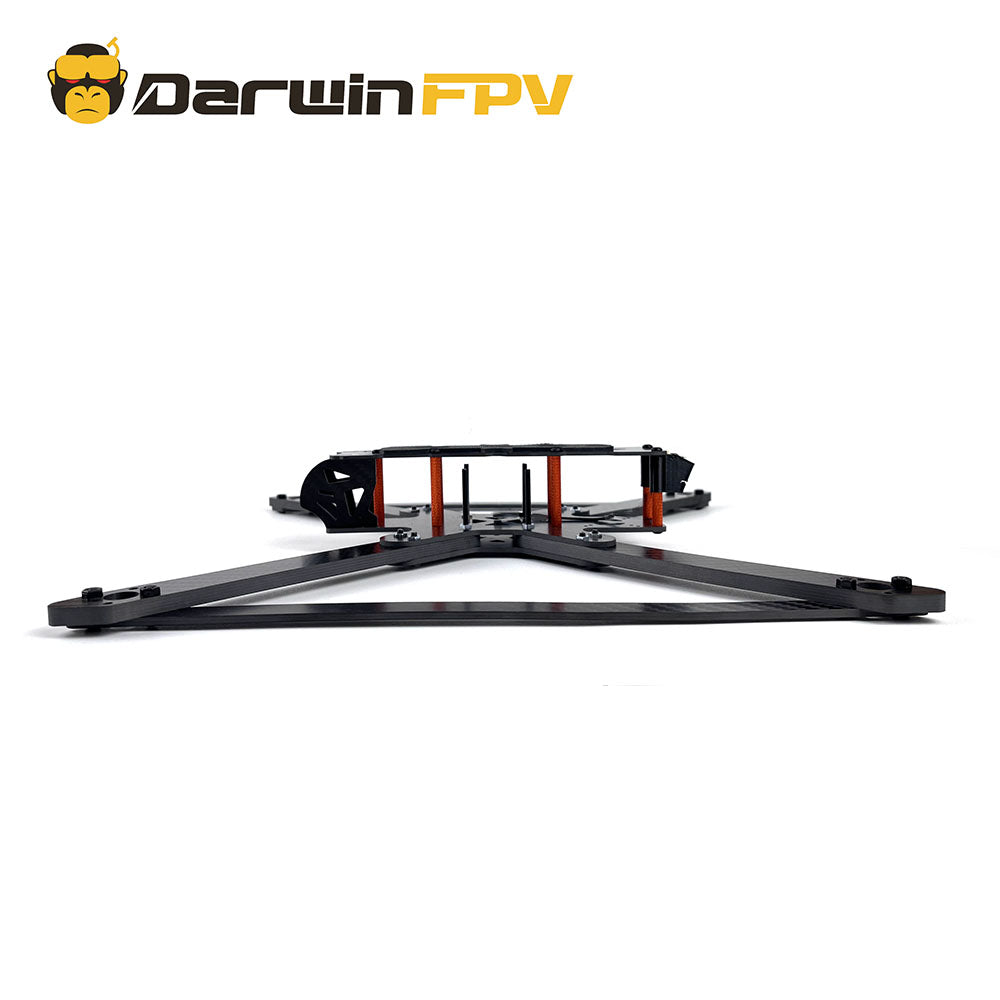

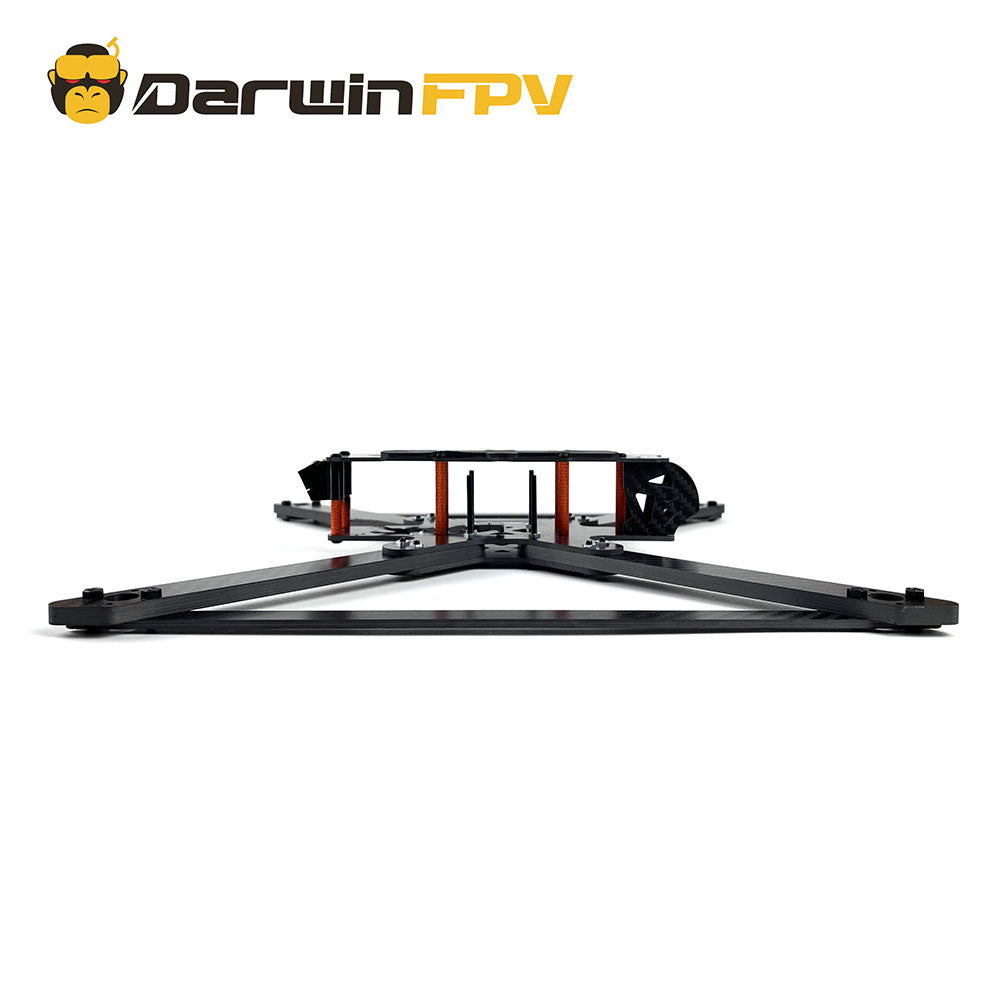

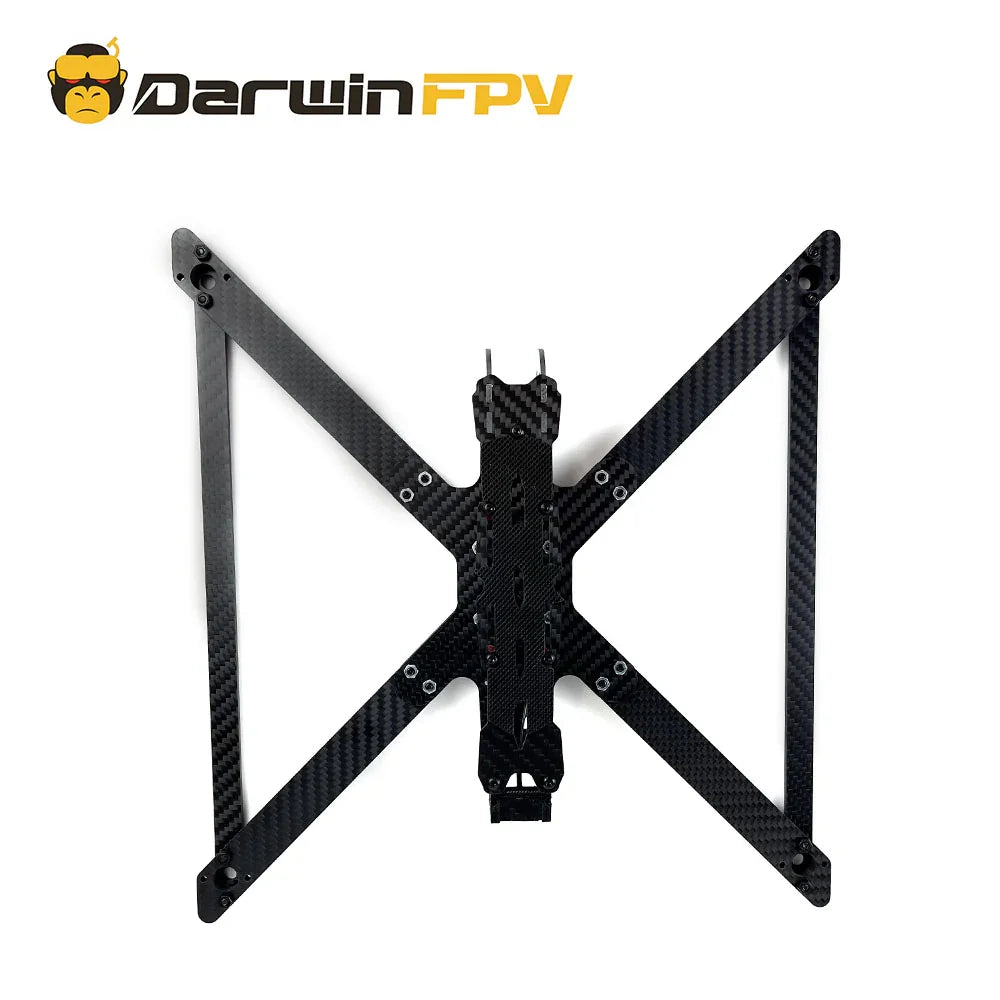

DARWIN X9 Quadcopter Frame

Summary

The DARWIN X9, a 9-inch frame meticulously designed by the DARWINFPV team, is specifically tailored for long-distance flights. Its robust structure enables the drone to effortlessly brave intense level 7 winds, while its spacious body provides ample room for accommodating a wide array of electronic devices, granting DIY enthusiasts greater freedom in customization.

The combination of weight and power in 9-inch FPV drones results in remarkable cruising speeds and exceptional resistance against high-altitude winds. With this capability, you can fearlessly explore mountain ranges, marvel at breathtaking seascapes, and capture unparalleled scenic photographs

Features

1: The Ture-X structural design, along with widened and thickened arms and reinforced left and right ribs, enhances the drone's strength and stability during flight.

2: The extended top plate design allows for accommodating larger batteries, providing extended flight times.

3: With a front and rear dual compartment design, the drone offers ample internal space and compatibility with all commonly used stacks, VTX, and other mounting holes.

Recommended

Adaptive Motor: 2812 - 3212
Battery : 6S 6000-8500mAh above 60C
Long range: 6S2P 6000-8000mAh above 20C
ESC: Above 60A
Propeller: Gemfan 9045-3
Recommended takeoff weight: 1500-3000g

Specification

Model: DARWIN X9
Frame structure: True-X
Arm structure: Split arms
Wheelbase: 363mm
Dimension: 295*280*52mm
Arm thickness: 6mm
Top plate thickness: 2mm
Mid plate thickness: 3mm
Bottom plate thickness: 3mm
Camera side plate thickness: 2mm
FC mounting distance: 30.5*30.5mm
VTX mounting distance: 20*20mm/25.5*25.5mm
Motor mounting distance: 19mm*19mm
Camera installation size: 19mm
FC installation size: 35mm
ESC installation size: 35mm
Suitable propeller size: 9 inch
TPU accessories: Antenna mount
Weight: 287.8g±5g

Packing List

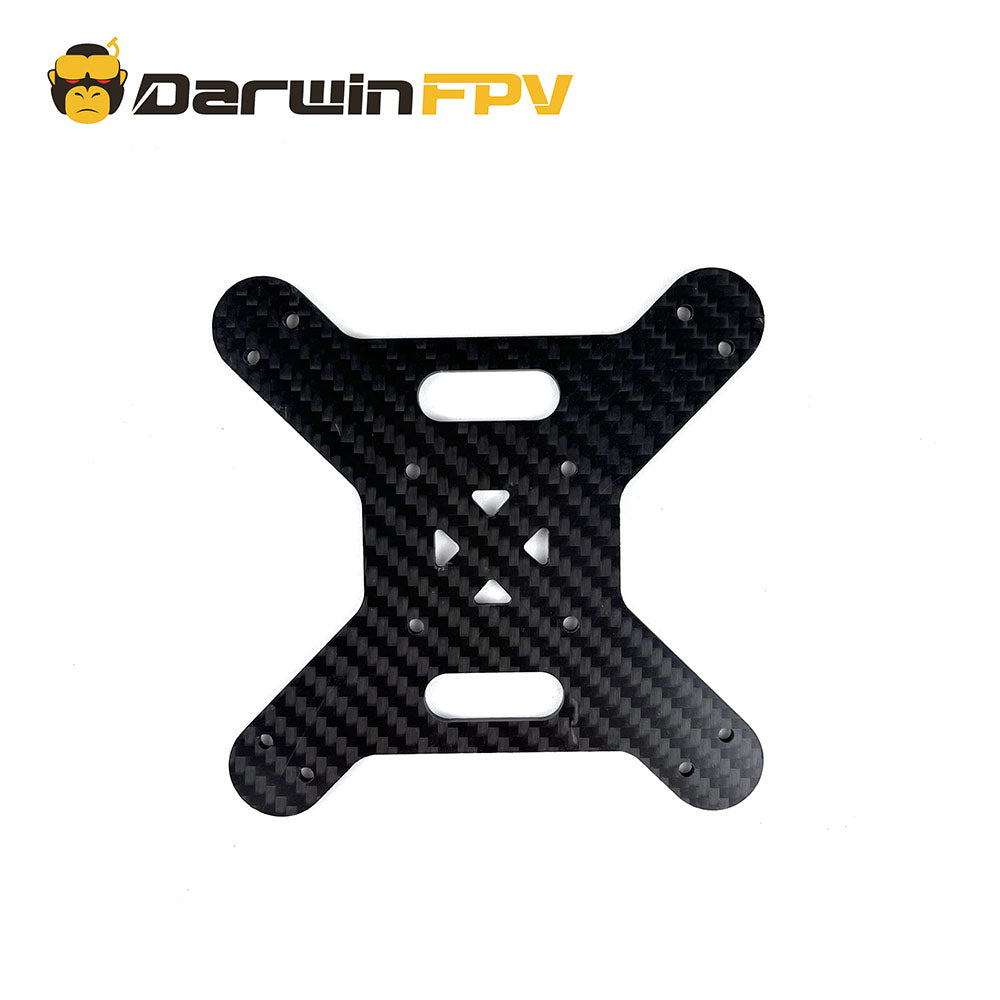

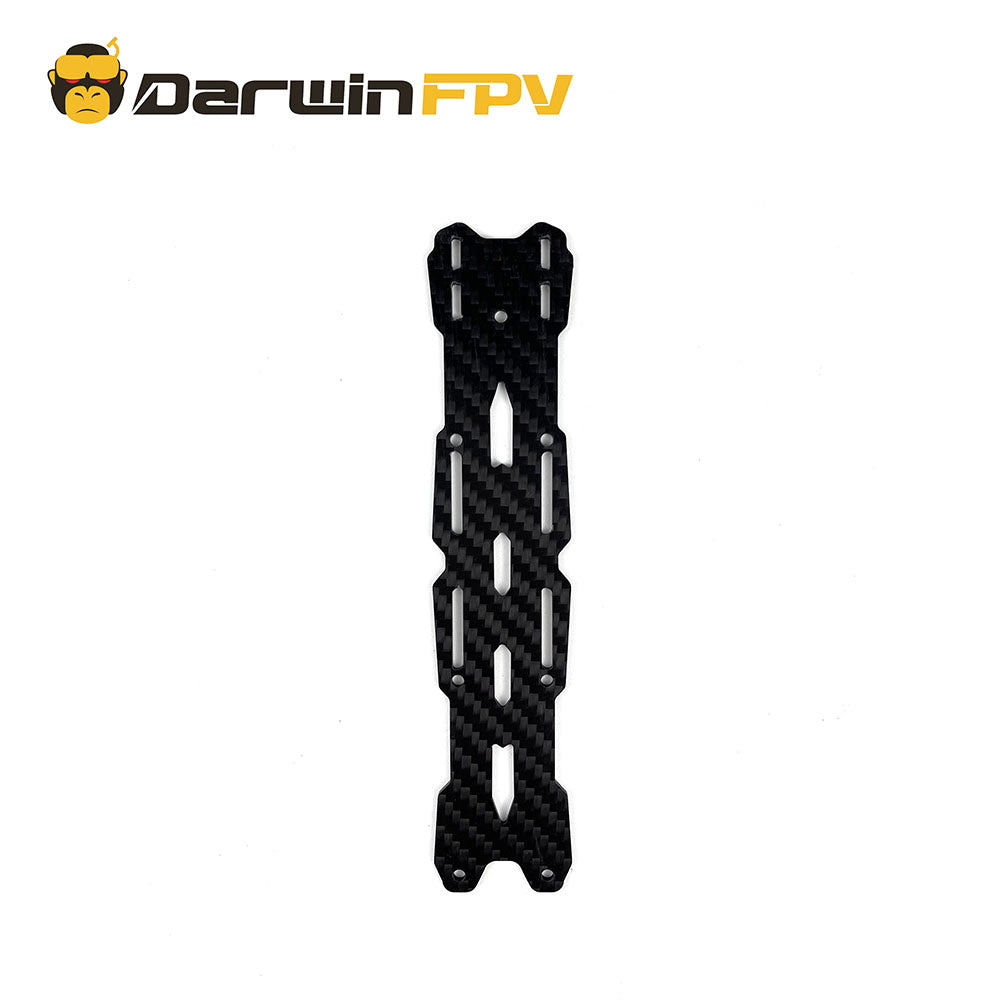

1 x top plate

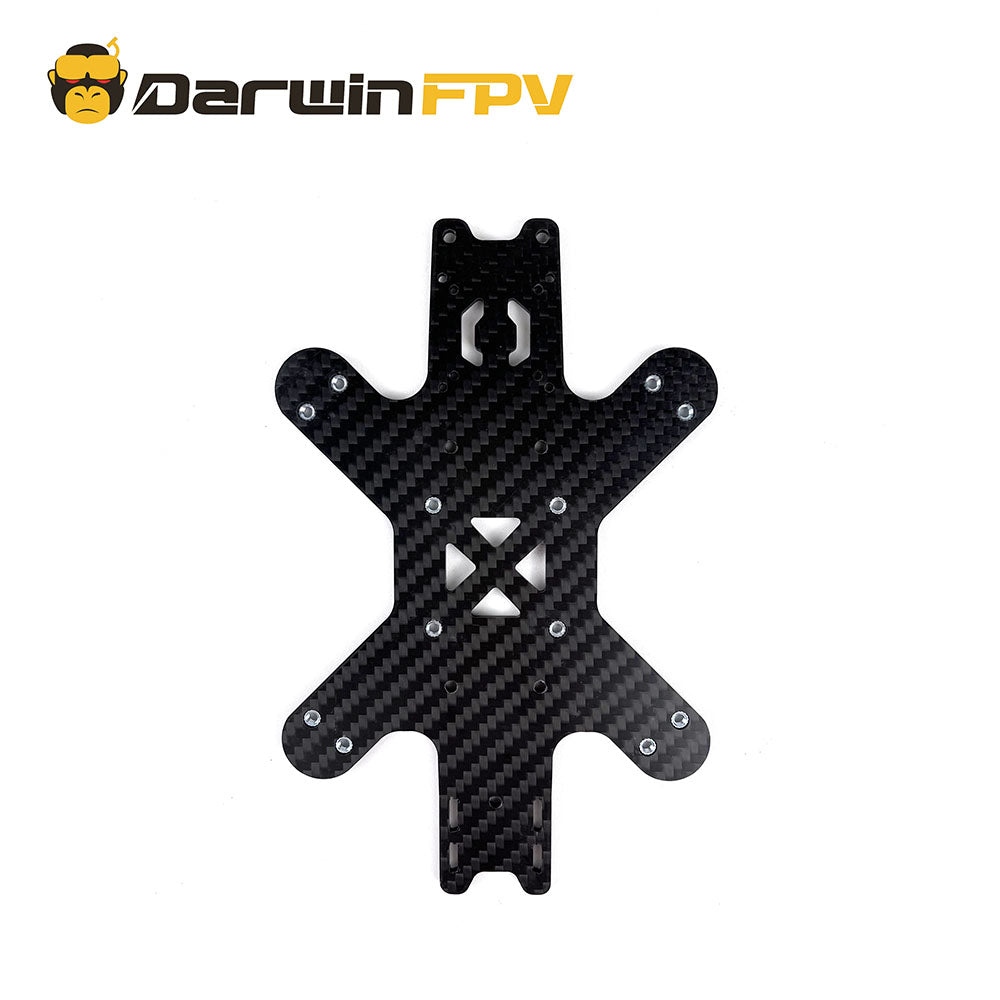

1 x bottom plate
1 x mid plate

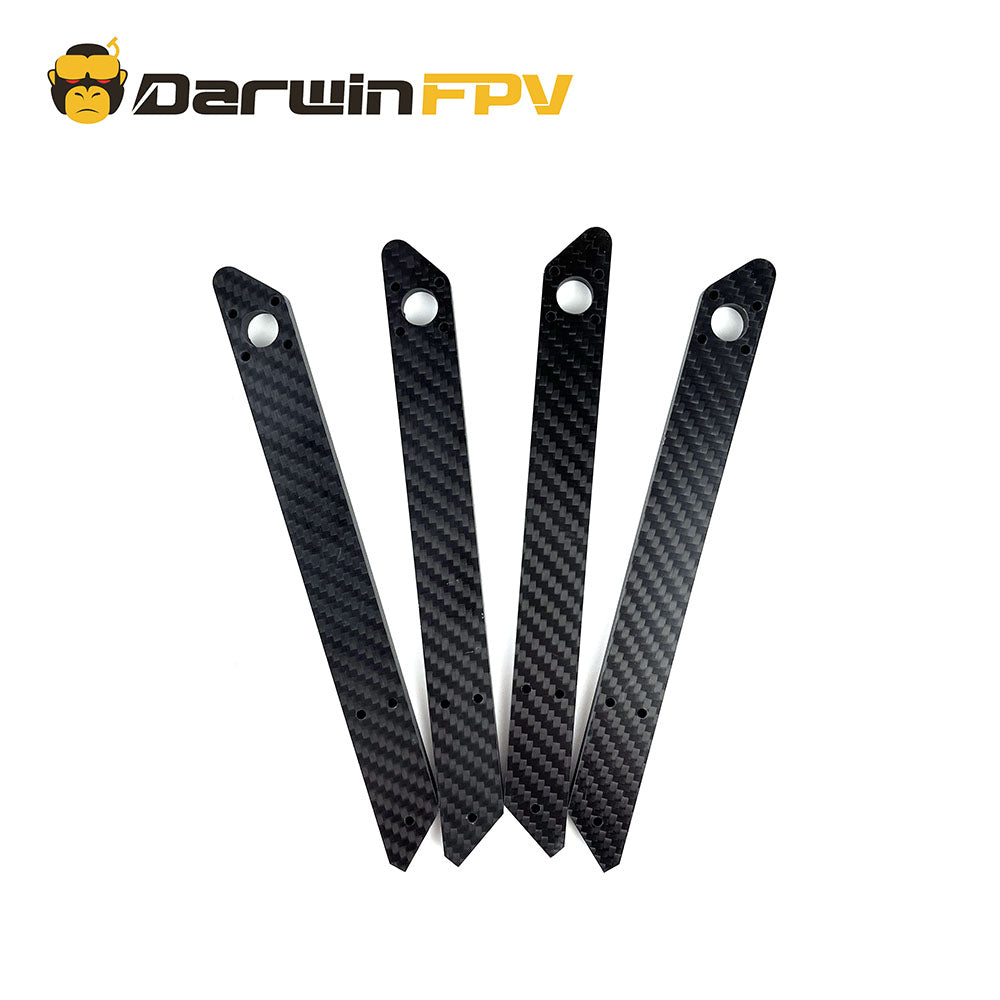

4 x arms

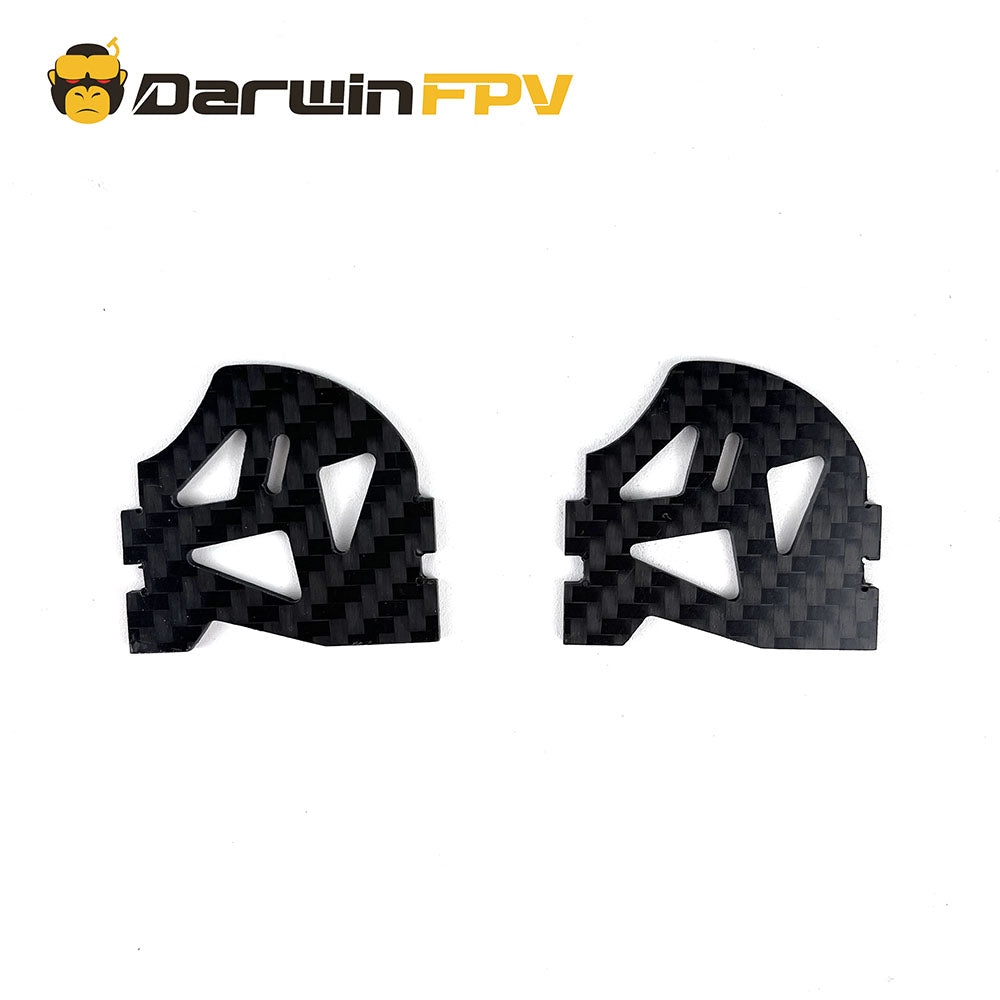

2 x camera side panels

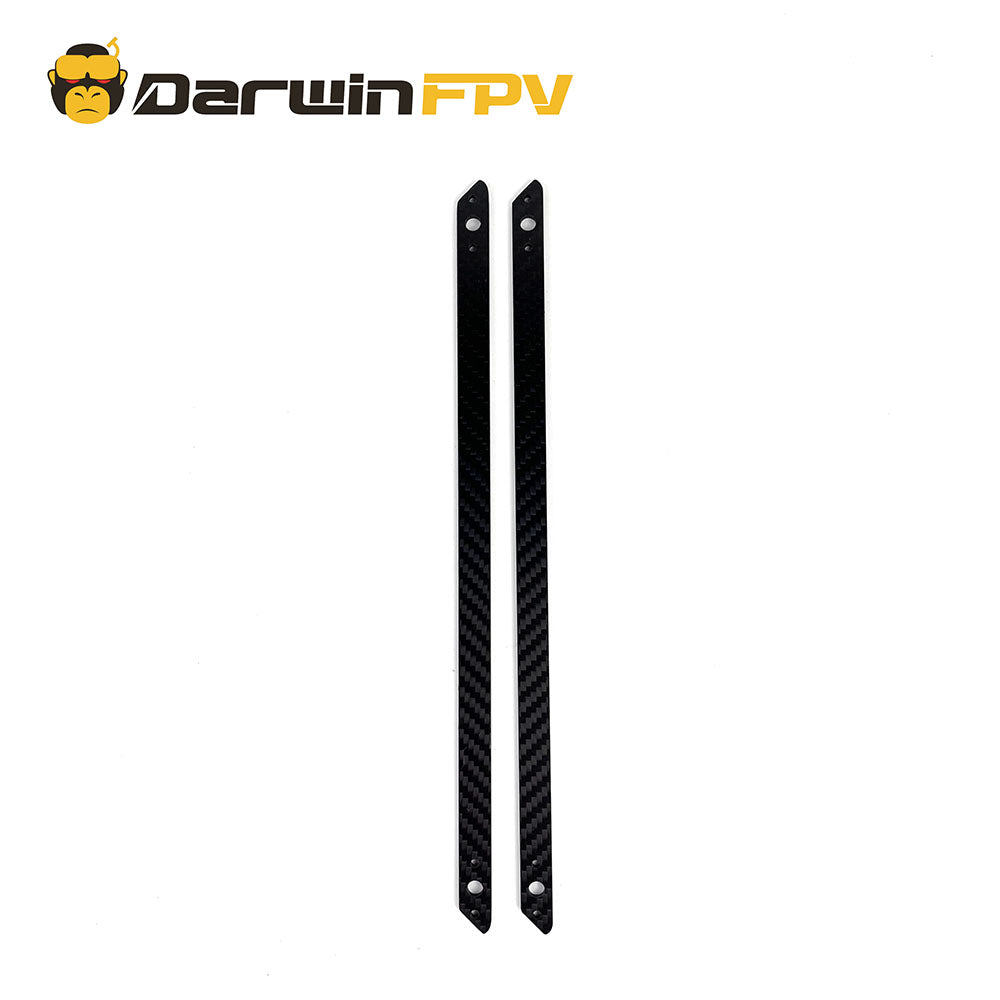

2 x reinforcement ribs
1 x battery anti-slip pad
2 x battery strap20 x 260mm
5 x M2*4 hexagon socket head black grade 10.9 screws
20 x M3*6‎Hexagon socket round head black grade 10.9 screws
10 x M3*10‎Hexagon socket round head black grade 10.9 screws
10 x M3*12 hexagon socket head black grade 10.9 screws
10 x M3*14‎Hexagon socket round head black grade 10.9 screws
5 x M3*40 hexagon socket head black grade 10.9 screws
5 x M3 nylon nuts
12 x M3 expansion rivet nuts (embedded on the carbon plate)
7 x M3*35*D5 Orange

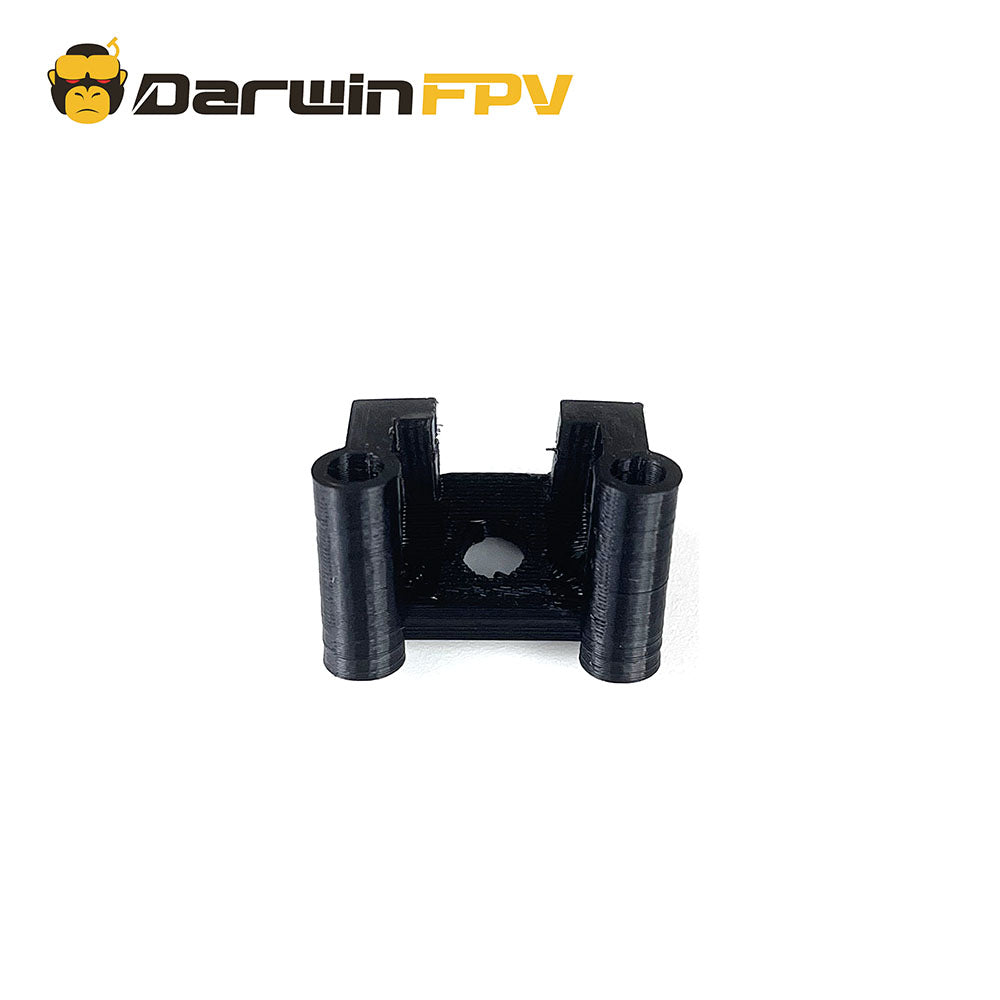

1 x TPU Antenna Mount Black
10 x 1.8*100mm nylon tie
1 x sticker
