Darwin TinyApe Freestyle Frame
Choose options
Summary
The DarwinFPV TinyApe has been loved by players since its release. It is lightweight, compact and flexible, and can fly in narrow environments. Therefore, we developed the TinyApe HD series. Walksnail Avatar and DJI O3 HD VTX optional for choosing, supporting up to 4K@120fps recording.
TinyApe HD continues the consistent lightweight design concept of the TinyApe series. It cleverly uses the VTX body as a support column to ensure the rigidity and durability of the body while maintaining an extremely light weight. The O3 version is only heavier 80 g. It is the lightest 3S battery 2.5-inch HD toothpick drone on the market!
TinyApe HD feels very flexible and agile, and can achieve a flying experience similar to a 5-inch FPV, but is only as big as a palm, making it more suitable for flying training in small spaces. From then on, the location will no longer be a factor limiting your flight.
Features
1: The new TinyApe HD series supports Walksnail Avatar and DJI O3 HD VTX options, supporting up to 4K@120fps recording;
2: Continuing the consistent lightweight design concept of the TinyApe series, it cleverly uses O3 VTX as a support column to ensure the rigidity and durability of the fuselage while maintaining an extremely light weight.
3: The lens is higher than the plane of the paddle and away from the source of the earthquake. The wide angle is unobstructed and the video has no rolling shutter;
4: Compact small wheelbase design, very agile and suitable for freestyle training in small spaces. From now on, the venue will no longer be a factor limiting your flight;
5: The bottom of the fuselage is equipped with a dust-proof pad to protect electronic components from dust, rain, etc.;
6: Carbon plate oil injection process, feels delicate and smooth;
Packing List

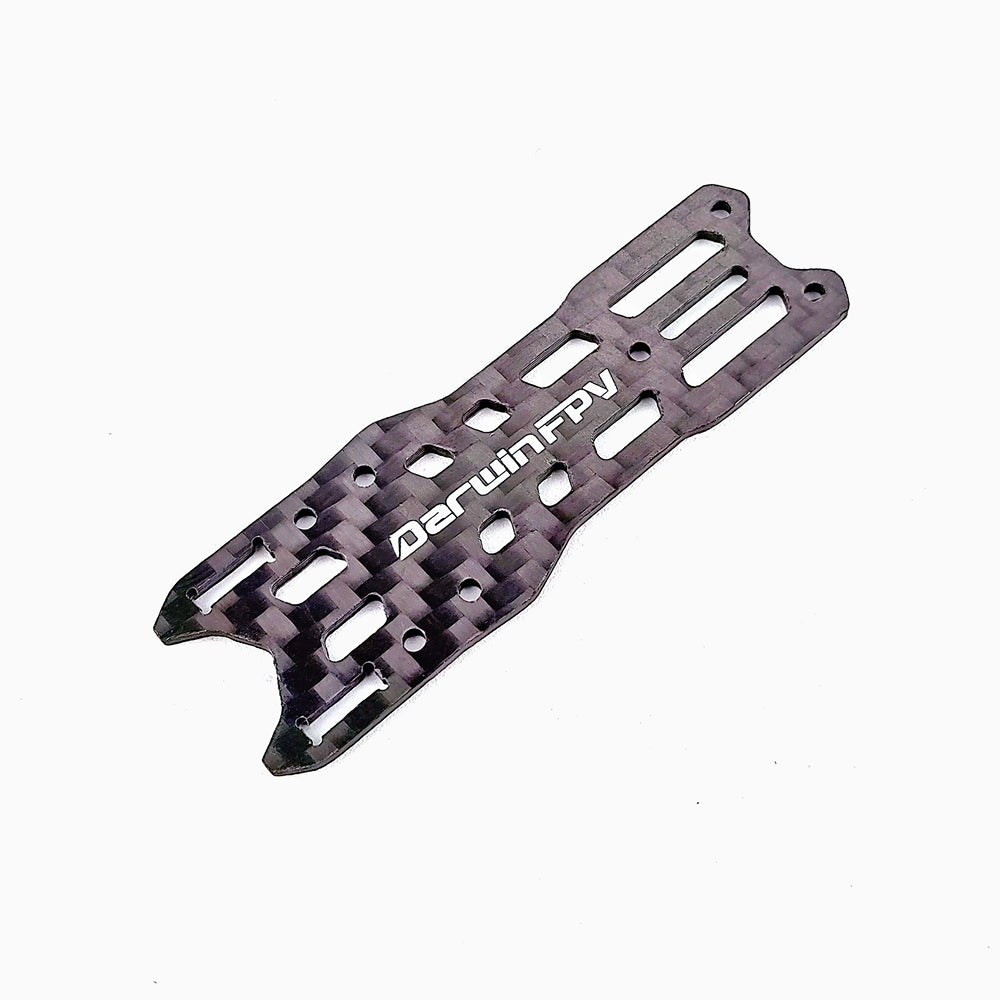

1 x top plate

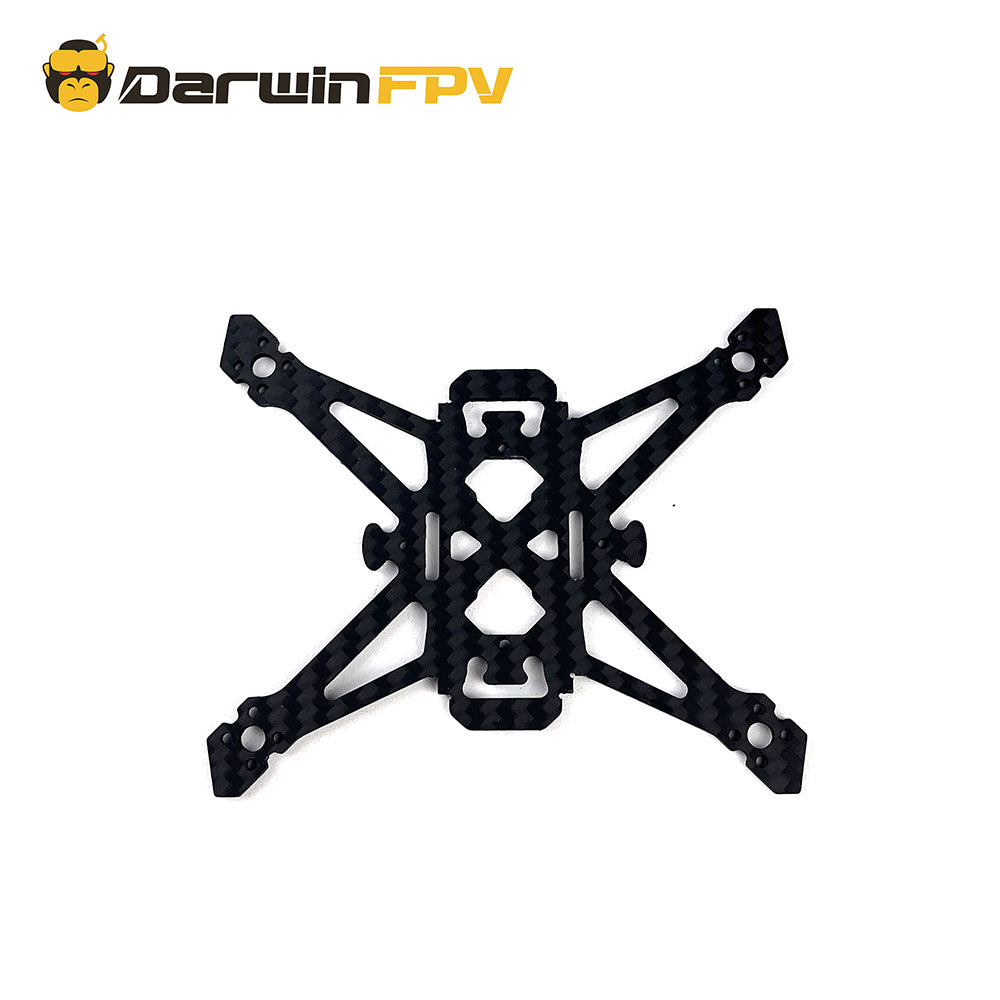

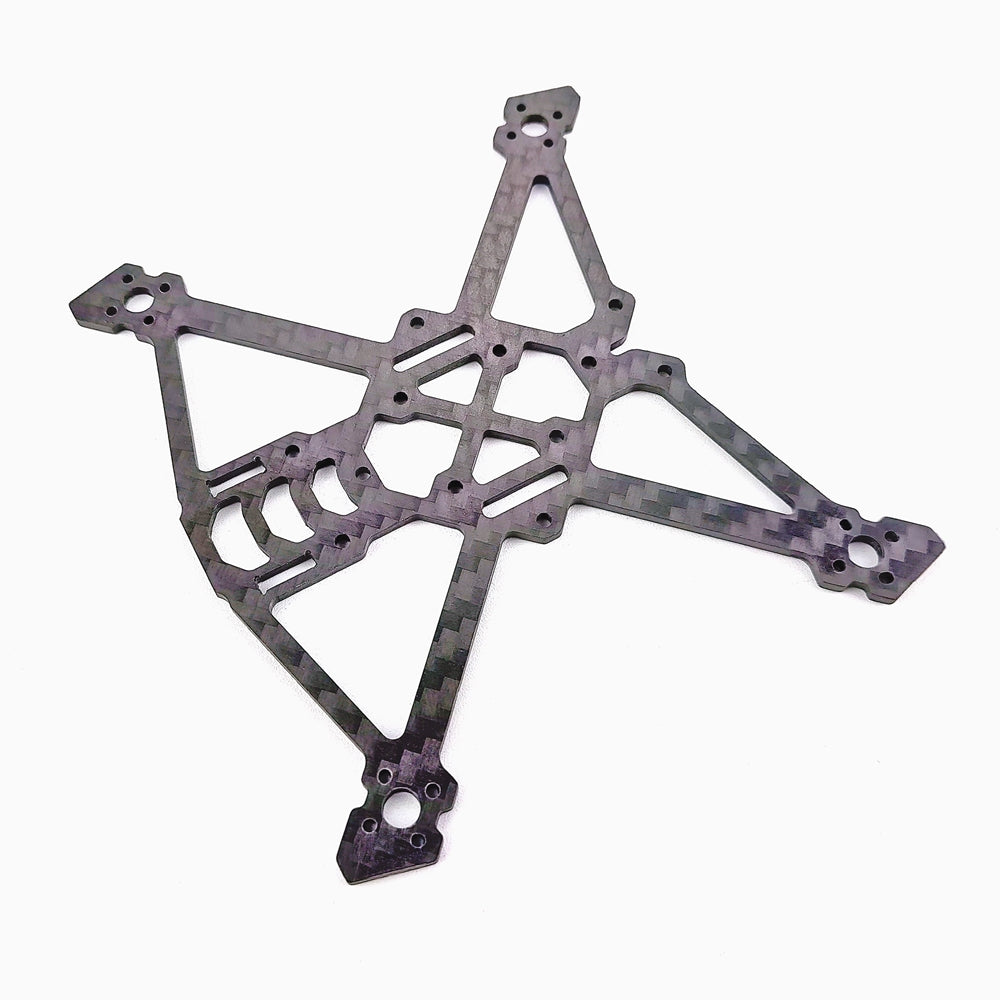

1 x bottom plate

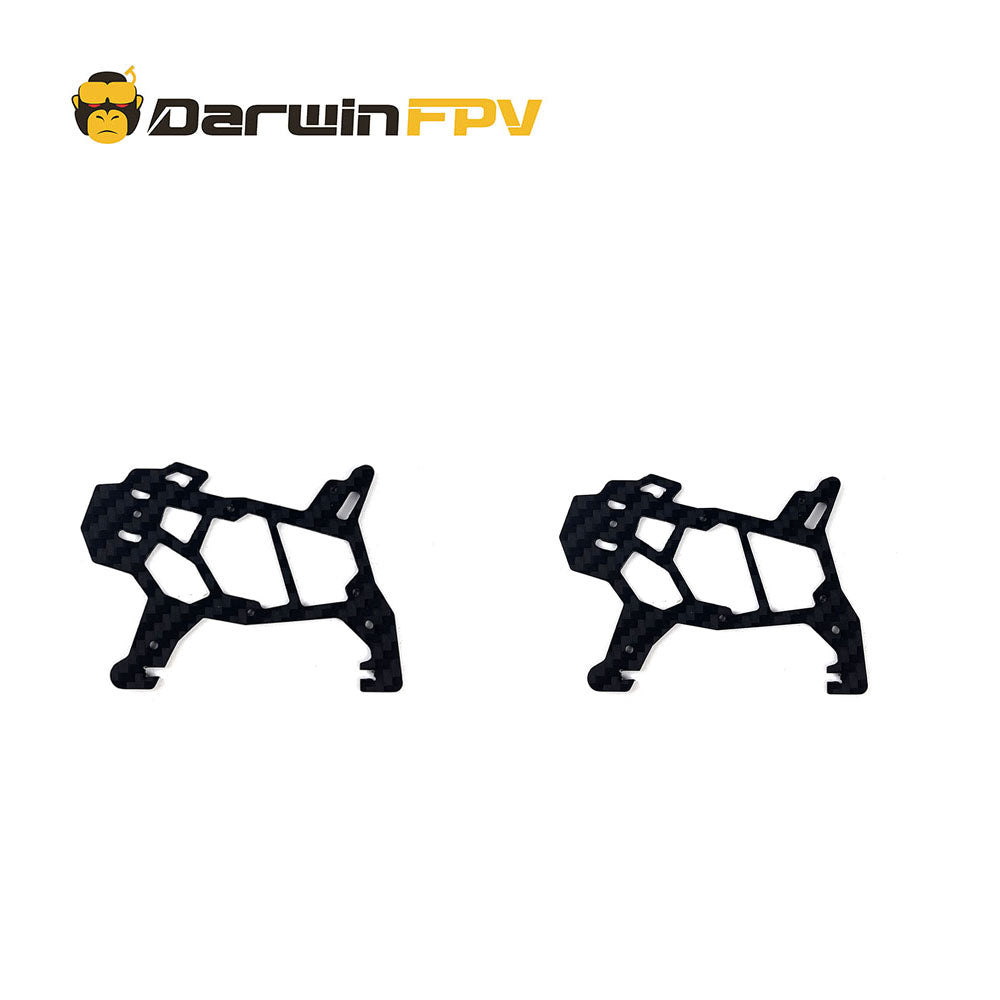

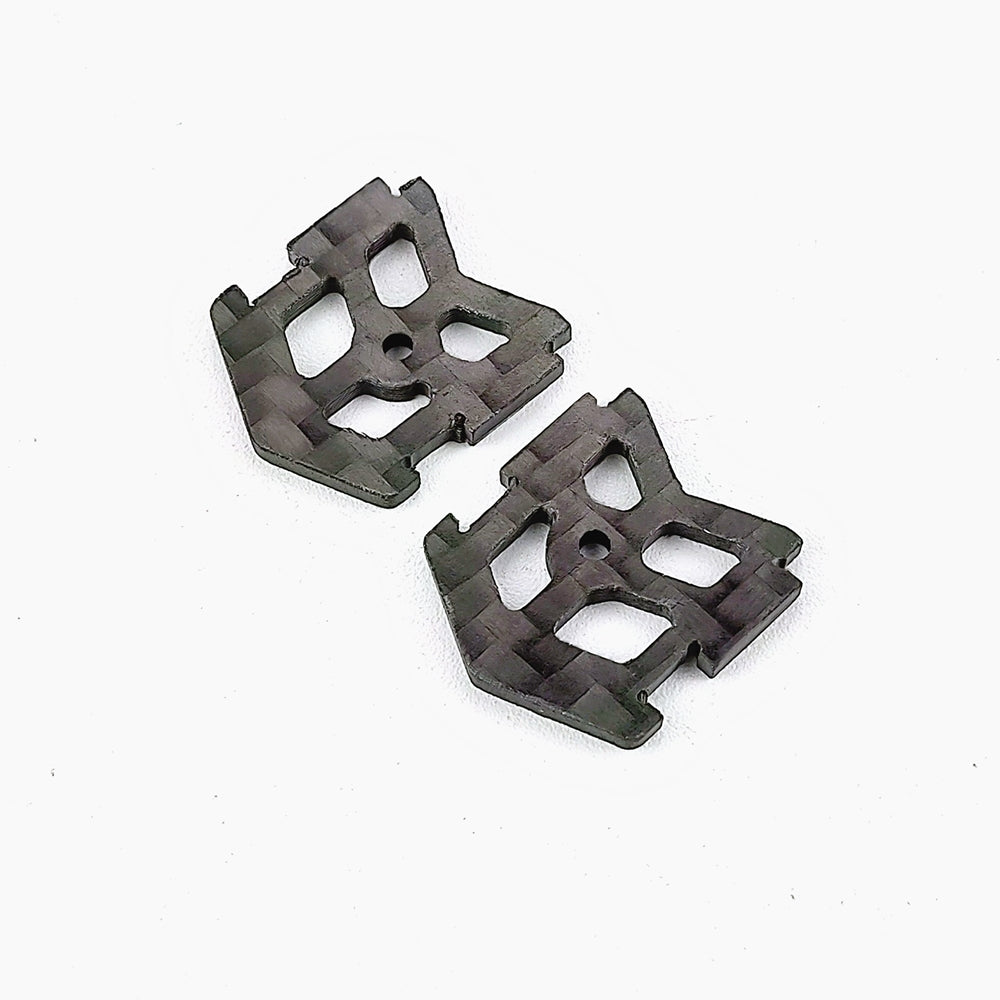

1 x camera side panel

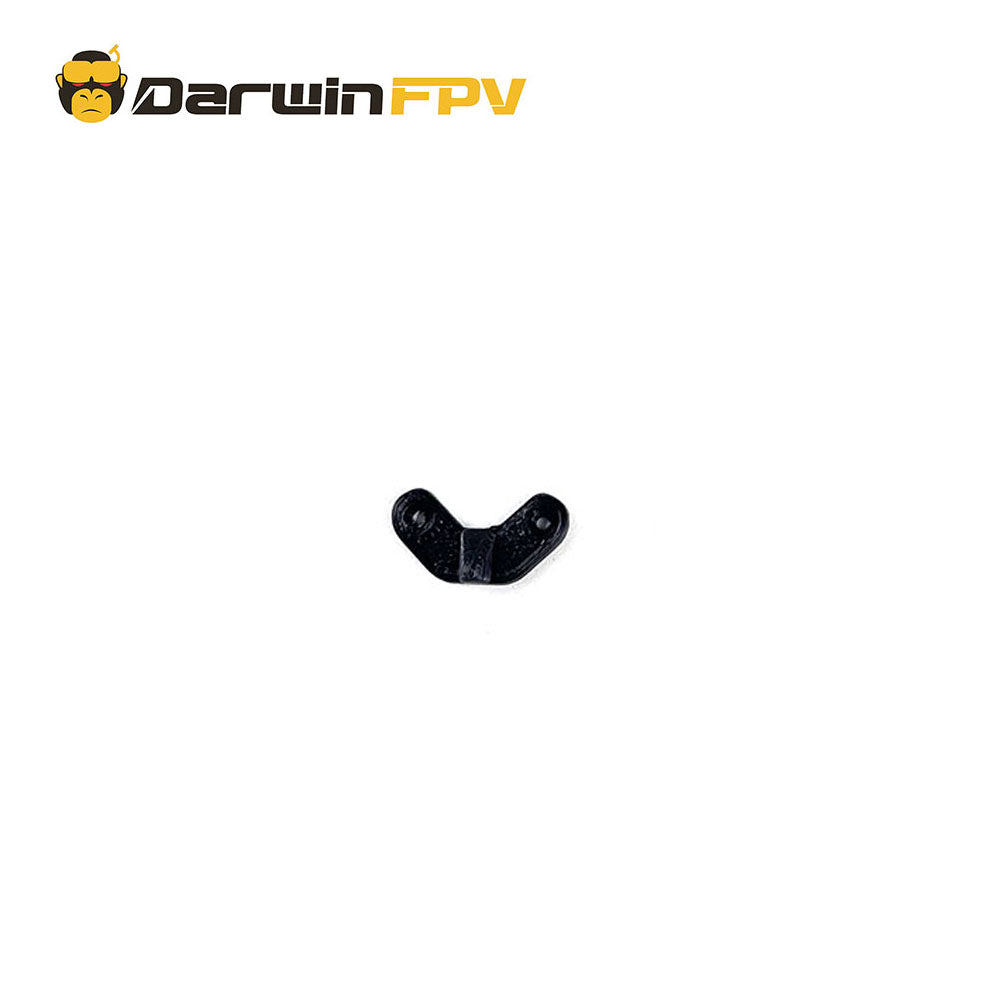

1 x USB protective pad

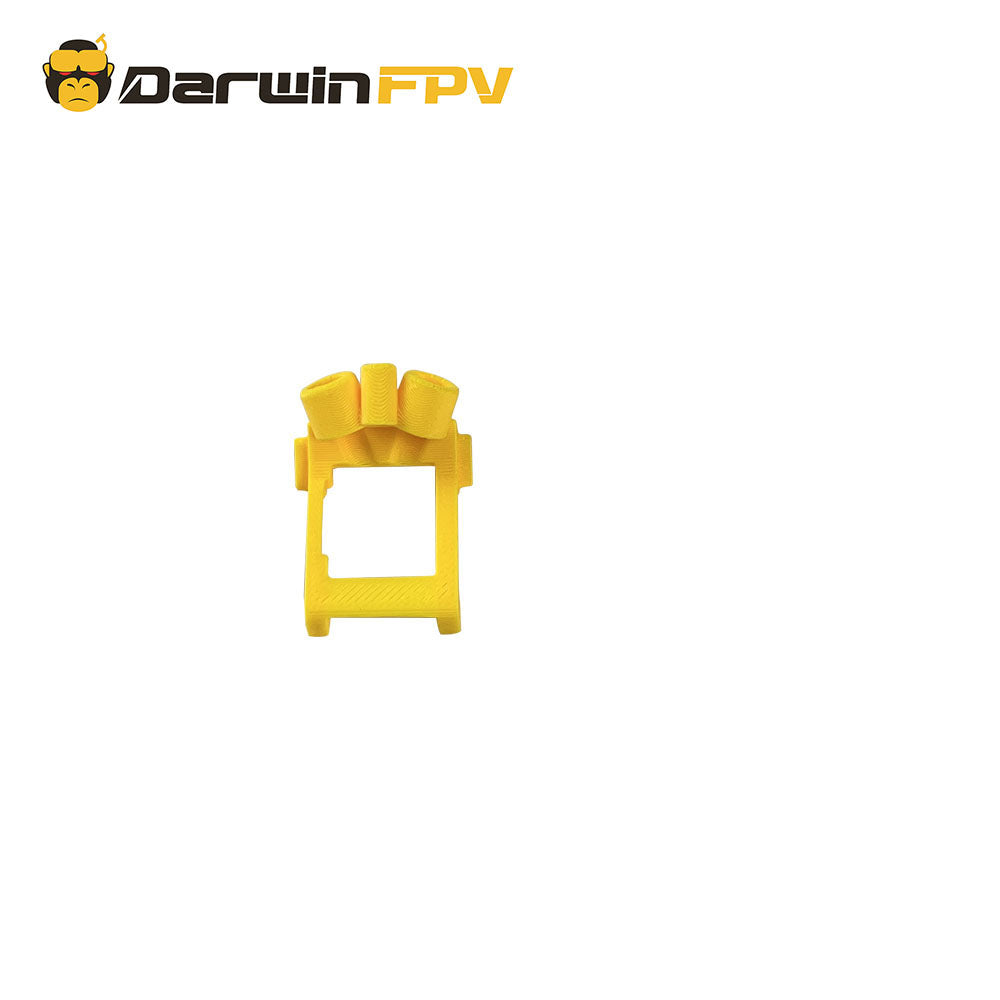

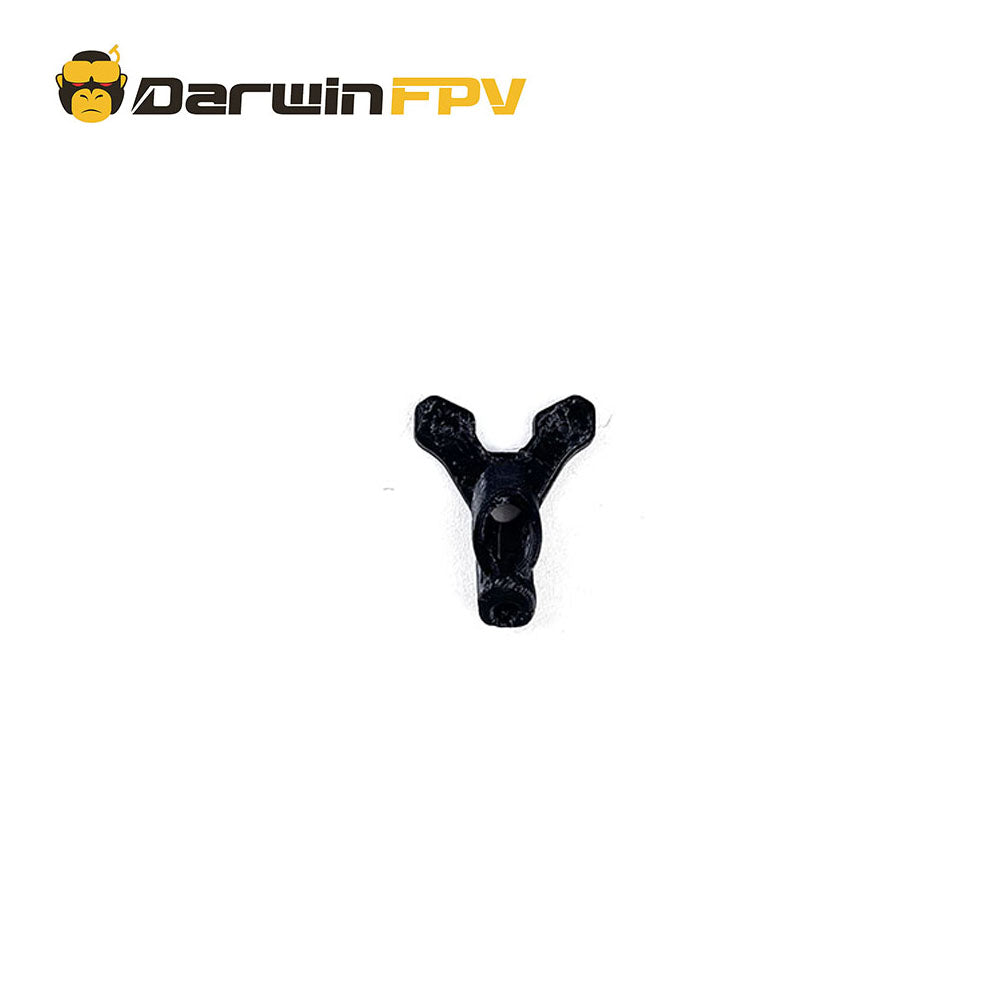

1 x Antenna mount
1 x accessory pack

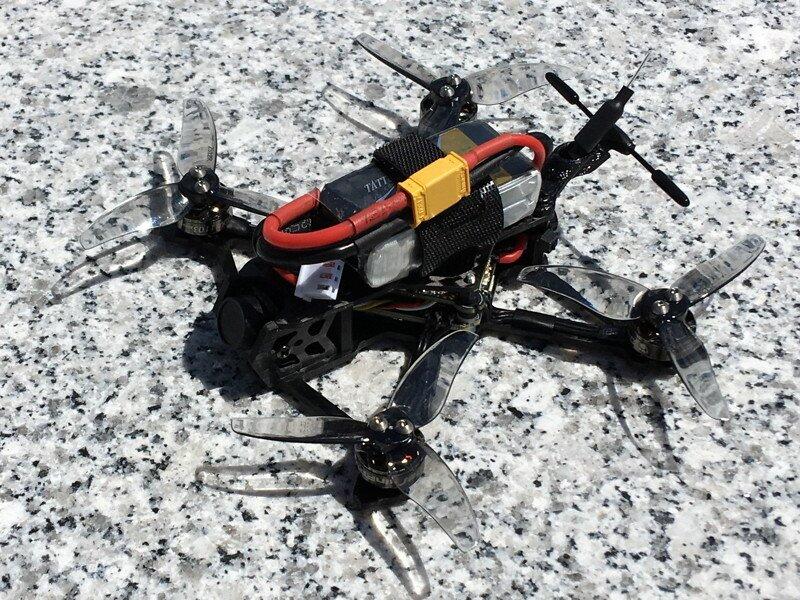

I just put a HDZero Eco Bundle into the TinyApe Avatar HD frame and it fits really well. The only thing I had to adjust was the camera mount (moved it 4mm forward). I am totally impressed by the little frame. Everything is well thought out. It is very stiff and I now get why it "only" has the 8.5mm/1.6mm motor mounts and screws (to save weight). With the Bling 1103 8000KV motors mine comes in at about 61.5g (without the battery).
Overall, the frame is excellent; however, I noticed two potential improvements:
1) The motor mounting holes are spaced at 8.5 mm, whereas most motors in this size class use a 9 mm mounting pattern. Slightly elongated holes could accommodate both standards.
2) The front propellers have minimal clearance from the frame. A bent propeller could potentially rub against the frame during operation.
