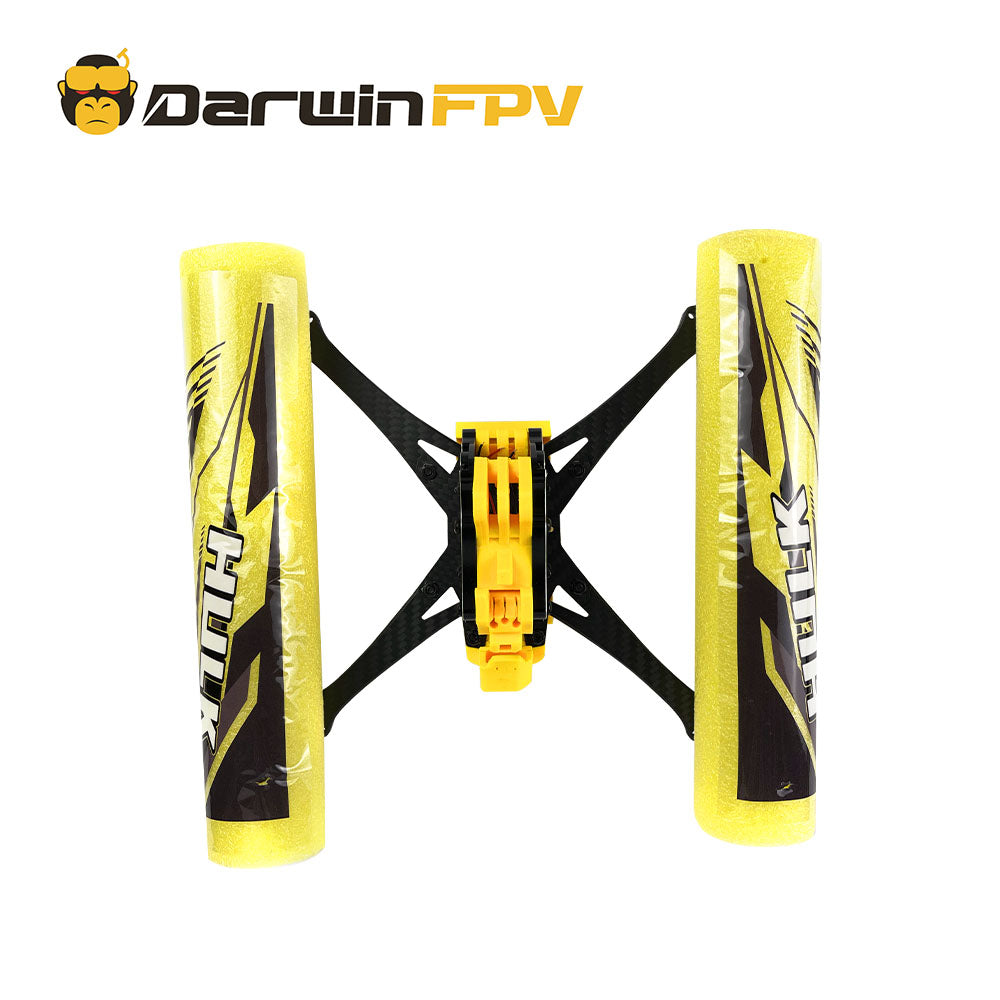

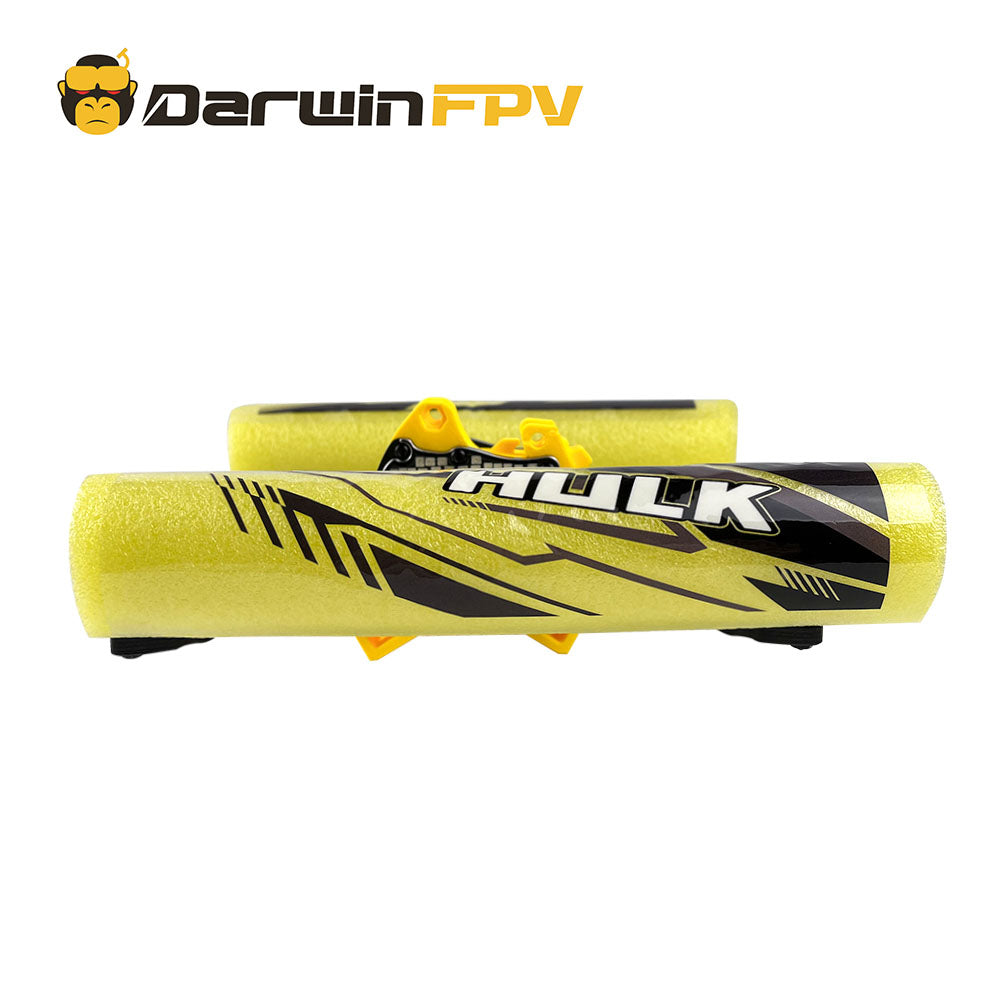

DARWIN HULK Ⅱ Waterproof FPV Drone Frame
Summary
The HULK series, meticulously designed by DARWINFPV, is a line of rugged products intended for use in harsh environments. Each product has been equipped with IP67 protection against water and dust, allowing them to withstand various outdoor challenges without issue.
Compared to the first-generation frame, the HULK II design has undergone significant upgrades and optimizations in multiple areas. It now features dual upper and lower camera mounts and can simultaneously accommodate both DJI O3 and GoPro cameras, providing greater choice and flexibility for shooting, including underwater photography. With thicker, stronger arms, the HULK II can support more powerful motors, much like its namesake. Additionally, its striking appearance is sure to impress.
In summary, the HULK series is the culmination of two years' worth of input and feedback from countless pilots. If you're looking to build a waterproof FPV drone, the HULK series will save you valuable time and significantly reduce the likelihood of issues during development.
Features
1. High-strength CNC side plates and 5.5mm thicker arms. The carbon fiber plate is made of the strongest T700 material. It is as strong and durable as the "Hulk";
2.All screws and nuts are crafted from 316 grade stainless steel, retaining their bright appearance even after 72 hours of immersion in sea water.

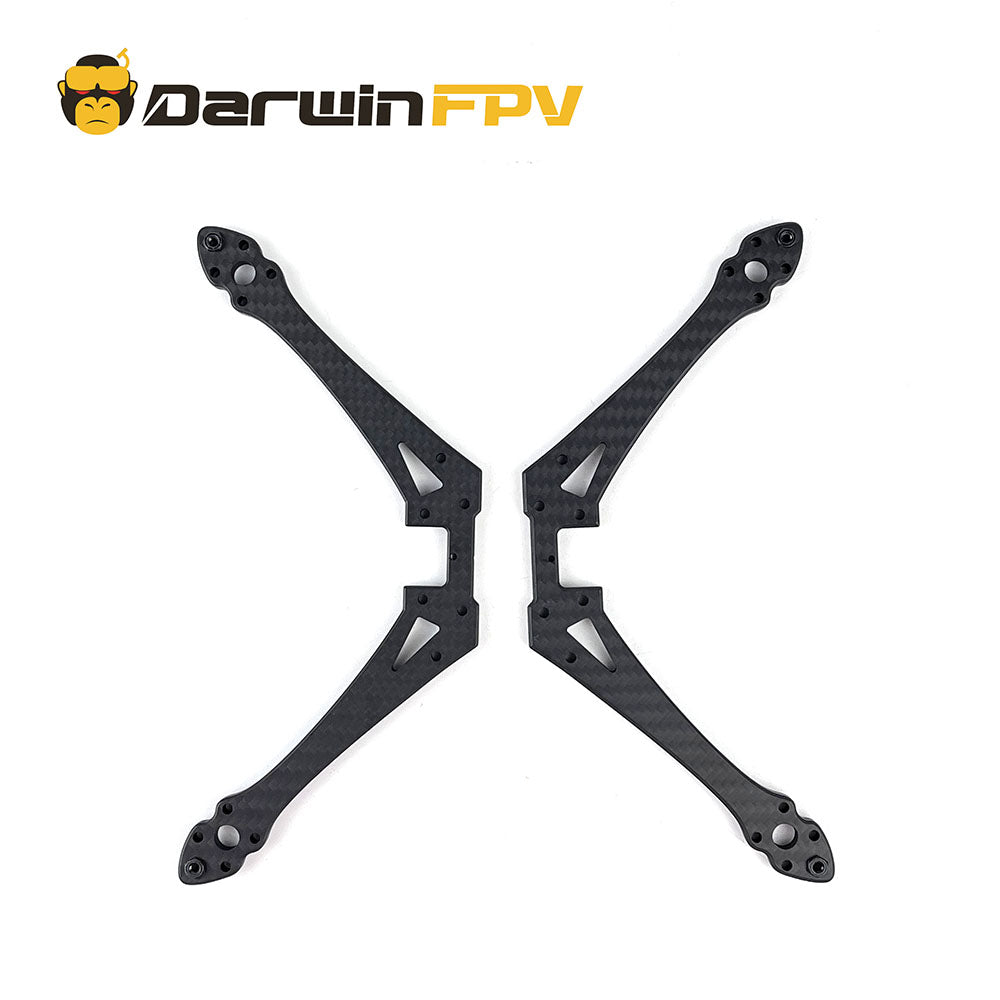

3.The True-X structural design and two-in-one arm design eliminate any empty spaces and minimize resonance. Although we've sacrificed quick-release functionality, we believe it's worth investing a little extra time to achieve optimal flight performance.
4.The upper and lower camera mounts offer the flexibility to simultaneously equip DJI O3 and GoPro cameras, enabling a wider range of shooting options, including underwater footage.
5.The integrated fixed XT60 connector ensures safer and more convenient battery insertion every time.
6.By adding washers to the screws at the bottom of each arm, we effectively distribute stress and prevent surface carbon fiber deformation or breakage caused by screw pressure.(In fact, carbon fiber is not as hard as you think, and the surface carbon fiber can easily deform and break when squeezed by the screw)

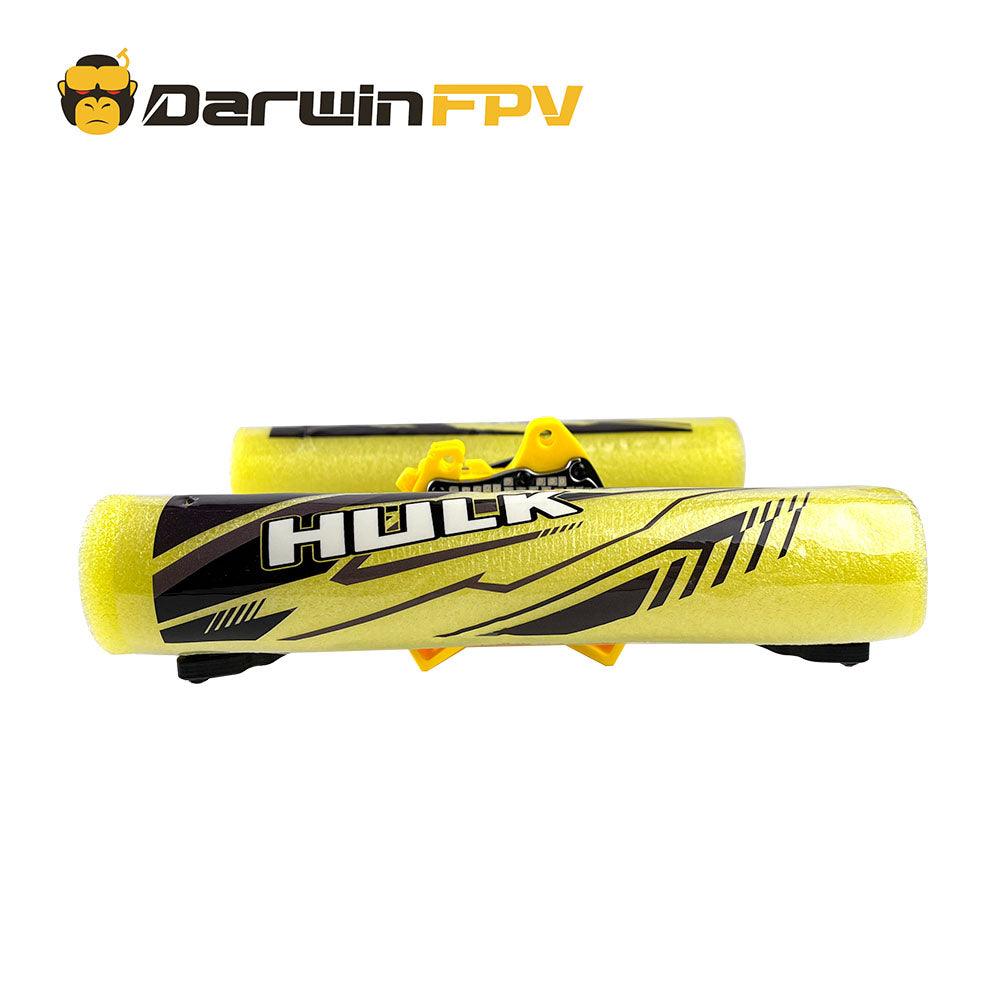

7.On the basis of the first-generation float, penetrating reinforcing ribs are added that make it incredibly difficult to break, regardless of how fast it enters the water.

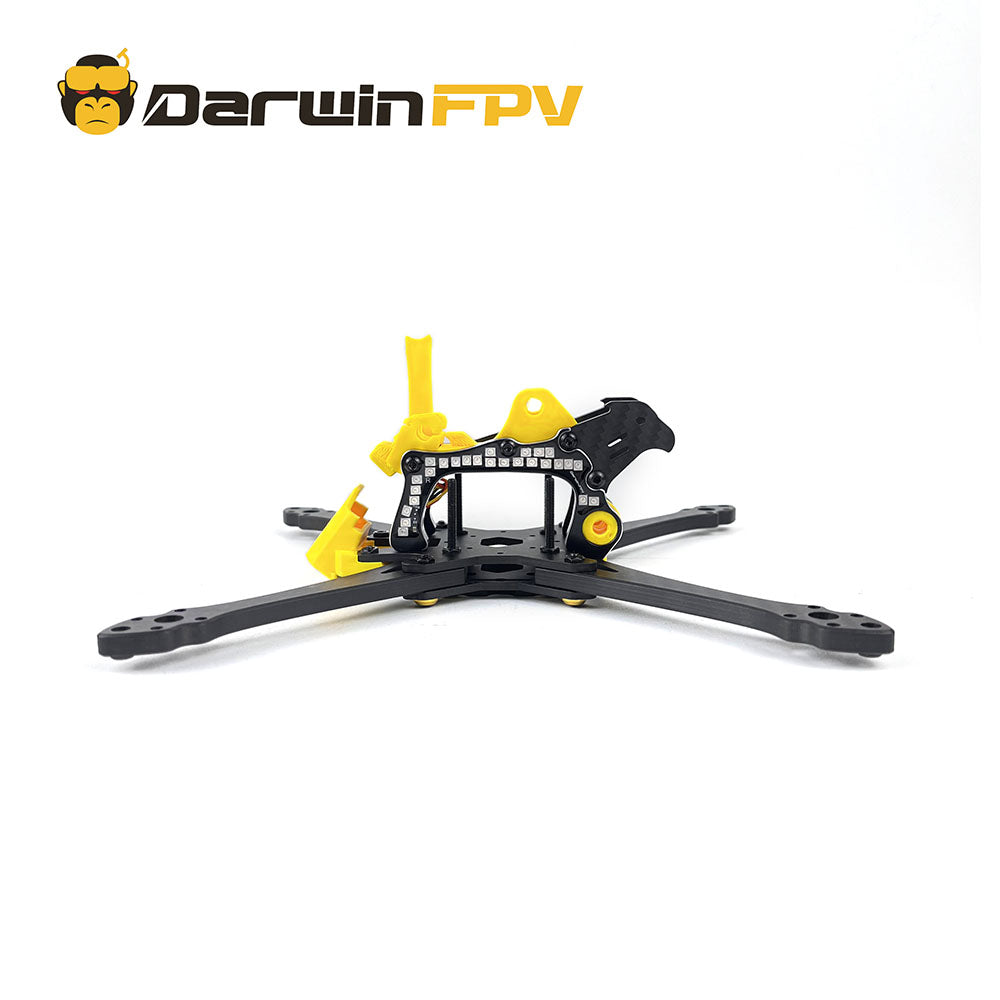

8.Embedded within the side panel are up to 52 programmable RGB lamp beads, making you the most brilliant and standout presence in any crowd.
Recommended
Adaptive Motor: 2207-2508
Battery : 4-6S 1300-1500mAh above 100C
ESC: above 55A
Propeller: 4.9 - 6" propeller
Recommended: takeoff weight 700-1000g
Specification
Model: DARWIN HULK Ⅱ
Frame type: True-X
Arm structure : 2 in 1 arm
Wheelbase: 227mm
Dimension: 220*220*64mm
Arm plate thickness : 5.5mm
CNC Side plate thickness: 5mm
Mid plate thickness 2.5mm:
Bottom plate thickness: 2.5mm
Camera side plate thickness: 4mm
AIO/Stack /VTX mounting holes: 20*20mm/25.5*25.5mm/30.5*30.5mm
Motor mounting holes: 16*16mm
Camera installation size: 19mm
Internal installation height: 24mm
Suitable propeller size: Install the motor forward: 4.9-6"/Install the motor: backwards: 4.9-5.1"

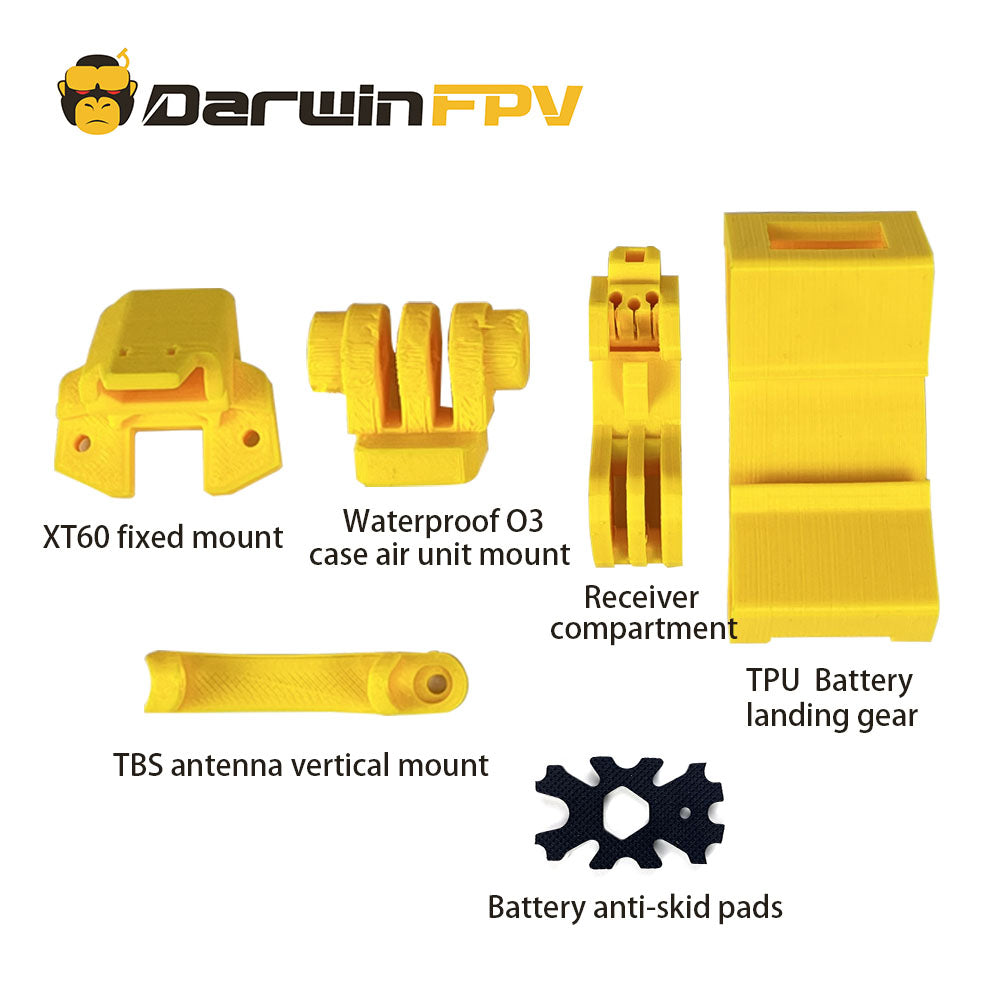

3D print accessories:
1. Waterproof O3 air unit case mount yellow
2.Receiver compartment yellow
3.XT60 fixed mount yellow
4. TBS antenna vertical mount yellow
5.TPU Battery landing gear yellow
Weight: 195.7g±5g
Packing List:
2 x CNC aluminum alloy side plate (1 left, 1 right)

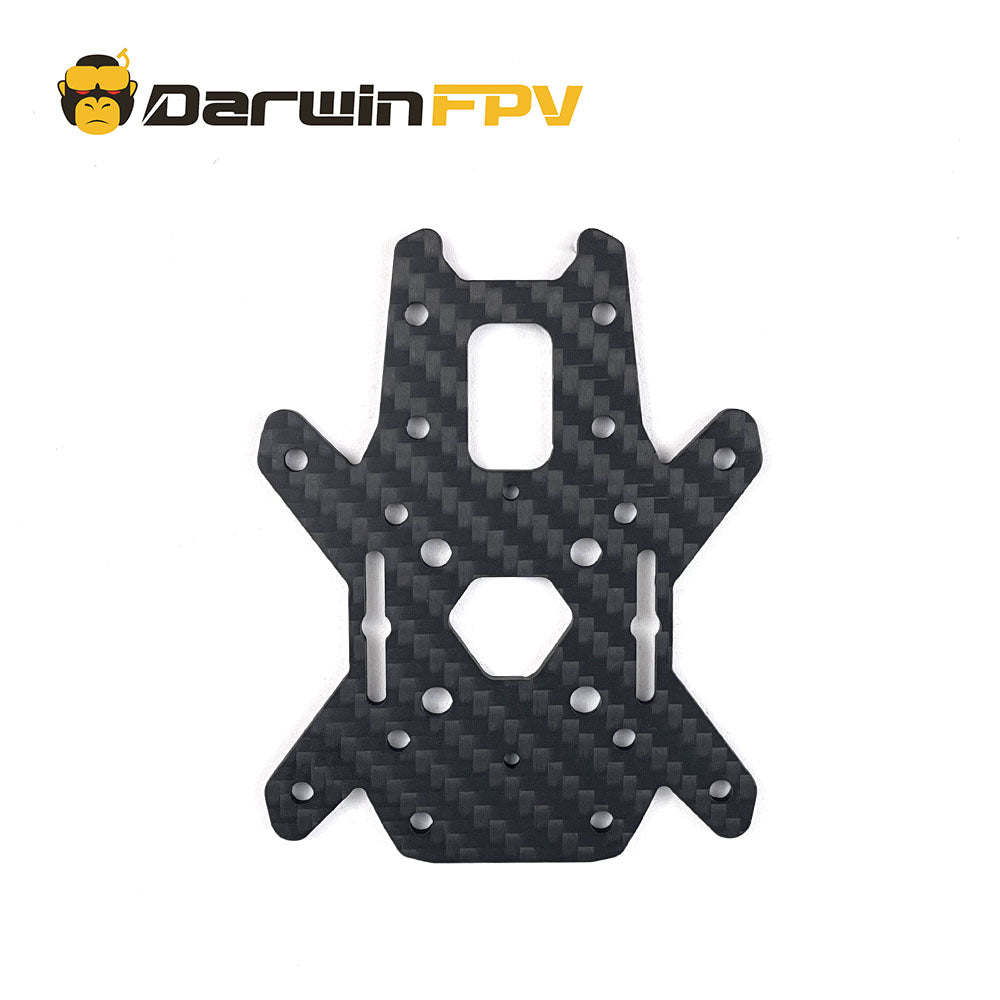

1 x base plate

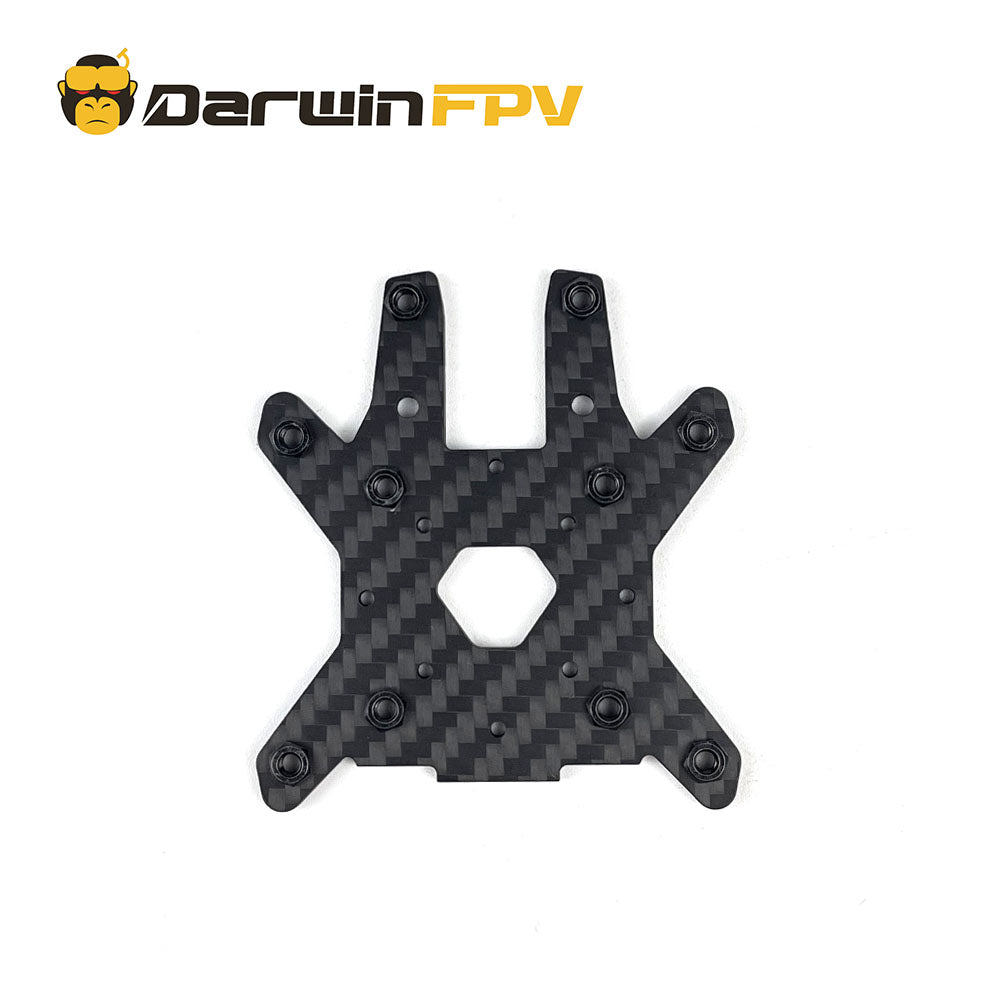

1 x medium plate
2 x machine arms

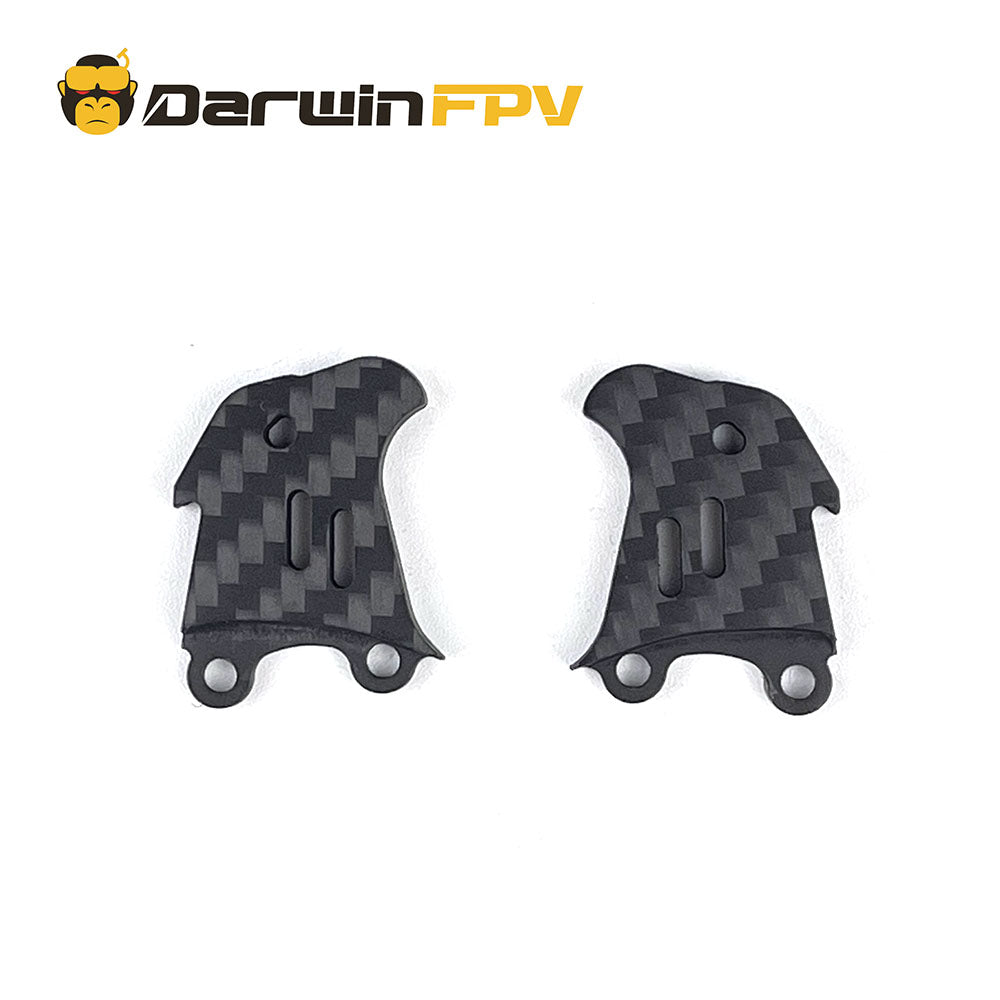

2 x camera side panels (1 left 1 right)
2 x float stiffener
1 x Battery anti-skid pads
2 x battery strap 20 x 260mm
5 x M2*6 hexagon socket head black 316 screws
5 x M3*5Hexagon socket head black 316 screws
10 x M3*9 hexagon socket head black 316 screws
5 x M3*12 hexagon socket head black 316 screws
10 x M3*14Hexagon socket round head black 316 screws
10 x M3*30Hexagon socket round head black 316 screws
5 x M3*35 hexagon socket head black 316 screws
1 x M5*35 hexagon socket head black 316 screw
8 x M3 aluminum alloy spacer half round head
5 x M3 nylon nuts
1 x M5 316 black positive thread flange anti-slip nut
15 x M3 black 316 stainless steel expansion rivet nuts (embedded on the carbon plate)

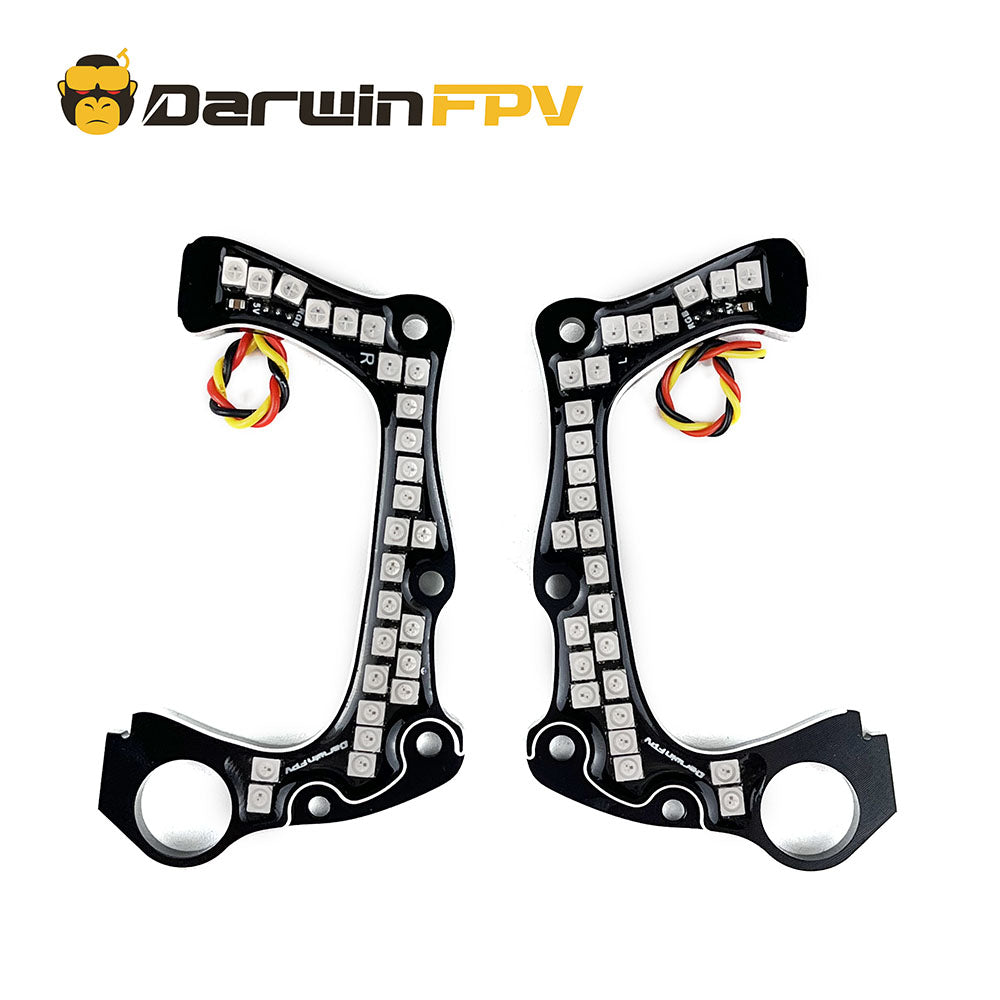

2 x RGB light board (1 left and 1 right, embedded in the aluminum part)
3 x M3*19*D5.5 outer hexagonal copper column (embedded in TPU print)
10 x M3*20*D7 nylon column (8 of them are embedded in float)

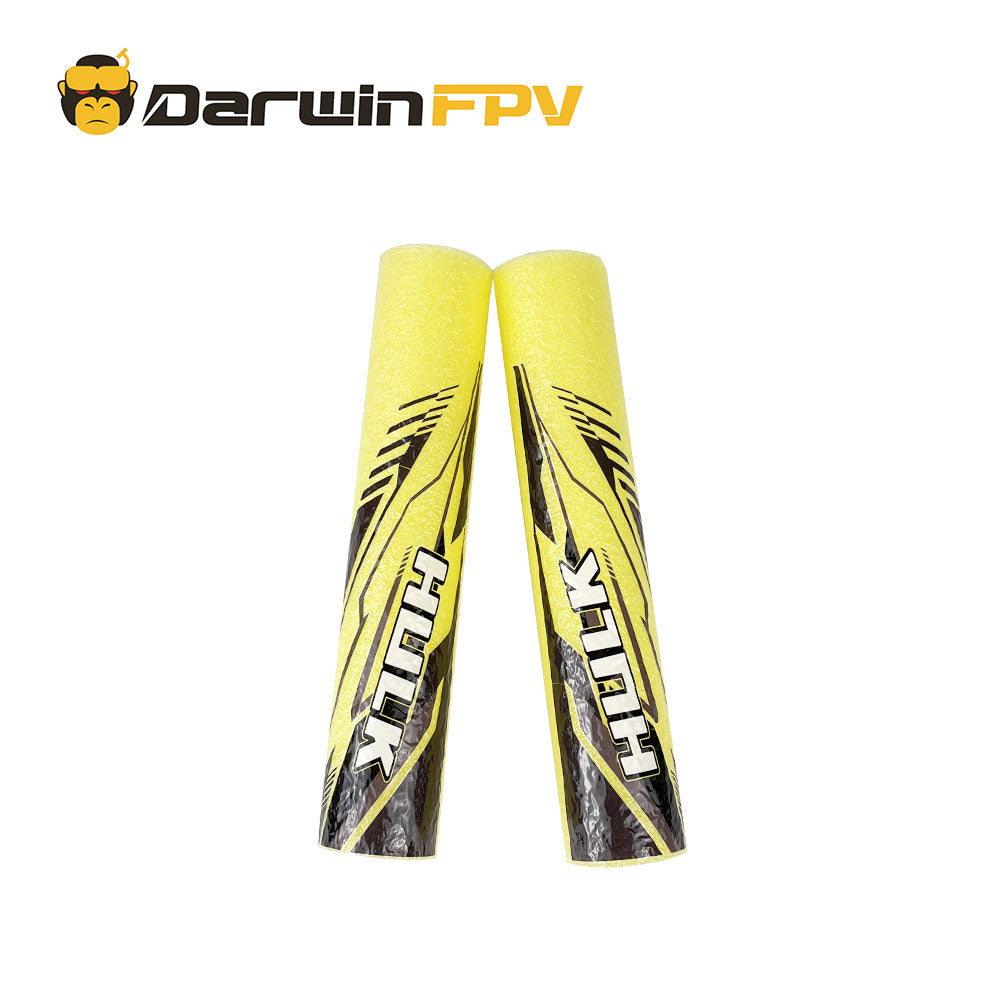

4 x float
1 x Waterproof O3 Case Mount Yellow
1 x receiver compartment yellow
1 x XT60 Mount Yellow
1 x TBS antenna vertical mount yellow
6 x 6mm black, silver and gold mixed flame retardant nylon braided snakeskin mesh tube (length: 45mm)
10 x heat shrink tube (diameter 16mm, length 10mm)
5 x 1.8*100mm nylon strsp
2 x black thin straws (diameter 3mm, length 100mm)
2 x yellow rubber caps (3mm diameter)
1 x 24-in-1 screwdriver set
1 x large sticker
