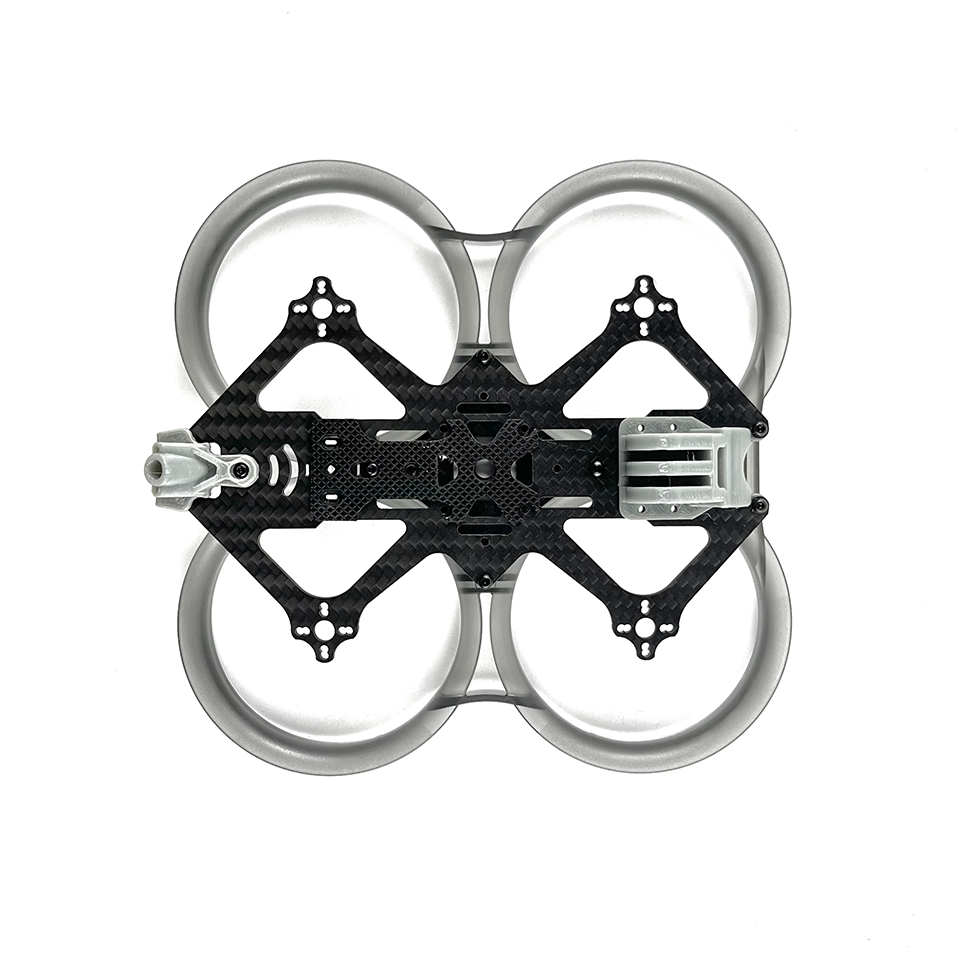

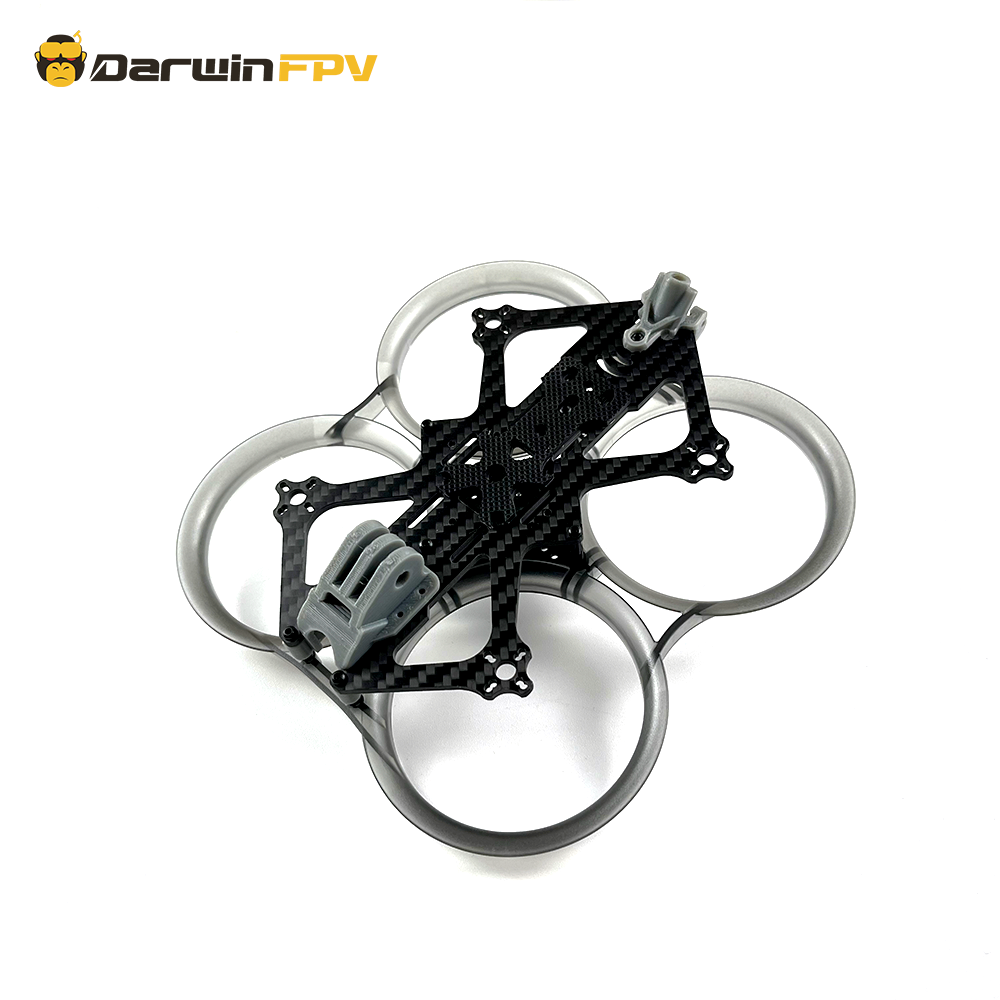

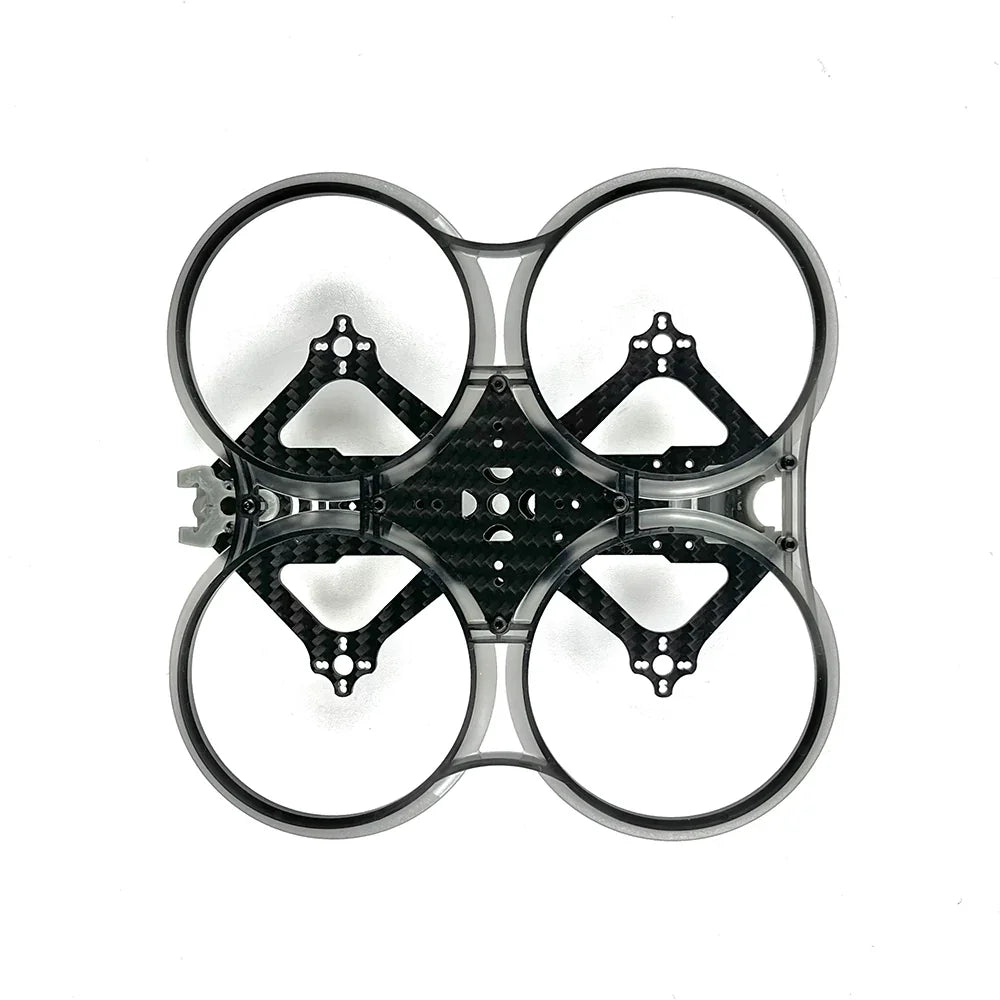

Darwin CineApe 25 Whoop Frame

The CineApe 25 frame is the first inverted 2.5-inch cinematic whoop frame of DarwinFPV. Frame is composed of upper and lower layers of carbon plates and high-strength injection molding ring, with an advanced appearance. In addition, to enhance the durability of the frame, we have also added additional reinforcement to the injection-molded boot, which now excels in crash protection.

Features:

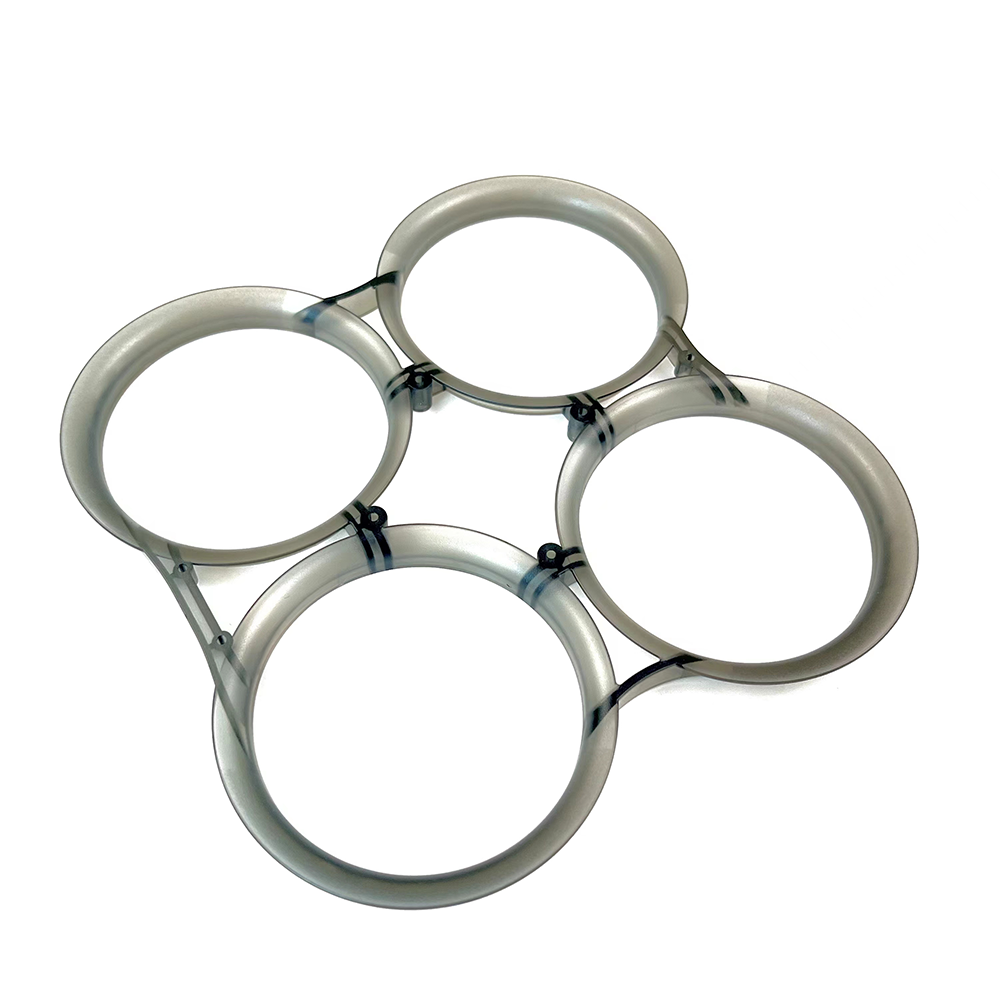

Comes with high-strength one-piece injection-molded propeller guard, which has higher safety, stronger and more durable frame, also reduce the probability of risk, so you have more confidence to fly.

It is used the front Type-C parameter adjustment port, with DARWIN parameter adjustment adapter board, easy to adjust parameters.

It comes with quick-release frame design only needs to remove 7 screws to separate the top plate and the injection molding guard, which can easily deal with the scene in which accessories need to be replaced urgently.

Compared with the same type of frames, our CineApe 25 frame has been added multiple battery strap mounting holes, compatible with 20mm stack mounting holes and 25.5mm AIO mounting holes. The battery anti-skid pad is designed to be extended, which avoids the trouble that the anti-skid pad at the back of the battery is too small to play a non-slip effect when installing the gopro.

The arms use the strong triangular structure, which is more durable.

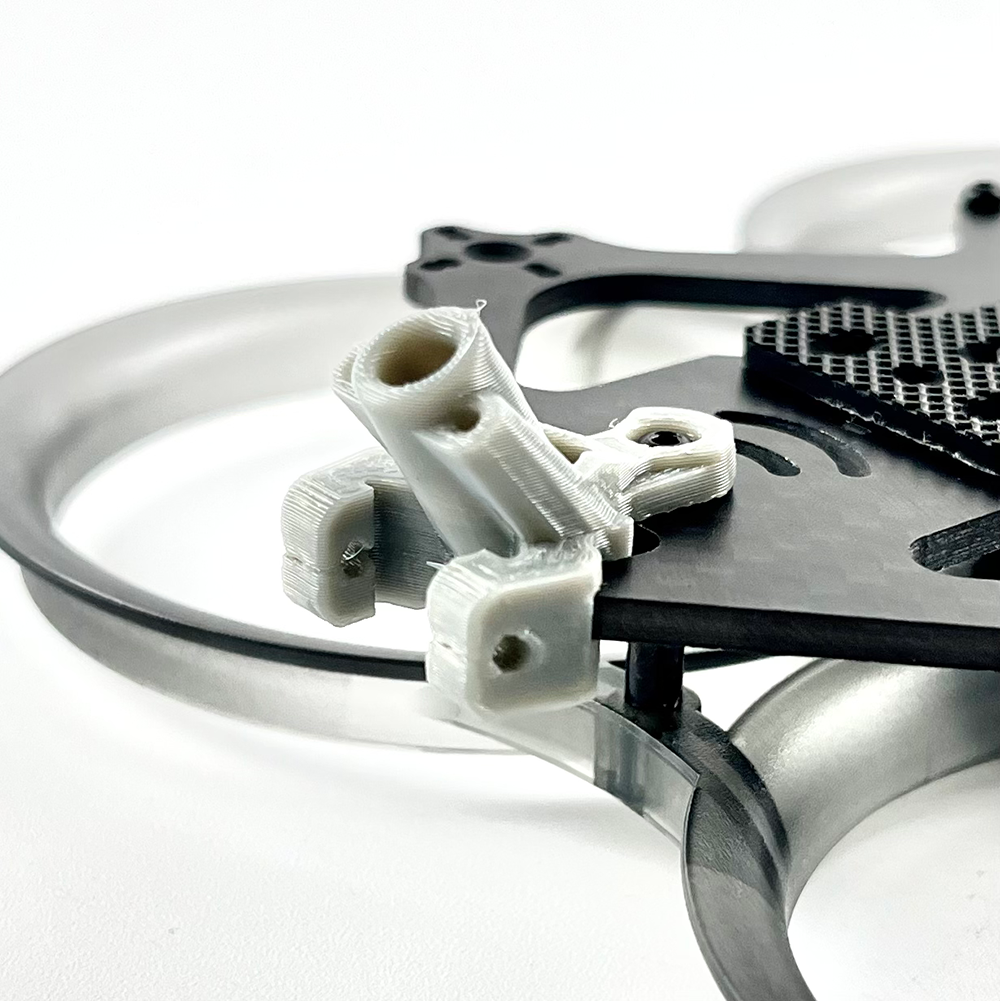

The integrated fixed design of the antenna print solves the problem of the traditional antenna moving easily and greatly optimizes the structure of the frame.

Specifications:

• Wheelbase: 112mm
• Top Plate Hole: 20mm x 20mm，25.5mm x 25.5mm

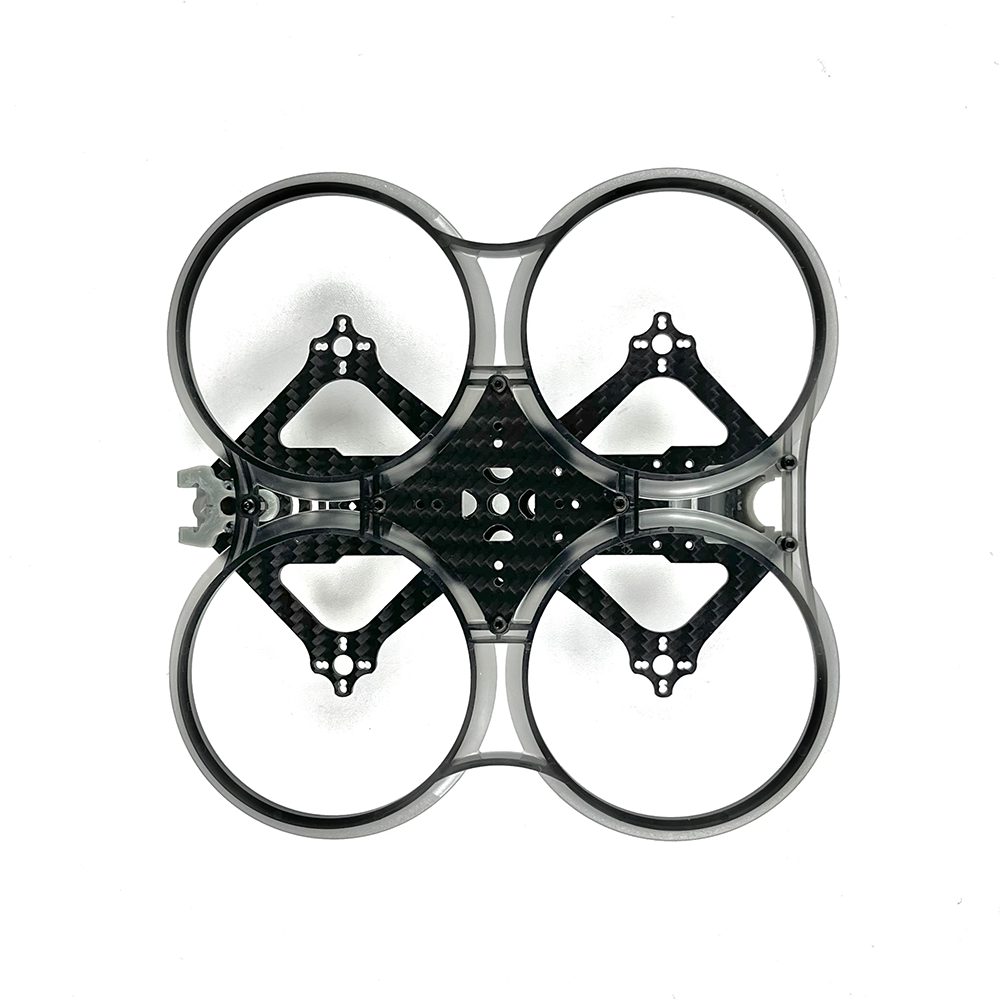

• Bottom Plate Hole: 28mm x 15mm（3 holes），20mm x 20mm，25.5mm x 25.5mm
• Motor Mounting Hole: 9mm、12mm
• Carbon Plate Camera Mounting Hole: 19mm
• 3D Print Camera Hole : 14mm

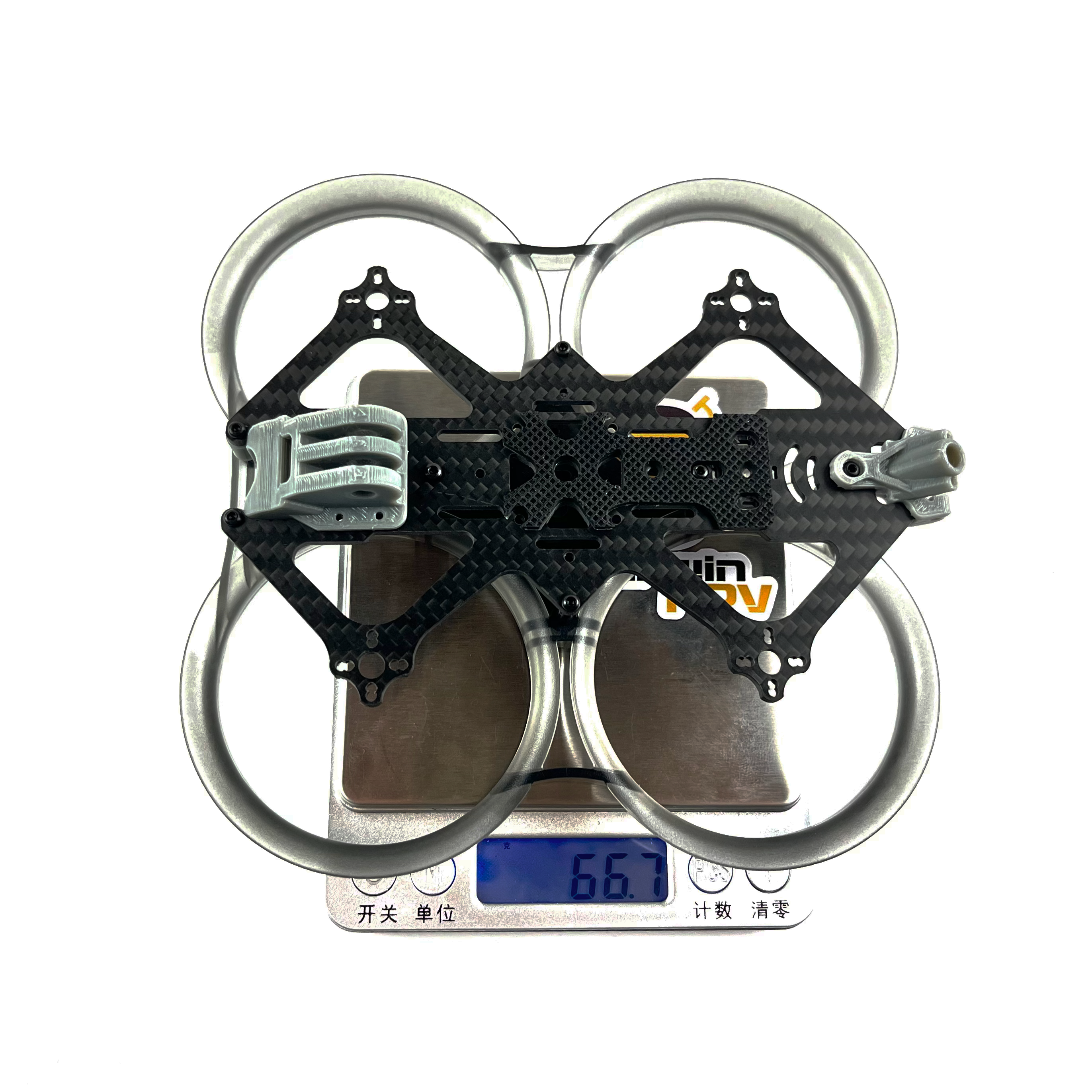

• Weight: 66.7g
• Top Plate Thickness: 2.5mm

Packing List:

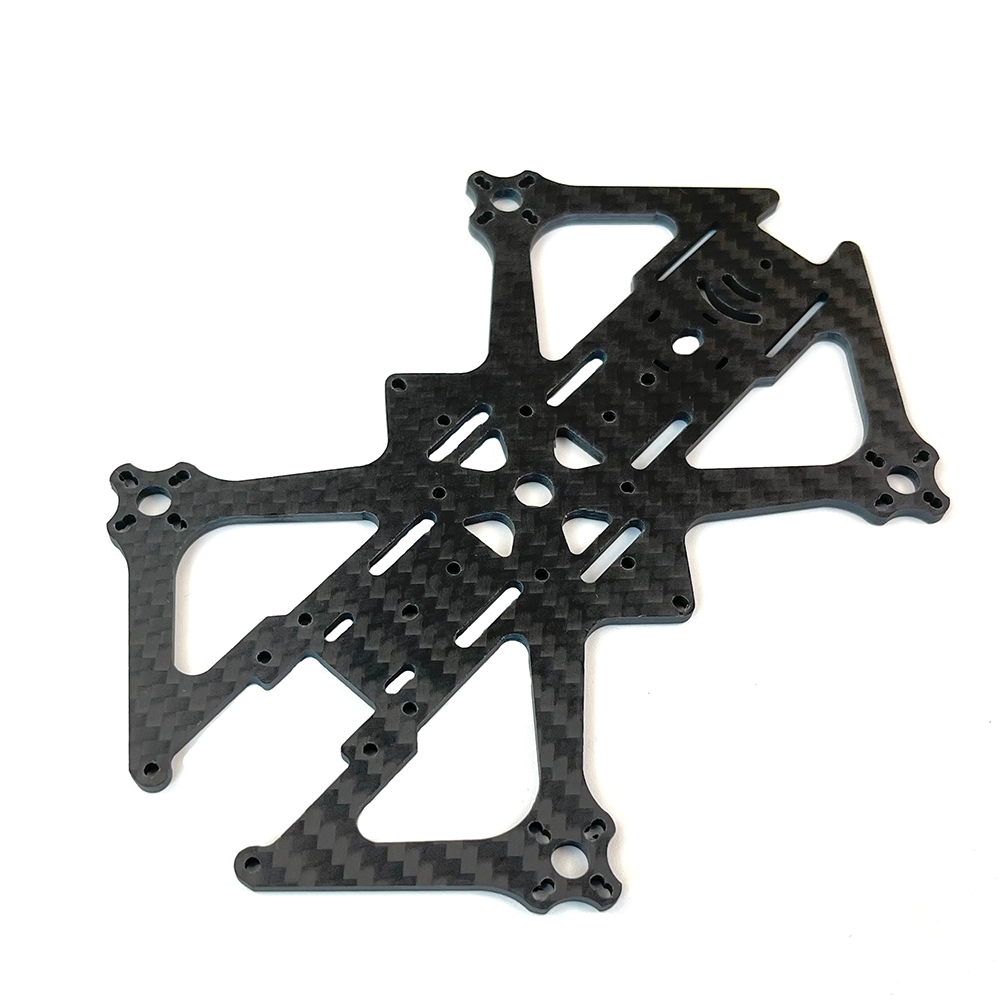

• 1 x top plate2.5mm

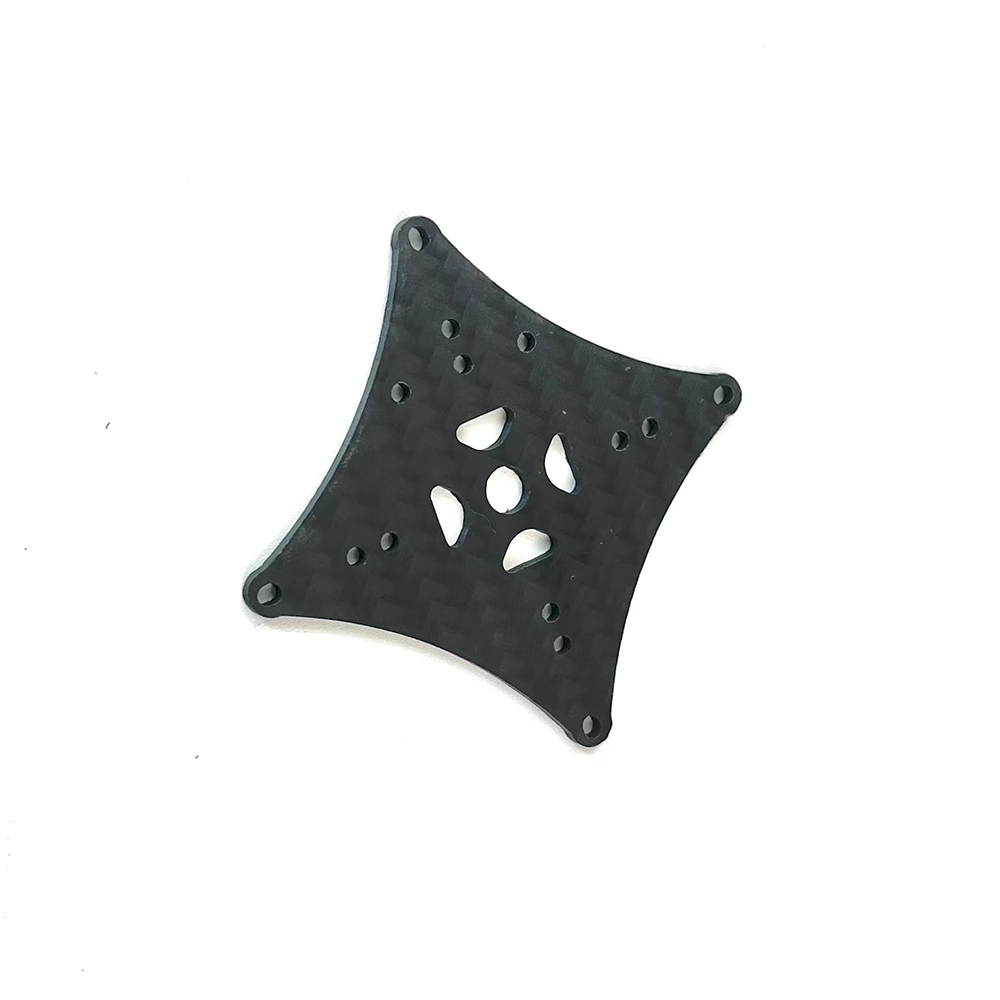

• 1 x bottom plate 2mm
• 1 x injection molding guard
• 1 x camera mount
• 1 x antenna mount
• 1 x battery anti-skid pad
• 2 x battery cable tie10 x 170mm
• 7 x M2 x 12mm copper standoff
• 4 x M2 nylon nut
• 6 x M2 x 6 hexagon socket head screw
• 5 x M2 x 7 hexagon socket head screw
• 3 x M2 x 10 hexagon socket head screw
• 4 x M2 x 14 hexagon socket head screw
• 1 x sticker
