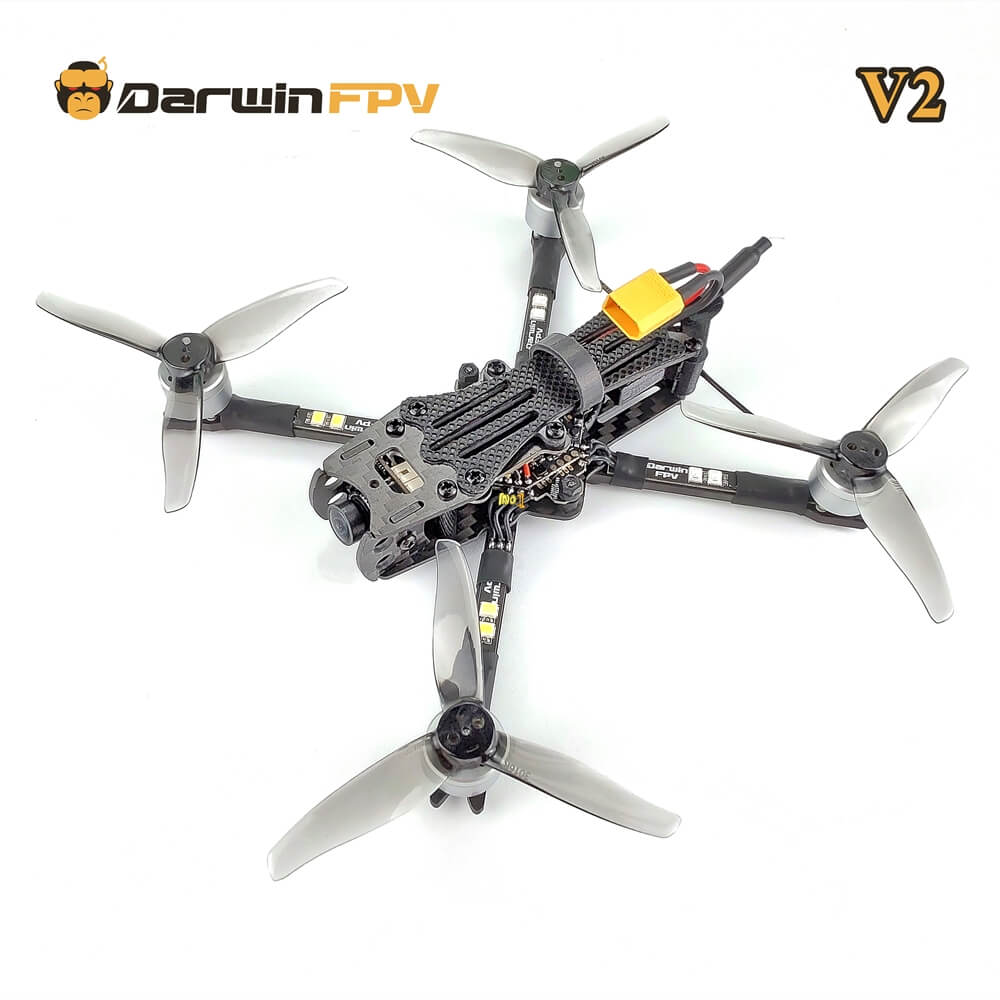

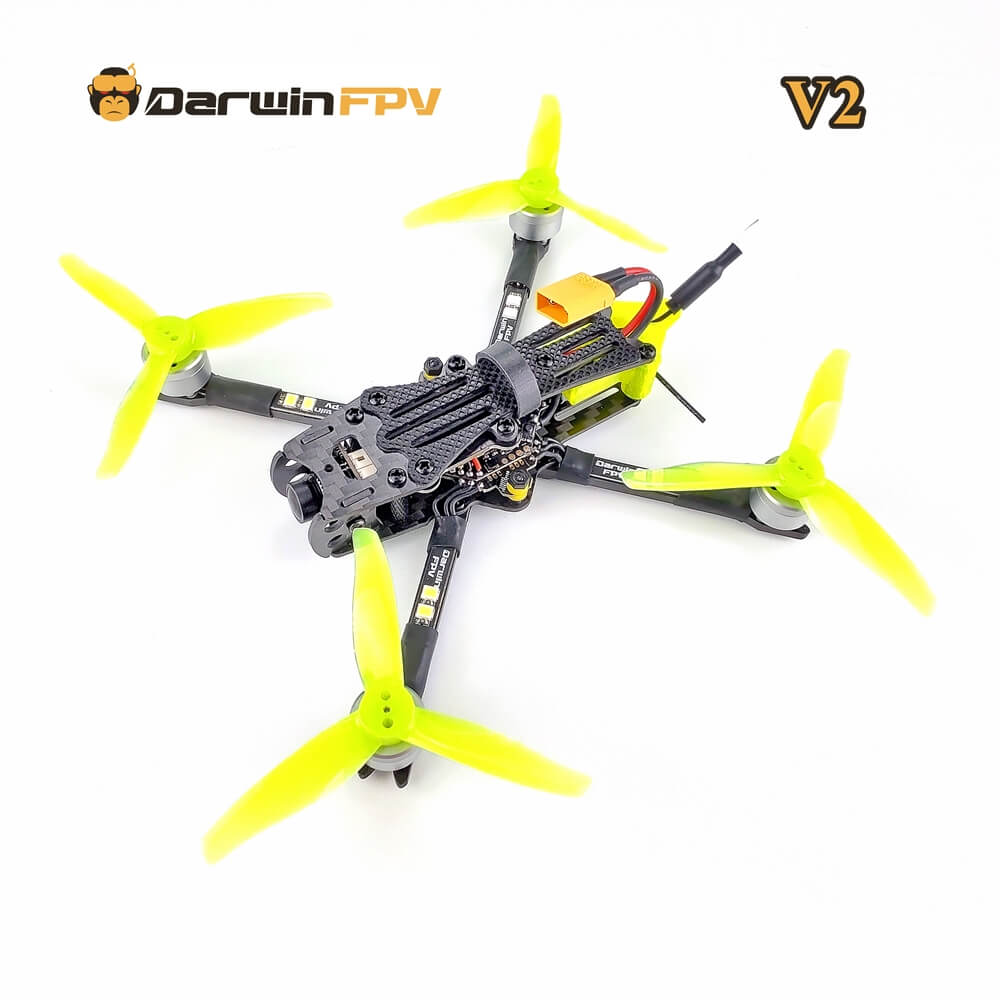

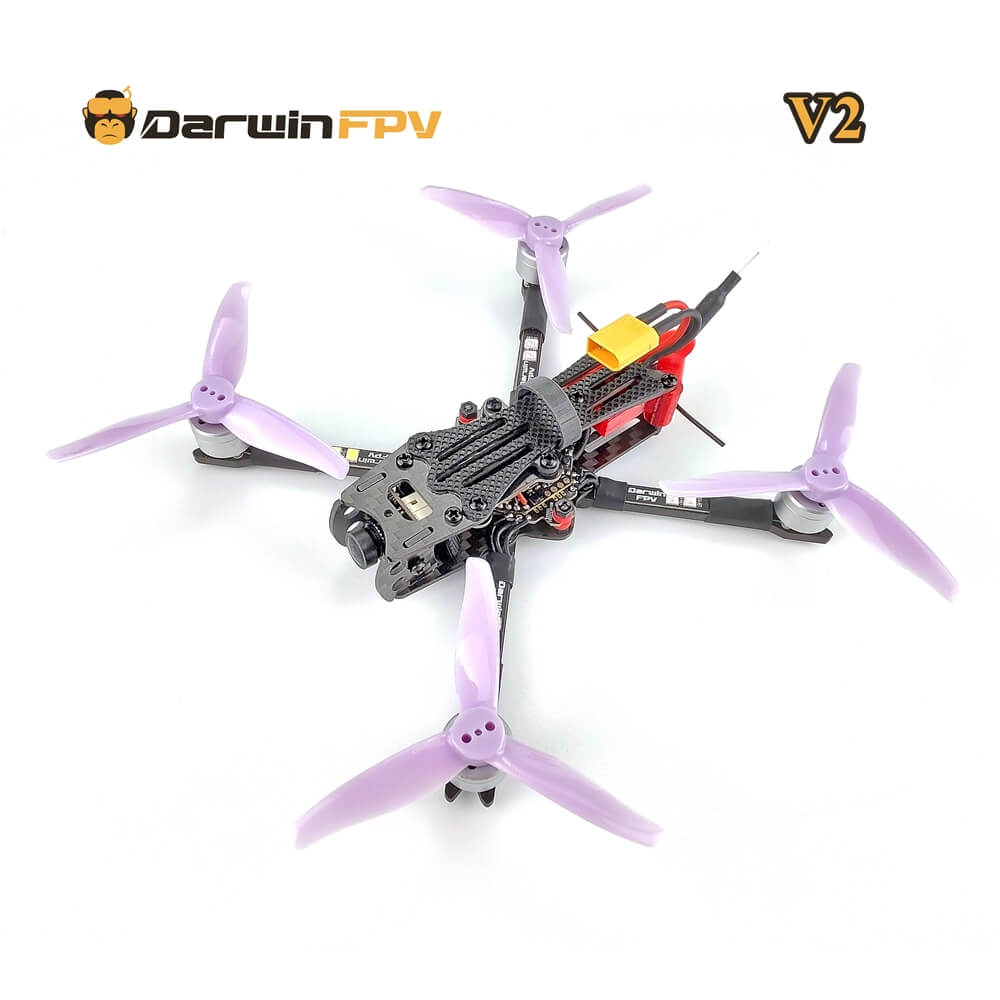

Darwin Baby Ape Pro V2 FPV Drone
We made seveal upgrades from the frame. First of all, nylon standoffs is upgraded to aluminum alloy standoffs, which strengthens the frame and stables structure.
Second, We added the receiver fixing bracket.
Third, we upgraded the arms. The arms are upgraded from 4 individual arms(2.5mm thicness) to 2 integrated arms(3.0mm thickness). It is more easy to disassemble, sturdy and durable.
Last, the V2 version only needs 4 screws to fix, and the arm can be replaced by removing 2 screws without removing the whole drone.
Specifications:
CADDX ANT Camera
Resolution:1200TVL
mage Sensor: 1/3" CMos Sensor
Input: DC 3.7-18V
TV System: PAL/NTSC
1104 4300KV 2-3S Brushless Motor
KV: 4300KV
Lipo cell: 2-3S
AIO 4 IN 1 15A BLHeli_S ESC
Input voltage: 1-3SLiPo
Continuous current: 15A
Pe ak current:17A (10S)
BEC output: no
Main control chip:EFM8BB21
Firmware upgrade: Supports Dshot600/Oneshot125
MOS: 3*3
F411 AIO Flight Controller
Main control chip: STM32F411
Integrated OSD
PPM/DSM/IBUS/UAR share: UART1-RX
IMU: MPU6500 (SPI)
Mounting holes distance: 25.5*25.5mm
Supports Betaflight firmware
5.8G 40CH 0mW/25mw/200mw switchable VTX
Supports TBS SmartAudio
Transmitting power: 0mW/25mW/100mW/200mW switchable
Channel: 40CH
Full video format: NTSC/PAL
Input voltage: 7V~24V
Power dissipation: +12V/600MW
Size: 25×20×6mm
Weight: ≤3.2g (except antenna)
With copper pipe mini antenna (ipex antenna)
3016 3-blade propelle
Mounting hole: 1.5mm
Center thickness: 5.5mm
Quantity: 2 pairs
Weight: 1.18g a pair
Package:
| Baby Ape Pro V2 PNP |
1*Baby Ape Pro V2 Drone 2*3016 Propellers (pair) 1*Set of Screws |
| Baby Ape Pro V2 BNF( ELRS Receiver) |
1*Baby Ape Pro V2 Drone 2*3016 Propellers (pair) 1*Set of Screws 1*ELRS Receiver |
| Baby Ape Pro V2 BNF(R81 Receiver) |
1*Baby Ape Pro V2 Drone 2*3016 Propellers (pair) 1*Set of Screws 1*R81 Receiver |
|

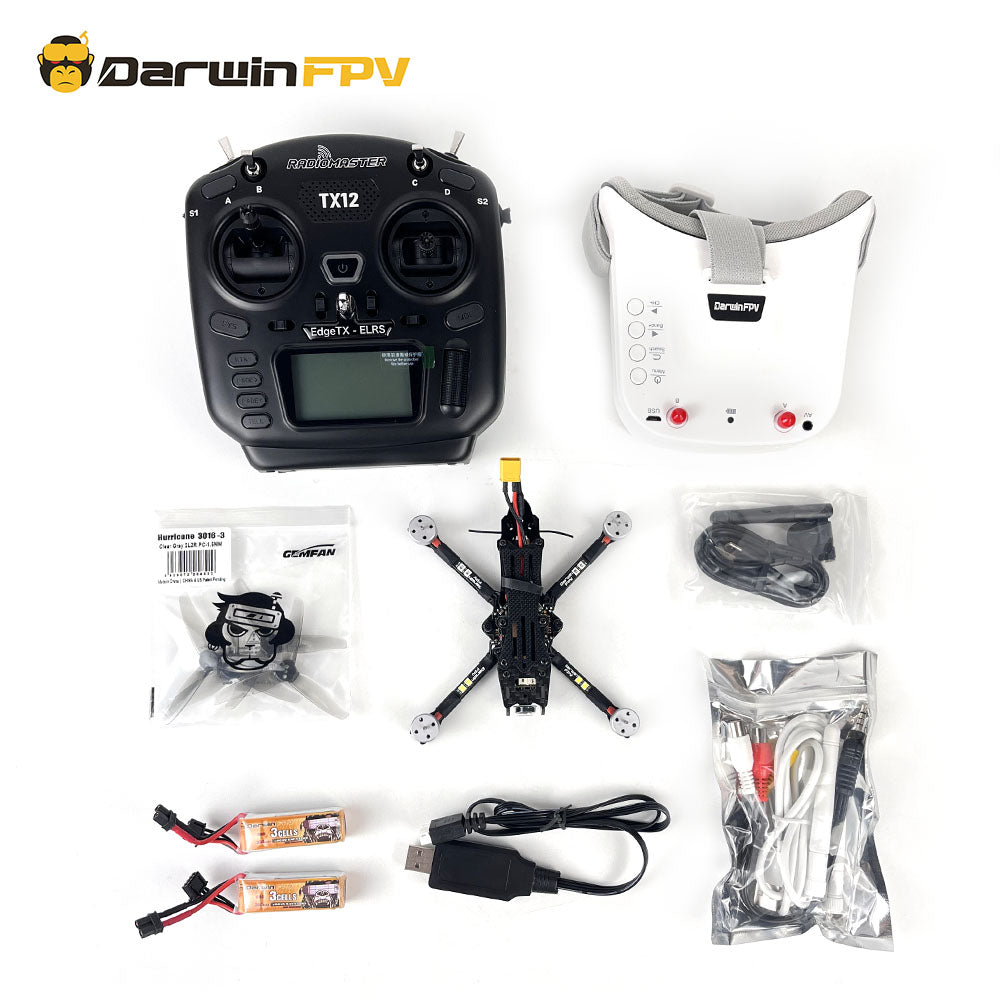

Baby Ape Pro V2 RTF( ELRS Receiver) |
1*Baby Ape Pro V2 Drone 2*3016 Propellers (pair) 1*Set of Screws 1*ELRS Receiver 1*TX12 Mark II ELRS Radio Controller 1*Charger 1*Goggles 2*Batteries |
| Baby Ape Pro V2 RTF(ELRS Receiver) |
1*Baby Ape Pro V2 Drone 2*3016 Propellers (pair) 1*Set of Screws 1*ELRS Receiver 1*Zorro ELRS Transmitter 1*Charger 1*Goggles 2*Batteries |
