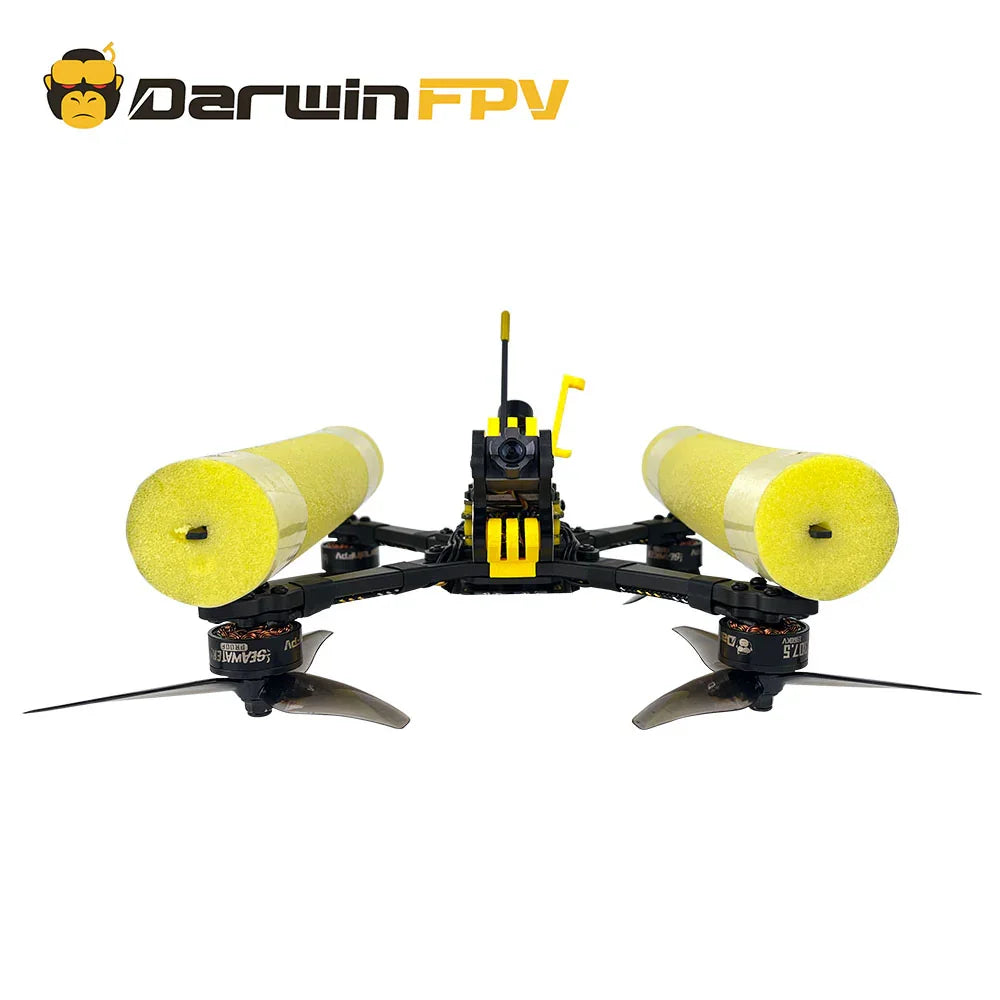

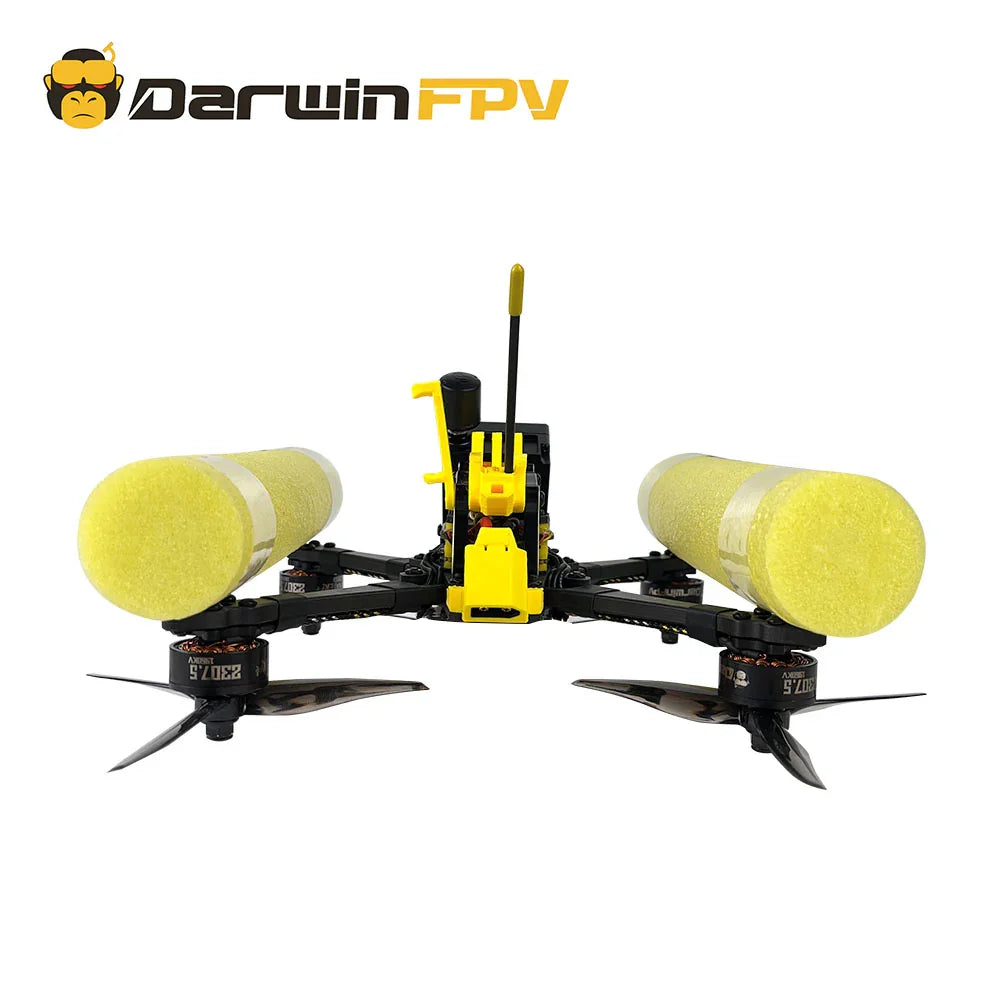

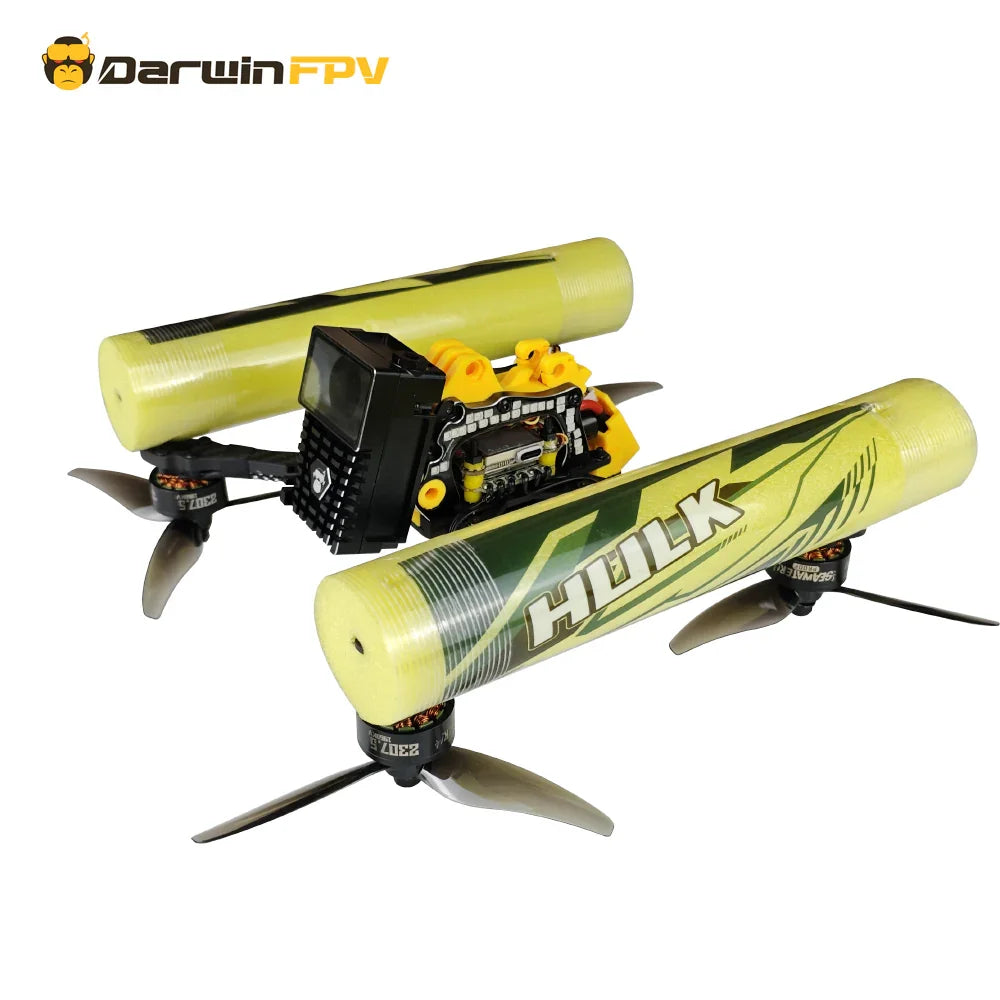

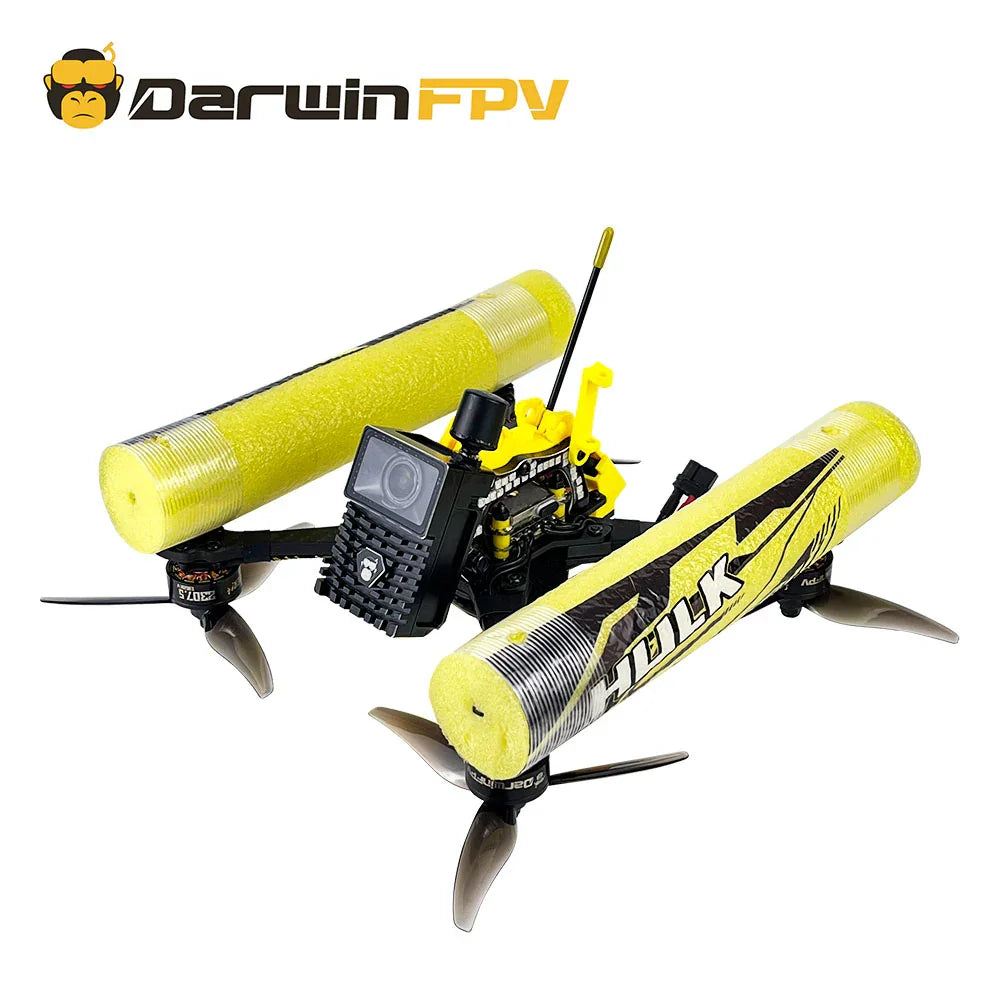

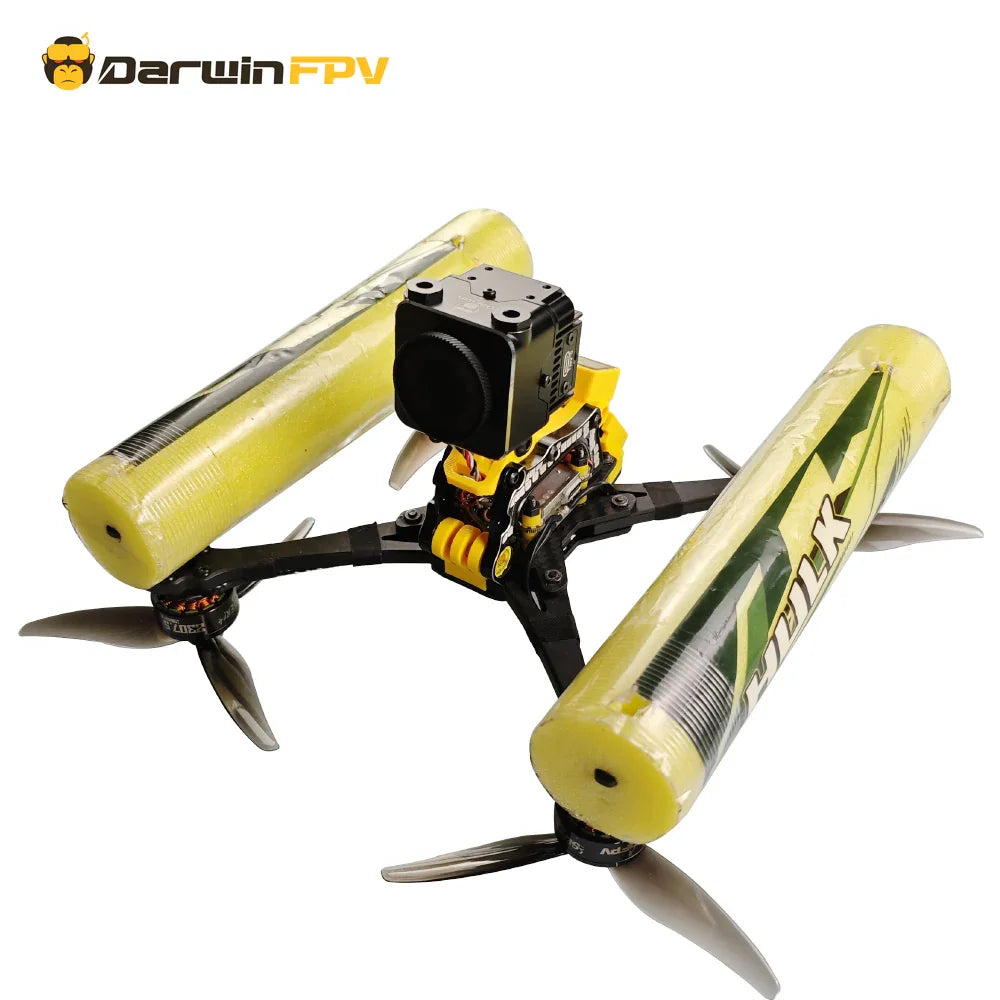

DarwinFPV HULK Ⅱ Waterproof FPV Drone
Summary
DarwinFPV HULK Ⅱ is an upgraded waterproof cinematic fpv drone based on the first generation. It is equipped with DJI O3 Air Unit and boasts a remarkable 4K/120Hz recording capability. It comes with 2307.5 motor and 100A ESC, which provides ample power and enables compatibility with heavier action cameras. Additionally, its F7 flight controller supports a range of receivers, including TBS Crossfire/ELRS.
Remarkably, the dimensions, weight, and configuration of the HULK Ⅱ align seamlessly with those of conventional 5-inch FPV drones, offering an identical flying experience. However, what sets it apart is its exceptional IP67 waterproof rating, allowing users to capture breathtaking moments in watery environments, including seawater, with absolute peace of mind.
So, Considering this, why not invest your money in a waterproof and resilient FPV drone like the HULK Ⅱ, offering unrivaled durability and protection compared to standard fpv drones?
Features
- Boasting an IP67 waterproof rating, it remains unharmed and fully functional even when immersed in 0.5 meters of water for a duration of 30 minutes.
- 2307.5 motor + 100A ESC power system, while mounting O3 and Gopro is still extremely powerful
- Featuring an auto-flip function, this drone guarantees a 100% signal reception even when submerged in water, eliminating the risk of any signal loss and potential drone loss.

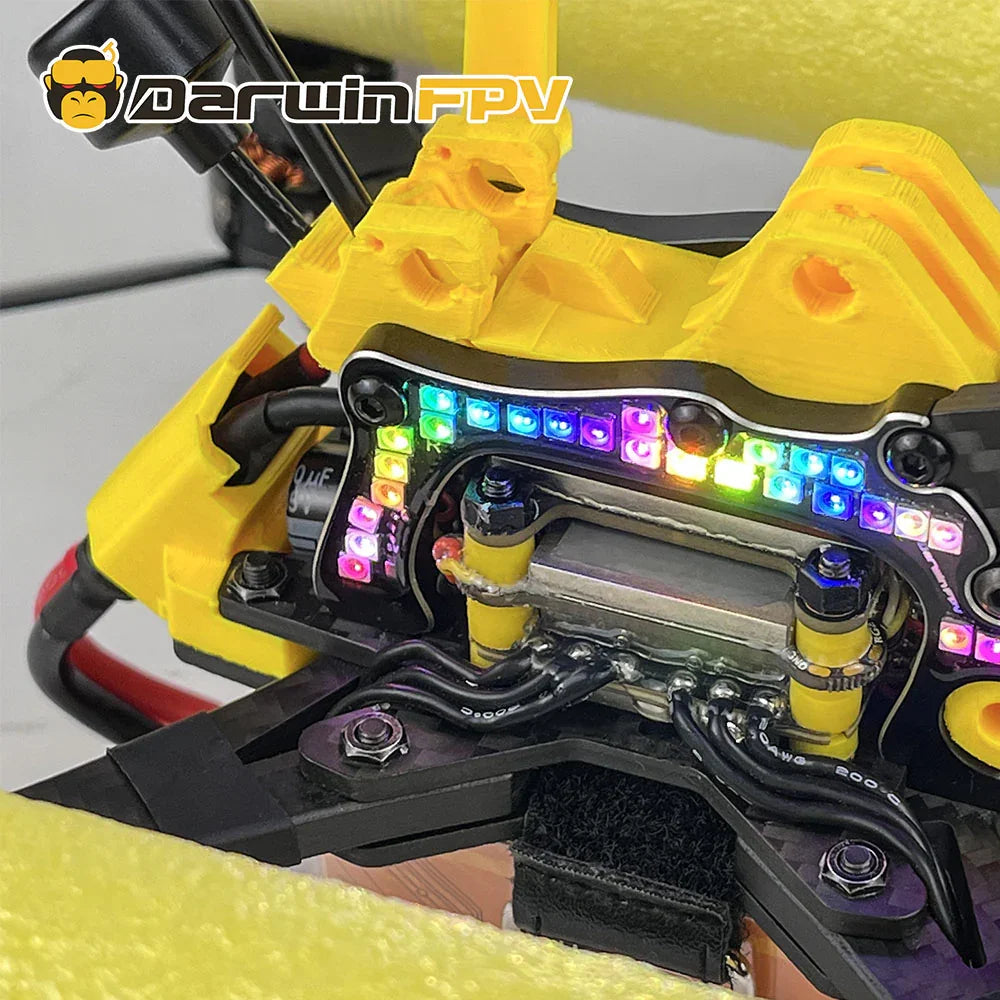

- Cool RGB lights on the side of the drone
Darwin Care Card:
This card is only valid when order the HULK Ⅱ and the care card at same time, order this card only will not work. This card is only work for analog drone, not include the O3 Air Unit.
With this card you can have 2 times to get 25% discount code on the HULK Ⅱ drones. No matter what problems of your drone(wrong solder, be burned, lost, out of contract or whatever) and you only need to pay 75% of the cost to have a new one for the next orders, which can be used twice within 1 year. The discount code is only work for the drone and not work for the all HD VTX and camera.
Specifications
| Model | DarwinFPV HULK Ⅱ Analog | DarwinFPV HULK Ⅱ O3 | |
| Video | Non( Can mount action camera) | 4K/120Hz | |

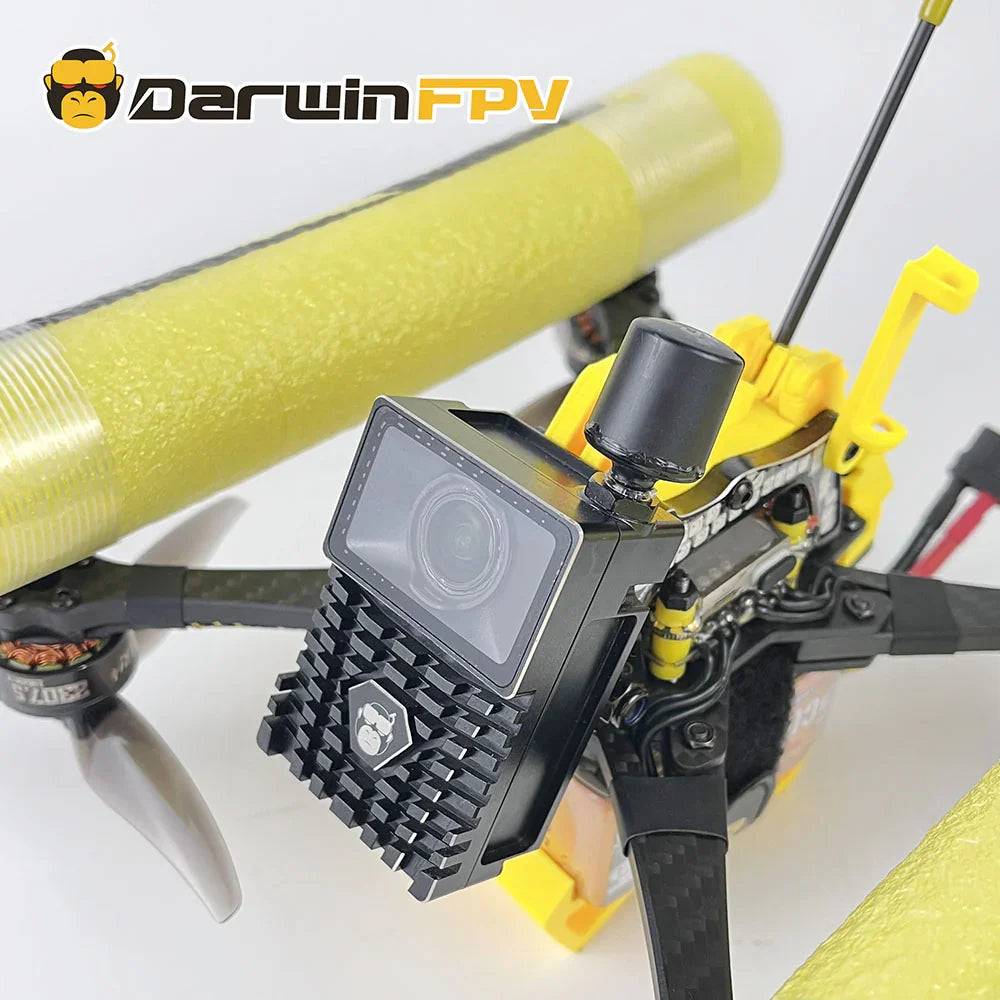

| Camera | Darwin "HULK" Waterproof Camera | DJI O3 Air Unit Waterproof HD Armor | |
| VTX | Darwin "Cement" 5.8G 1000mW Waterproof VTX | ||
| FC | DarwinFPV "Cement" Ultra-Durable F7 Waterproof FC | ||
| ESC | "Cement" 100A 3-6S BLHeli_32 128kHz 4in1 | ||
| Receiver | TBS Nano/ELRS/PNP (Reserved 4Pin plug, wire sequence: GND black, 5V red, RX6 yellow, TX6 white) |
||
| GPS | Non | ||
| VTX Antenna | 5.8G MMCX 30mm Antenna | DJI O3 Original Antenna | |

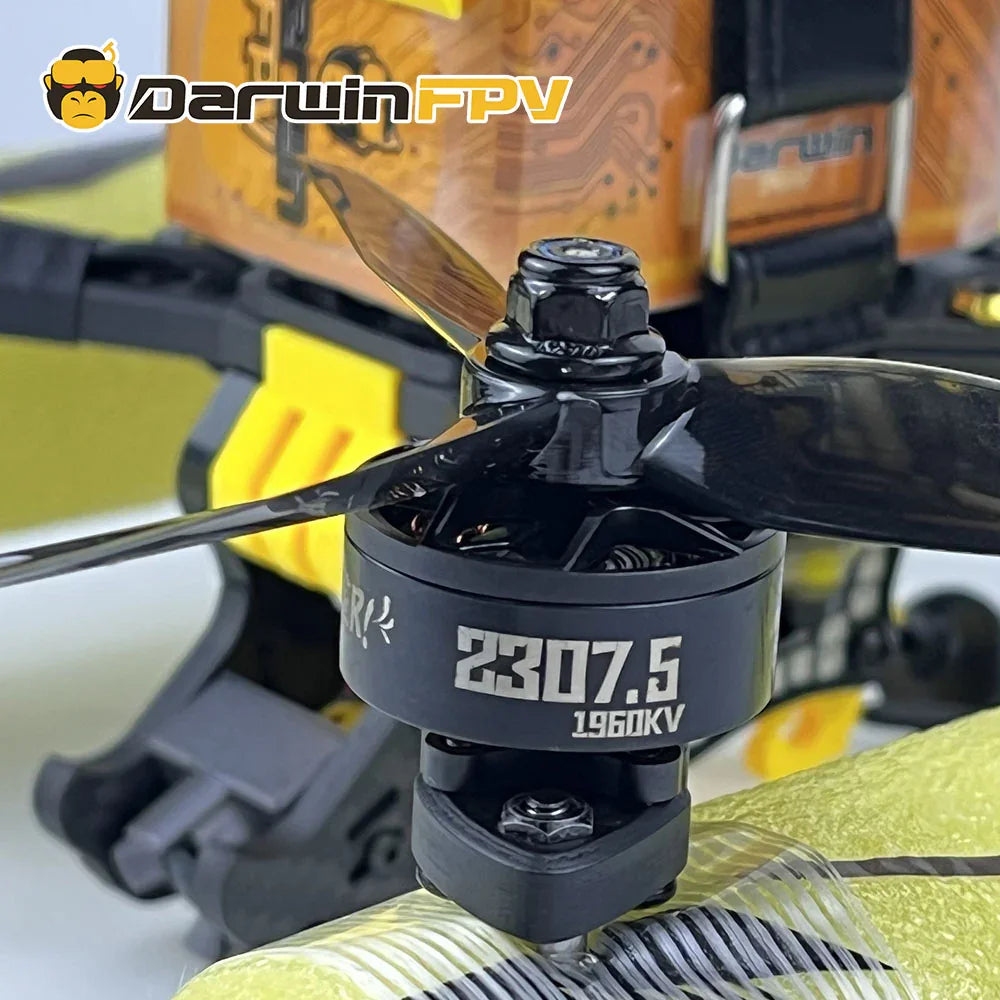

| Motor | DarwinFPV "Seawater-Proof" 2307.5-1960KV | ||
| Propeller | GEMFAN 51466-3 Gray | ||
| Frame Type | Ture-X | ||
| Wheelbase | 227mm | ||
| Arm Thickness | 5.5mm | ||
| Maximum Total Take-off Weight On Water | 1098g | ||
| Farthest Flight Distance (No interference at the beach, tested with original antenna) |
3km | 10km | |
| Maximum Horizontal Speed | 179km/h | ||
| Maximum Take-off Altitude | 3200m | ||
| Maximum Wind Resistance Level | 5 levels | ||
| Operating Temperature Range | -10℃-40℃ | ||
| Flight Time (Using 6S 1300mAh 120C Battery) | Parallel Cruise | 10 mins | The data is for reference only, and factors such as different environments, usage methods, and firmware versions may have an impact on the test data |
| Parallel Cruise Load GoPro8 | 7.5 mins | ||
| Freestyle | 2.5 mins | ||
| Recommended Battery | 6S 1300-1500mAh 120C Up | ||
| Dimensions(Without Propeller) | (L×W×H): 220mm×220mm×98mm | ||

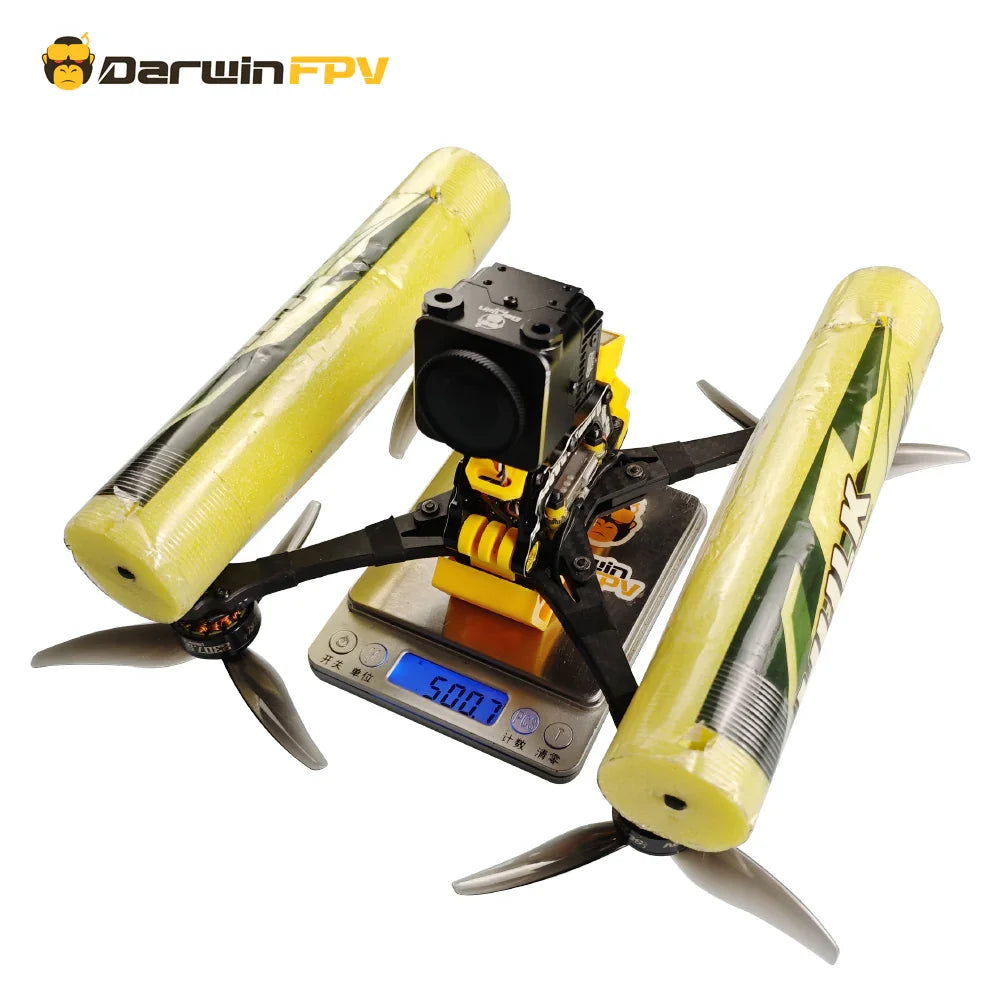

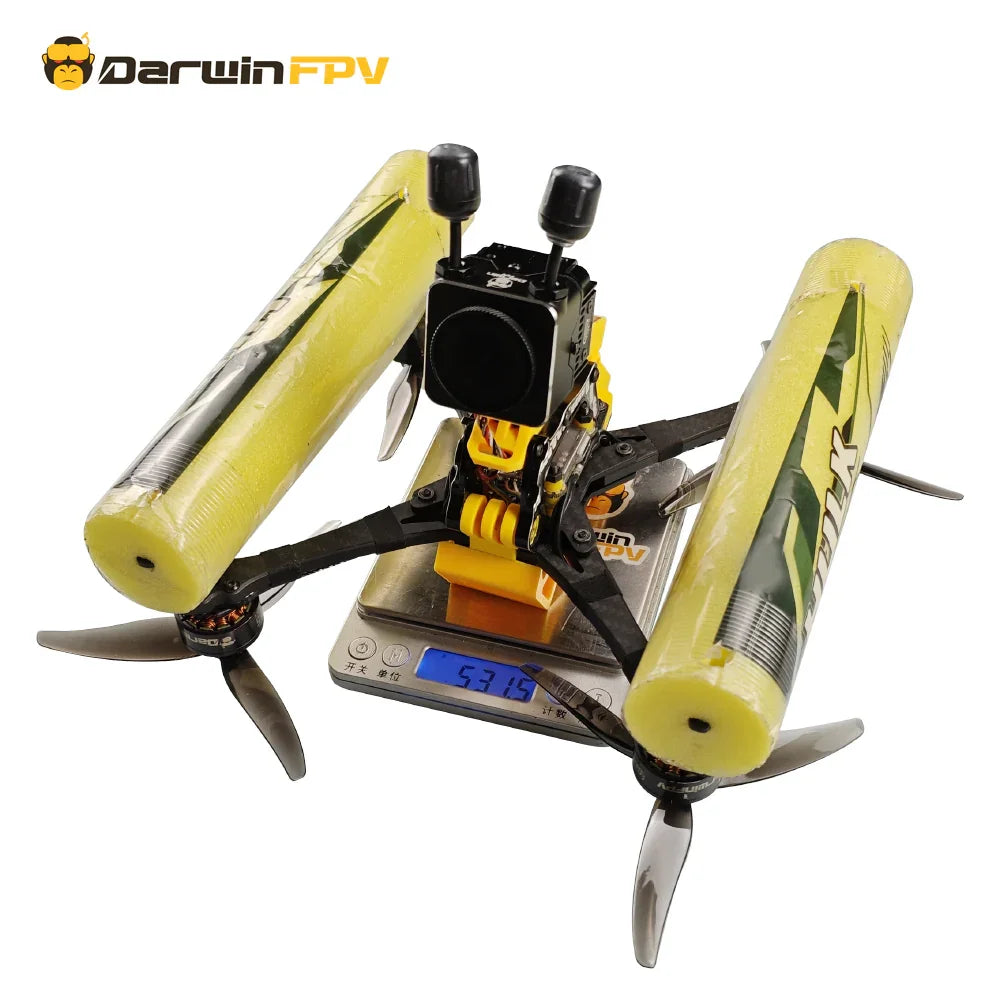

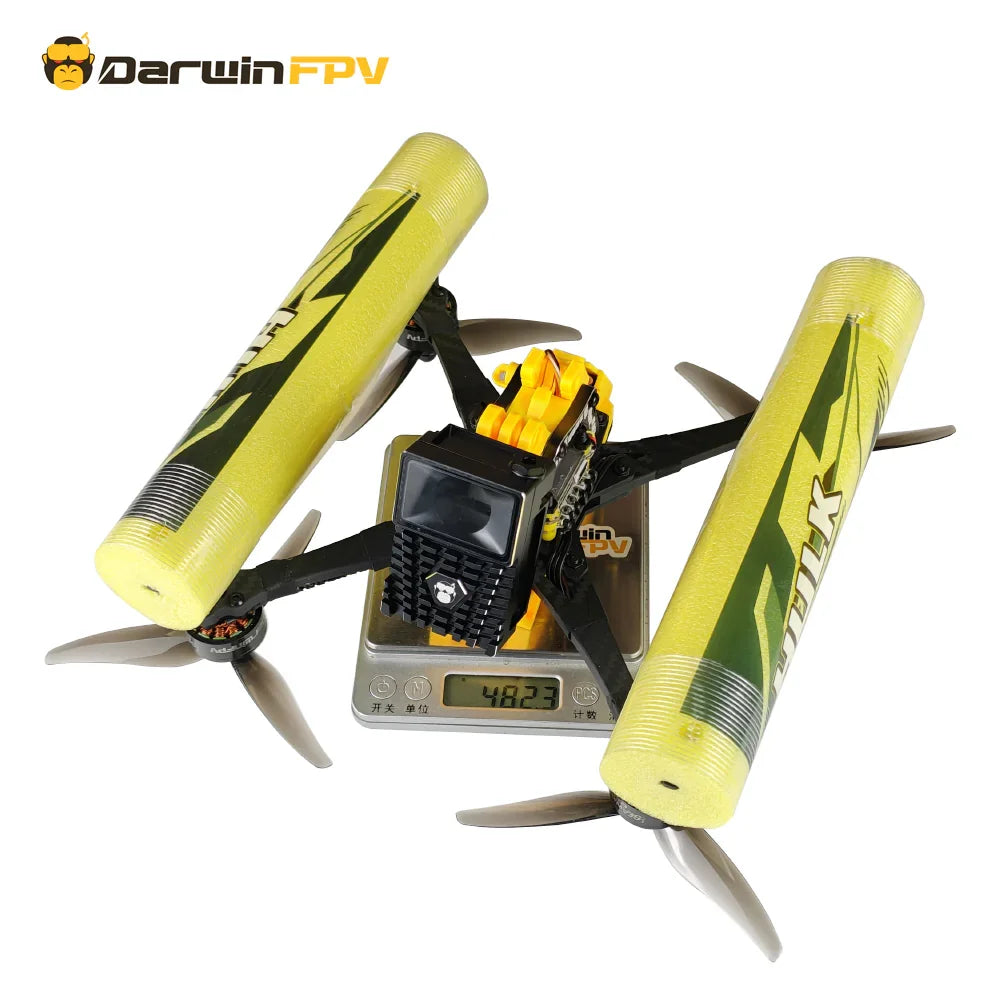

| Weight(With Propeller) | 477.7g±5g | 562.0±5g | |
| Package Size | 23mm×23mm×10.4mm | ||
| Weight(With Package) | 930.0g±5g | 1008.5±5g | |
Packing List
4 x GENFAM 51466-3 propeller (2CW, 2 CCW)
1 x DarwinFPV Sticker(120mm*120mm)
1 x Propeller removal tool
1 x Screwdriver set
2 x Black thin straw(Diameter 3mm, length 100mm)
2 x Yellow rubber cap (diameter 3mm)
2 x Battery strap Black velcro(20*260mm)
5 x Nylon tie(1.8*100mm)
1 x 3D accessories (TPU battery landing gear yellow)
1 x Spare screws pack
