DarwinFPV 'Cement' Ultra-Durable BLHeli_32 AM32 12S 8S 80A Waterproof ESC

The DarwinFPV "Cement" Ultra-Durable BLHeli_32 80A Waterproof ESC (Electronic Speed Controller) is a top-tier offering from the DarwinFPV team, tailored for professional-level pilots.
At its core, this ESC was conceived to provide X-CLASS professional FPV (First-Person View) drone pilots with unparalleled reliability, with cost being a non-factor. As such, we have drawn inspiration from industrial-grade drone ESC design philosophies, ensuring industry-leading standards across IP protection ratings, electronic component selection, and comprehensive circuit protection functions.
Thanks to its IP67 full waterproofing, compact size, and interchangeable BLHeli_32/AM32 firmware capabilities, it has garnered widespread adoption among fanatical users for various application scenarios beyond its initial intention.

Naturally, DarwinFPV has always been renowned for its exceptional value for money, and this ESC is no exception. Leveraging our streamlined supply chain and production efficiency, we've managed to offer this ESC at a price that's one-third cheaper than comparable products, despite utilizing the finest materials and craftsmanship.

Features

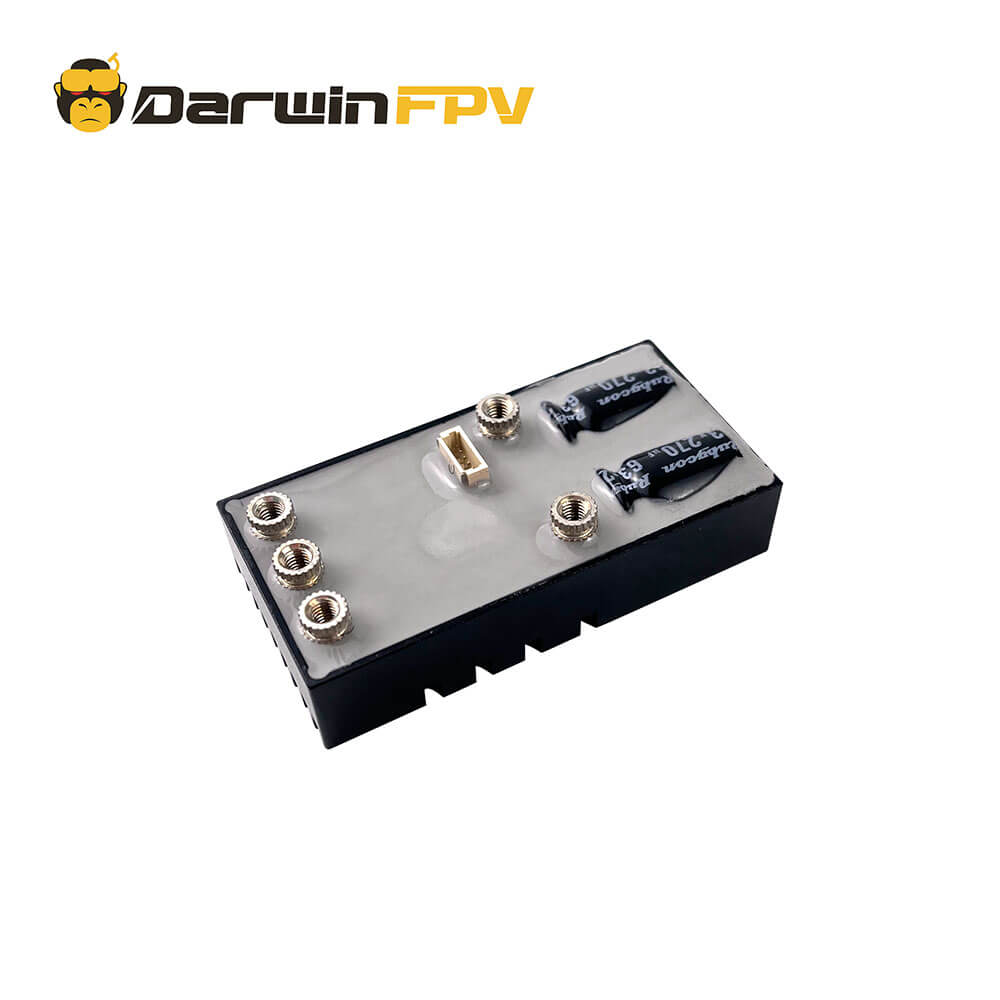

1. The ESC employs a fully potted encapsulation process, achieving an industrial-grade IP67 protection rating, making it waterproof, dustproof, and shock-resistant, effortlessly tackling various harsh environments.

2. Boasting a 400A continuous current MOSFET, a 32-bit F4 processor, a 4oz thick copper PCB, customized busbar thermal copper bars, and a CNC aluminum alloy heat dissipation shell, the ESC is constructed with virtually all top-tier components, ensuring superior current endurance, reliability, and durability.

3. Comprehensive protection features including current protection, temperature protection, low-voltage protection, start-up protection, stall protection, and low-speed power protection safeguard the ESC, effectively extending its service life.

4.The power cord and motor wire are fastened with screws, which offers stronger overcurrent capacity and ensures greater sturdiness that prevents them from being torn apart, compared with soldering

5.Equipped with the final version of the BLHeli_32 firmware, it represents the most powerful and feature-rich firmware available. Currently, BLHeli_32 firmware authorizations have ceased, making each unit a collector's item – once sold, they're gone!

6. Supporting a wide range of throttle protocols including PWM/Dshot/Proshot/Multshot/Oneshot, with an additional potentiometer speed control version, it caters to virtually all control methods.

7.Compatible with various motors, it's ready to run right out of the box, with factory default settings suitable for most application scenarios.

8. Additionally, it can be flashed with AM32 firmware for use in RC car ESCs, offering high playability. (Note: When used for car ESCs, a cooling fan is recommended for optimal performance.)

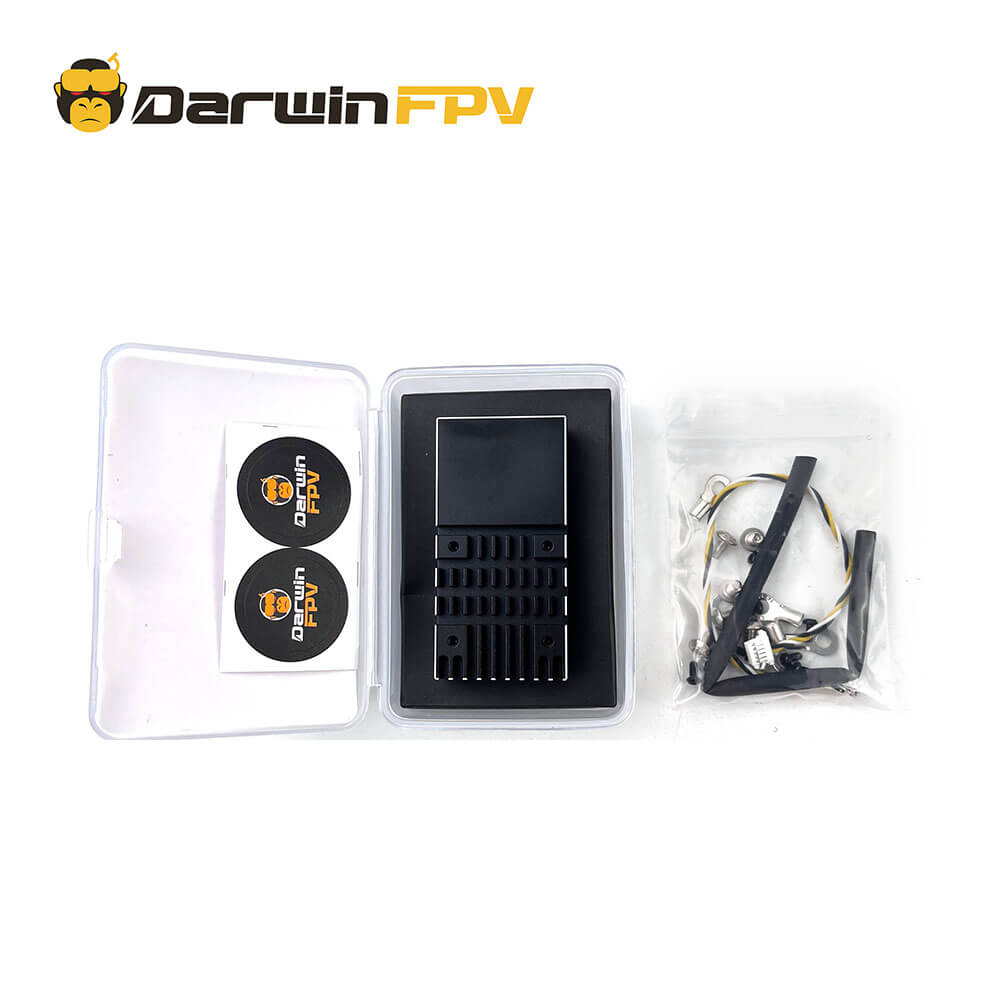

Packing list

1 × 12S 80A Waterproof  ESC
1 × Signal line（SH1.0-5P）
1 x ΦHeat shrink tubing (black)
6 × M2*4 316 Hexagon socket stainless steel screws
6 × M3*5 Nickel plated hexagon socket screws
6 x M3 inner O type ring terminal
