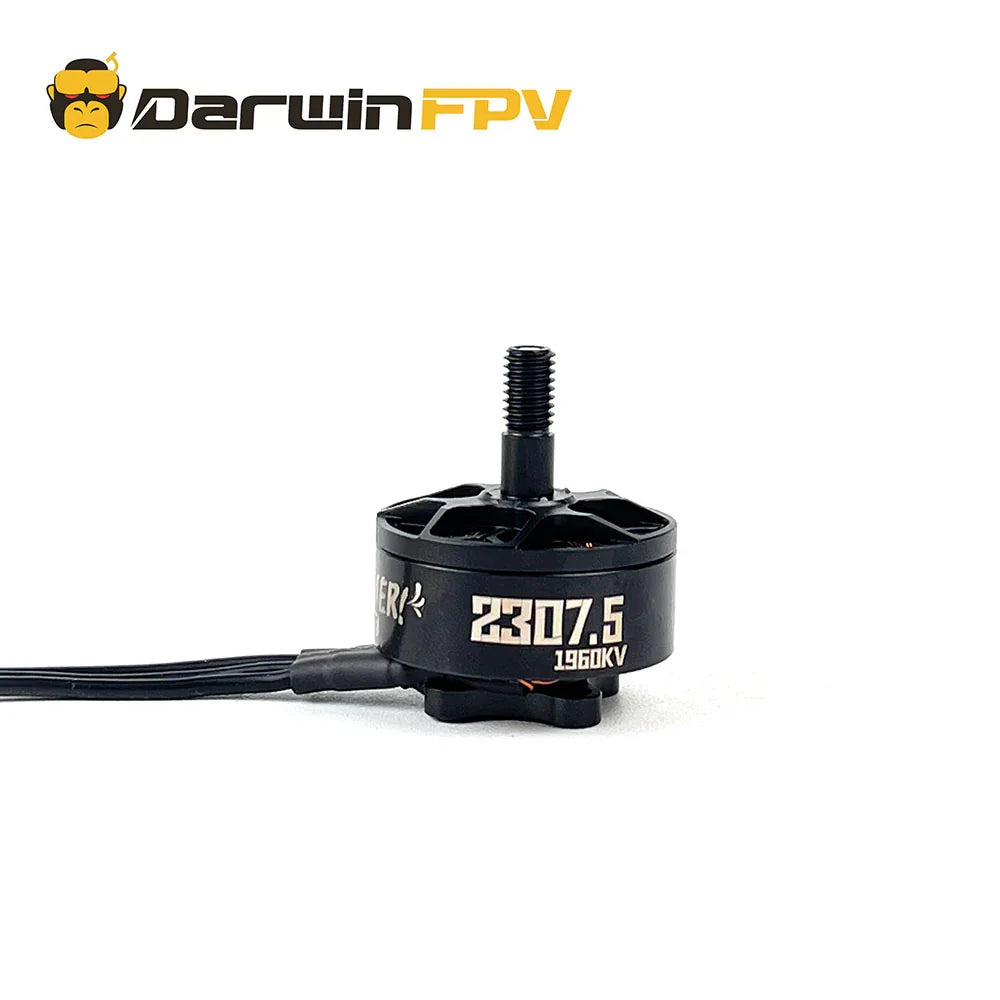

Darwin Seawater-proof 2307.5 Motor

The Darwin seawater-proof 2307.5 motor is designed specifically for underwater shooting scenes. It has been extensively optimized for waterproofing, allowing it to withstand soaking in seawater without any concerns about damage. This makes it the only motor in the FPV drone industry that is truly seawater resistant!

Features:

1.Our motor, the Darwin seawater-proof 2307.5, goes through a series of processing steps such as magnet oxidation, spindle insulating paint, and stainless steel bearings. These meticulous processes ensure that the motor can continue to operate normally even after being soaked in seawater for 24 hours.
2.In comparison to traditional motors, the Darwin seawater-proof 2307.5 features a larger spindle size. This design enhancement enables it to generate higher torque and operate with greater efficiency.

Specifications:

Model: Darwin Seawater-proof 2307.5 Motor
KV :1960KV
Stator Dimension : Φ23mm × 7.5mm

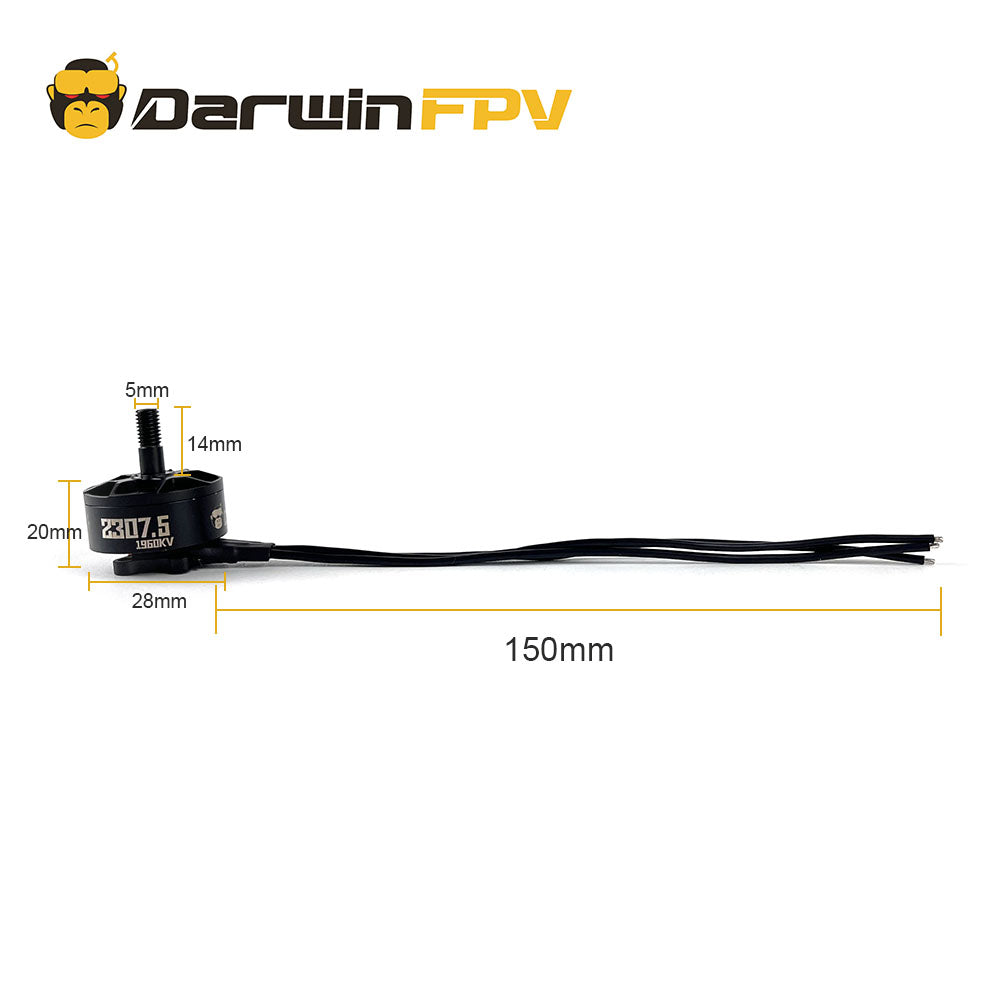

Dimensions : Φ28 mm × 34mm
Rated Voltage : 24V（6S LiPo）
Idle Current : 2.16A/24V
Maximum Current :  40A
Maximum Power :  960W
Framework : 12N14P
Prop Shaft : Φ5 mm × 14mm
Interphase Resistance : 69mΩ
Bearing Specification : Φ4mm × Φ9mm×4mm
Rotor Specifications : Split aviation aluminum rotor
Magnet : N52H
Winding : Single strand copper winding
Lead Wire Size : 20AWG*150mm

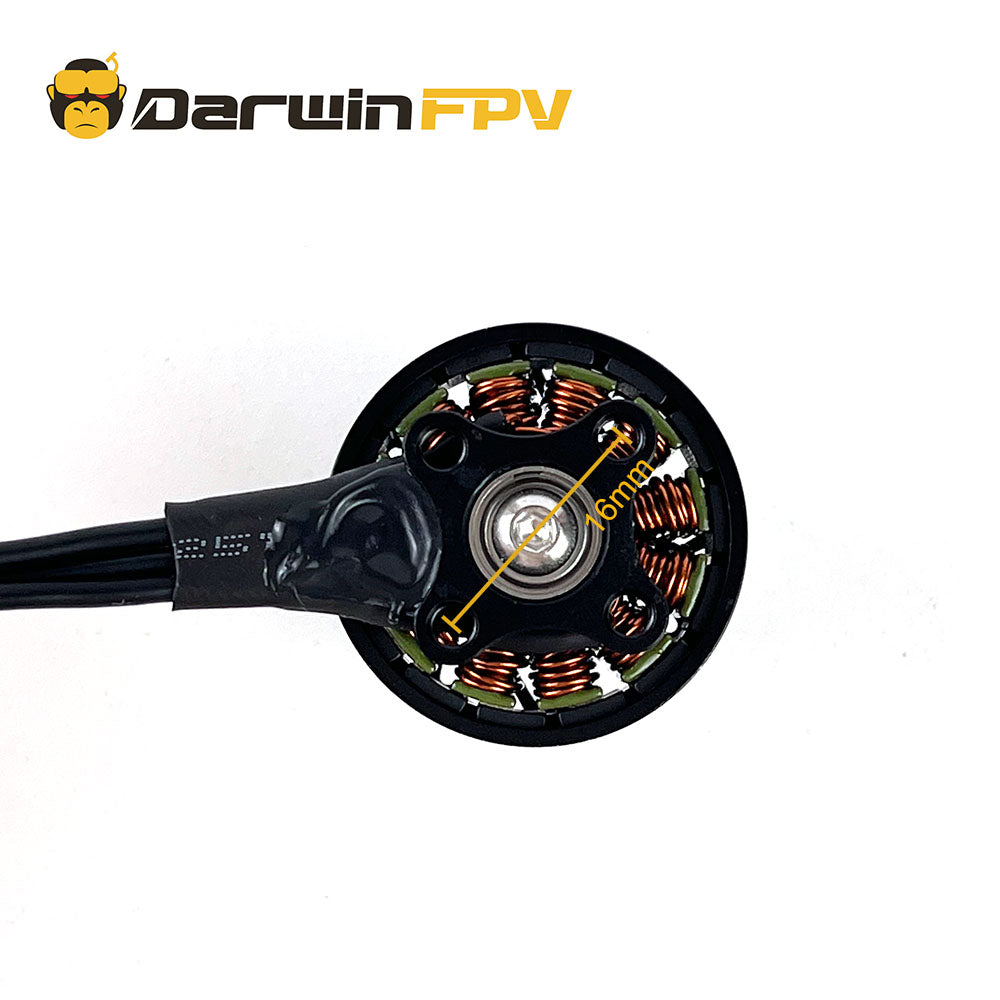

Mounting Holes :16mm*16mm（M3）

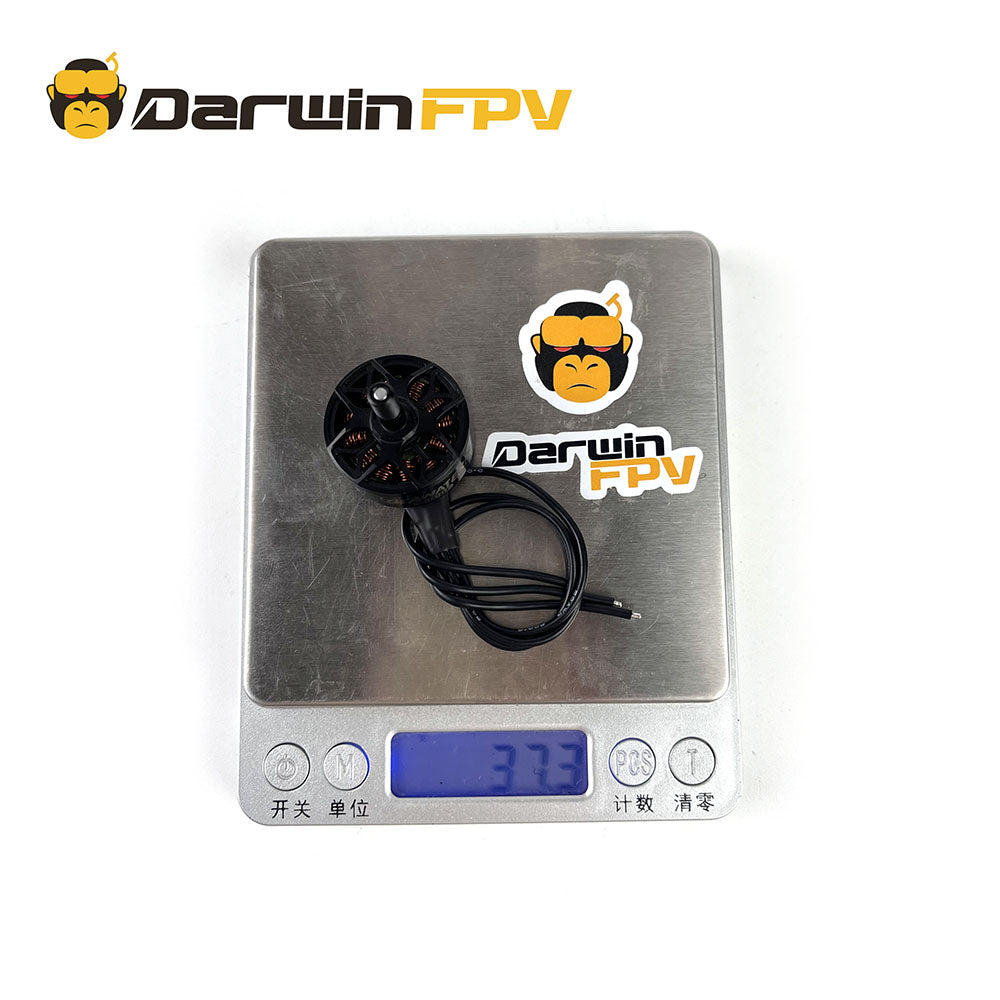

Weight(including wire) : 37.3g
Recommended battery : 4-6S
Applicable Models : 5-6“ Freestyle FPV Drone/ 6-7 Long Range FPV Drone

Load Test Data Sheet:

Packing list:

1 × 2307.5-1960KV motor
1 × M5 positive thread flange anti-slip nut (black, thickness 6.8mm)
6 × M3*9‎ hexagon socket head round head 304 screws (black)
